Connected Components
WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

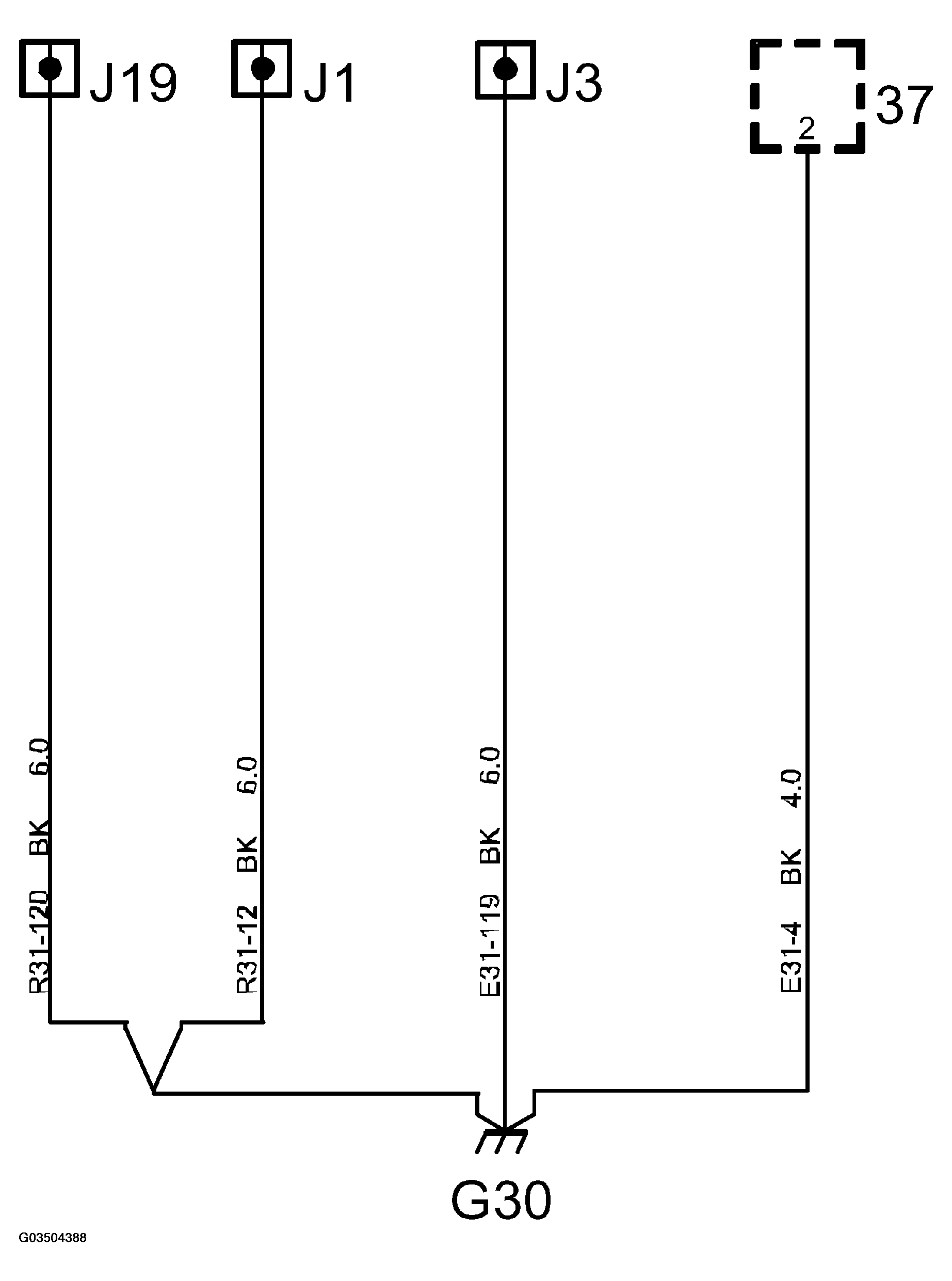

CONNECTED COMPONENTS
| 37 | Radiator fan |
Via crimp J1
CONNECTED COMPONENTS (VIA CRIMP J1)
| 547 | Control module, ABS |
Via crimp J3
CONNECTED COMPONENTS (VIA CRIMP J3)
| 11FL | Left dipped beam bulb |
| 12FL | Left main beam bulb |
| 13FL | Left parking light bulb |
| 27FL | Front left direction indicator bulb |
| 66FL | Left headlamp wiper motor |
| 85FL | Extra left fog light bulb |
| 119FL | Left side reversing light bulb |
| 195 | Washer fluid level switch |
| 228b | Filament monitor, front lamps |
| 234FL | Left side marker light bulb |
| 280FL | Left headlamp beam adjustment motor |
| 421 | Parking heater connection, diesel |
| 596 | Filament control module |
Via crimp J19
CONNECTED COMPONENTS (VIA CRIMP J19)
| 382 | TC-ABS control module |
