To Remove

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

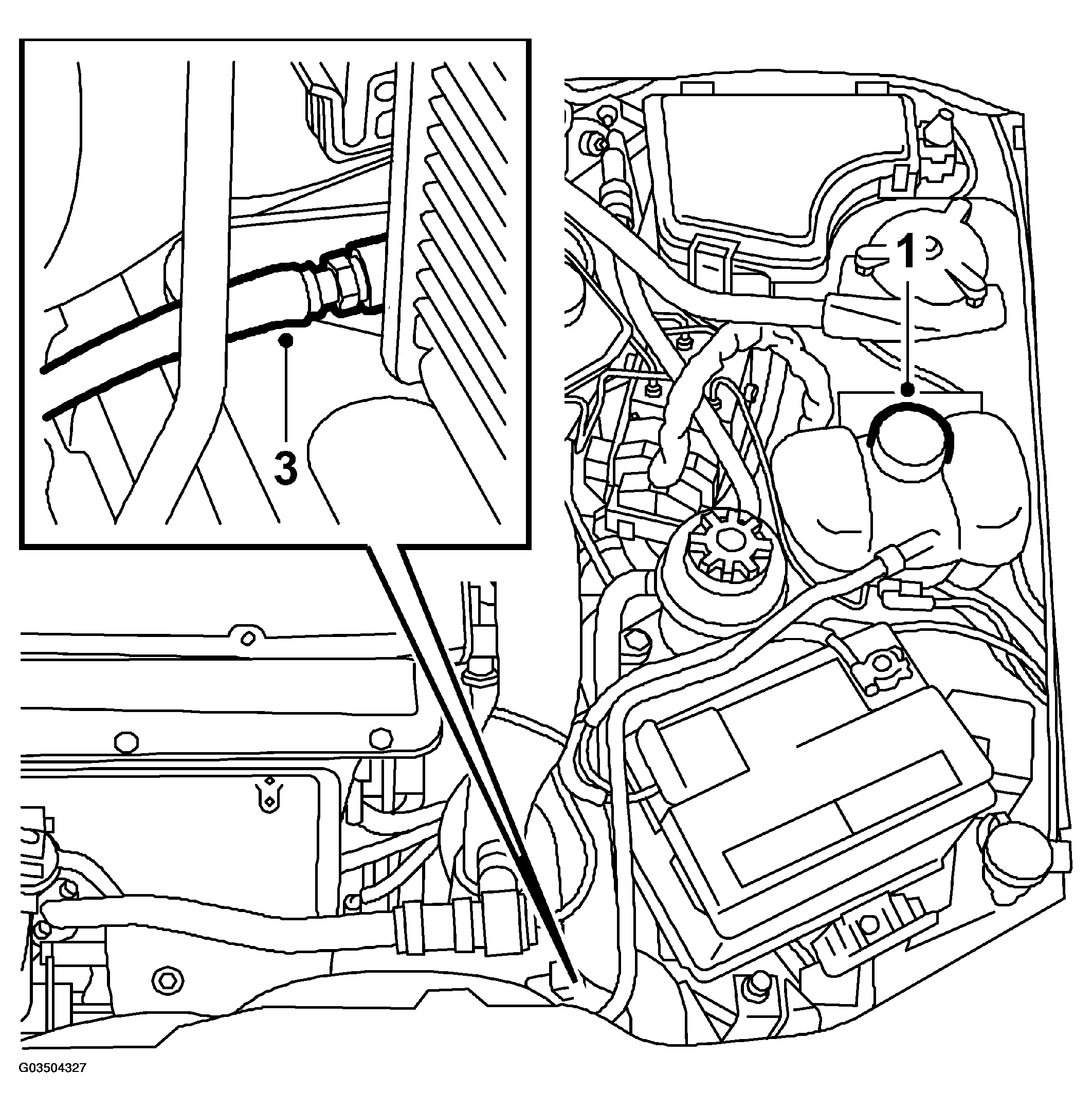

Fig 1: Illustration For Steps 1-3
G03504327
  1. Open the expansion tank's pressure cap to release system pressure.
  2. Raise the car.
  3. Drain the coolant by connecting a hose and opening the drain plug. Collect the coolant in a suitable receptacle.
  4. Check that the cooling system's drain plug is closed and lower the car to the floor.
  5. Remove the cover over the throttle body.

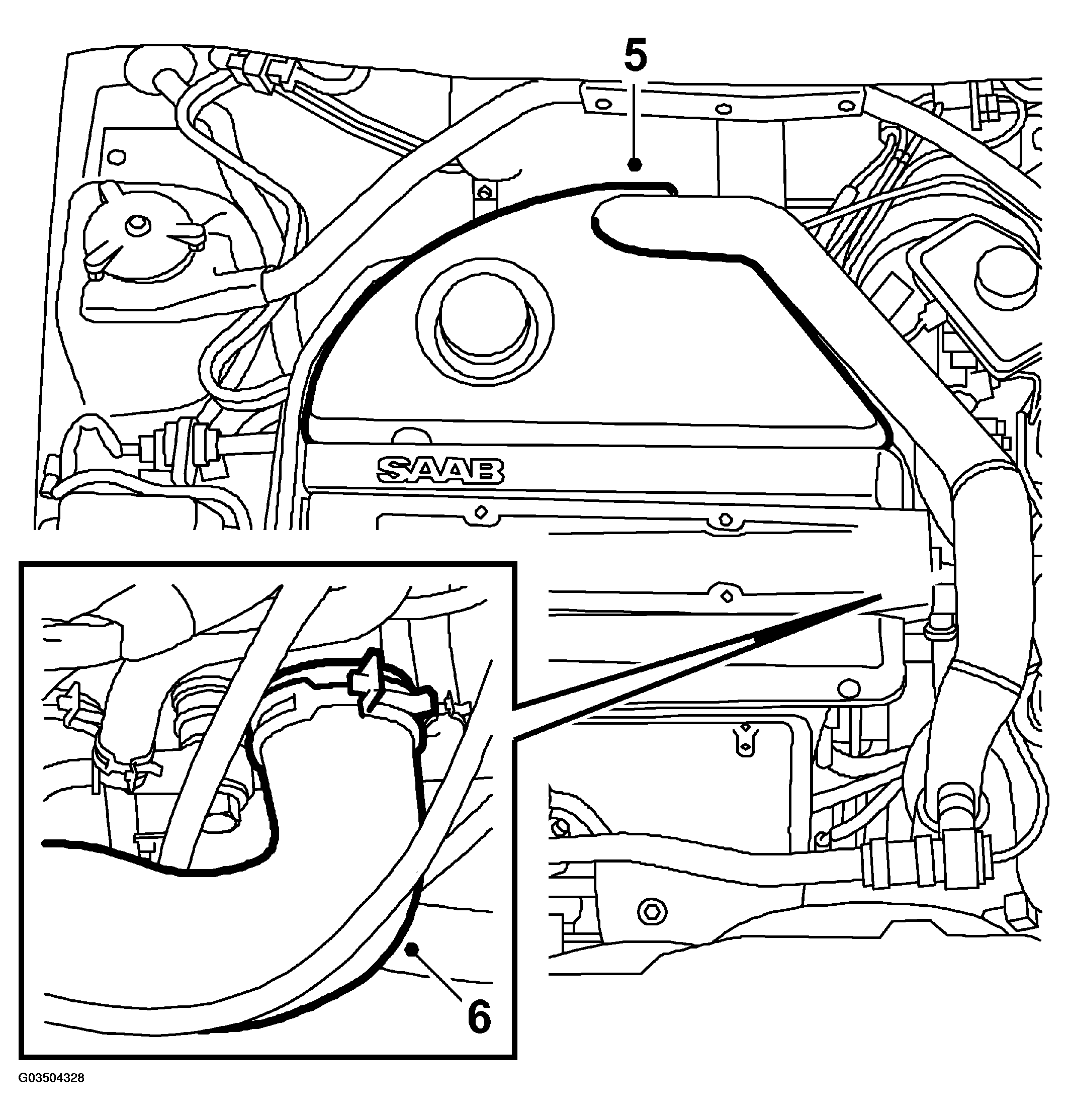

    Fig 2: Illustration For Steps 5-6
    G03504328
  6. Undo the hose clip on the upper radiator hose by the thermostat housing and bend the hose aside.
  7. Remove the mounting for the coolant pipe by the thermostat housing.

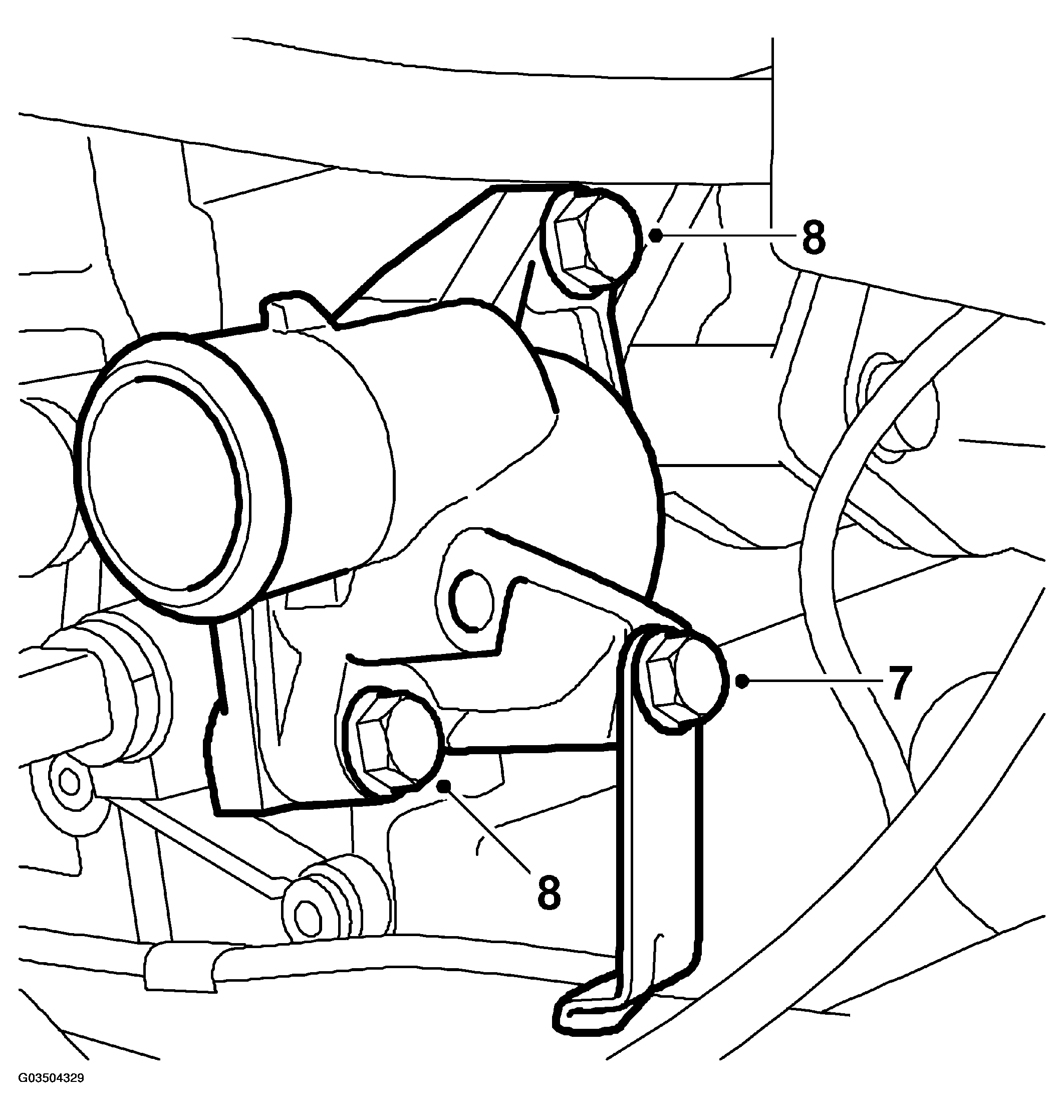

    Fig 3: Illustration For Steps 7-8
    G03504329
  8. Undo the upper and lower thermostat housing screws.
  9. Remove the thermostat housing and thermostat.

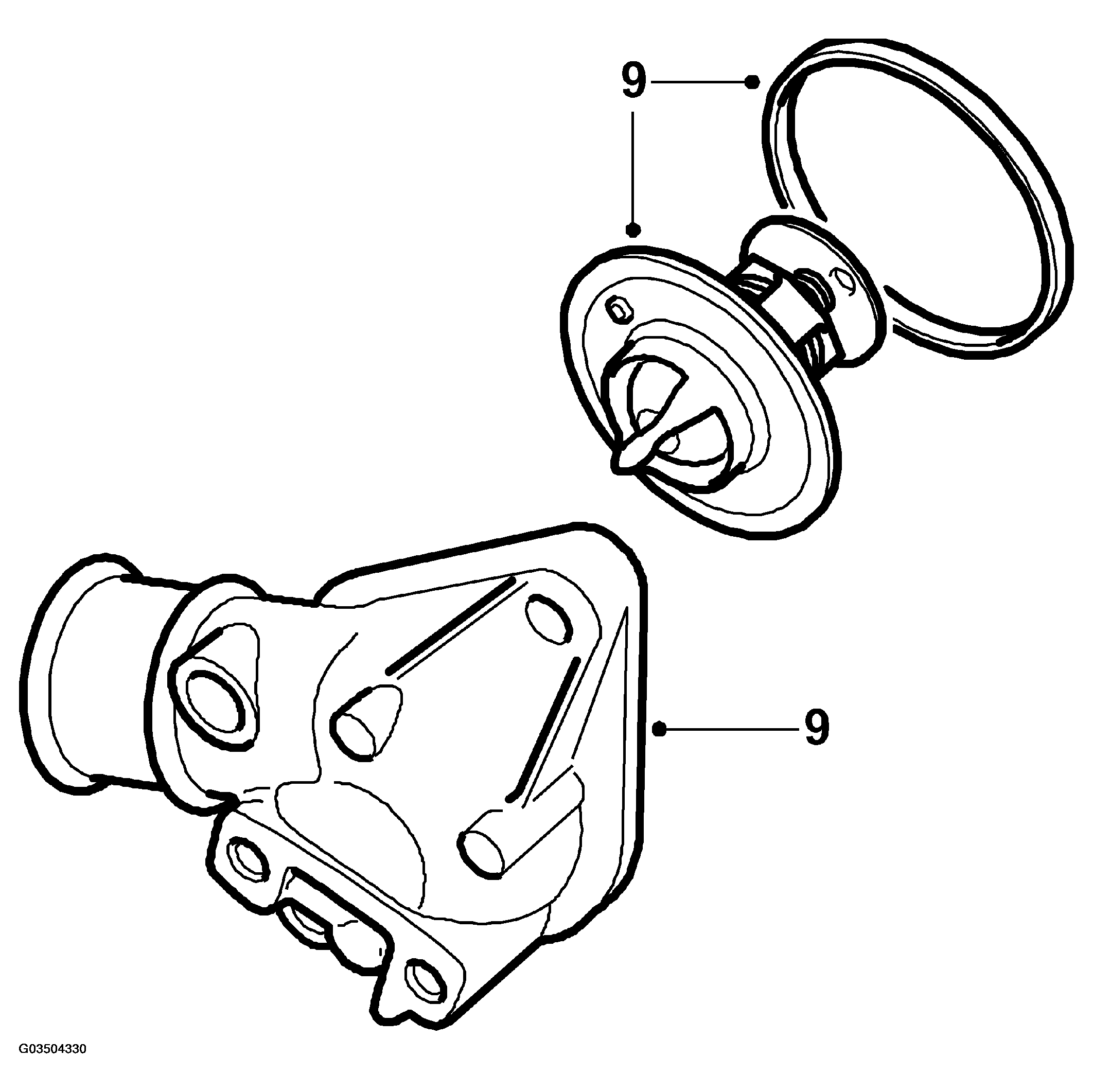

    Fig 4: Illustration For Step 9
    G03504330
