To Remove

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

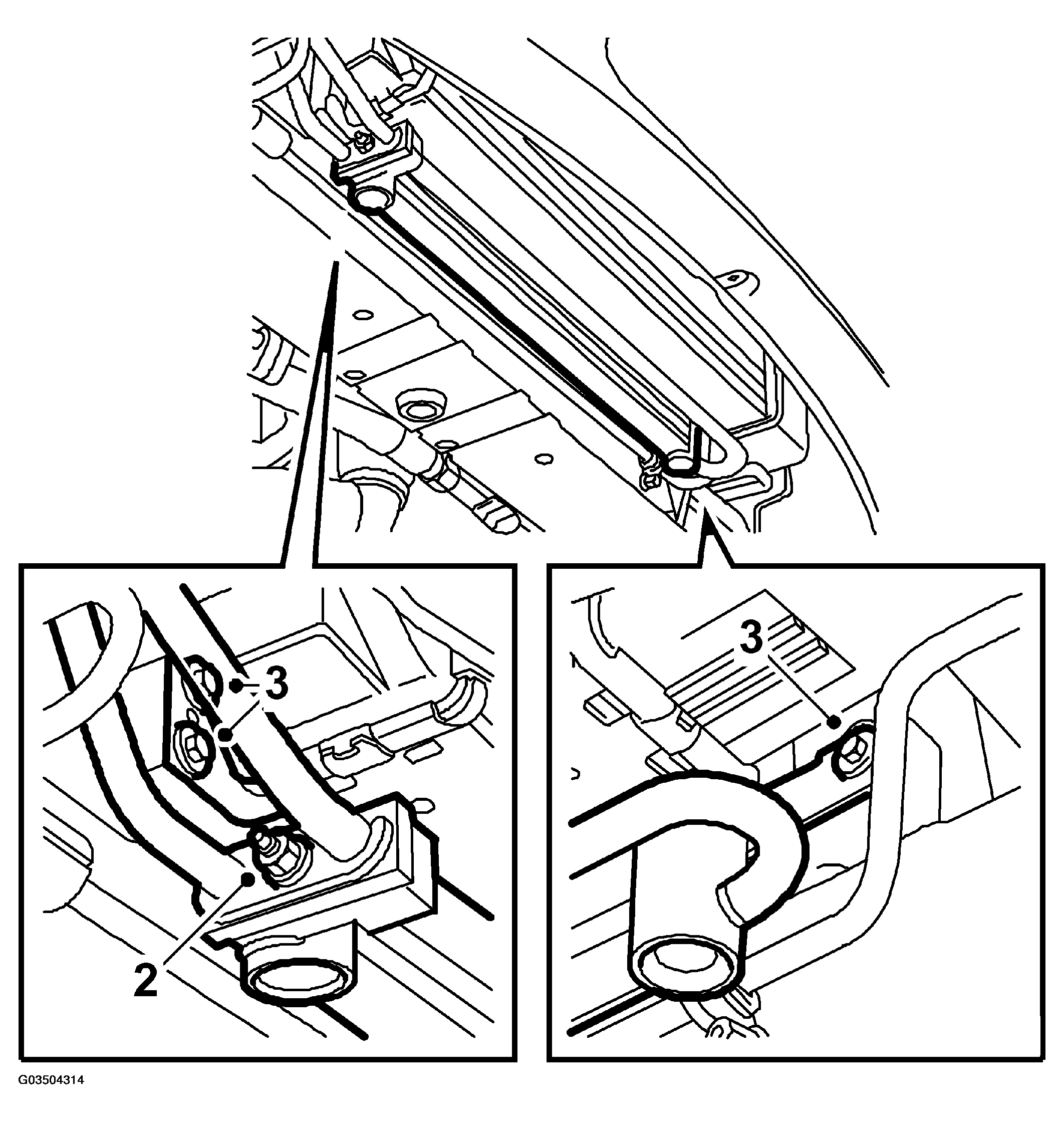

Fig 1: Illustration For Steps 2-3
G03504314
  1. Raise the car and remove the spoiler shields.
  2. Undo the pipe connections (PAD connection).
  3. Undo the oil cooler retaining bolts and remove the oil cooler.

    Collect the oil in a receptacle.
