To Fit

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

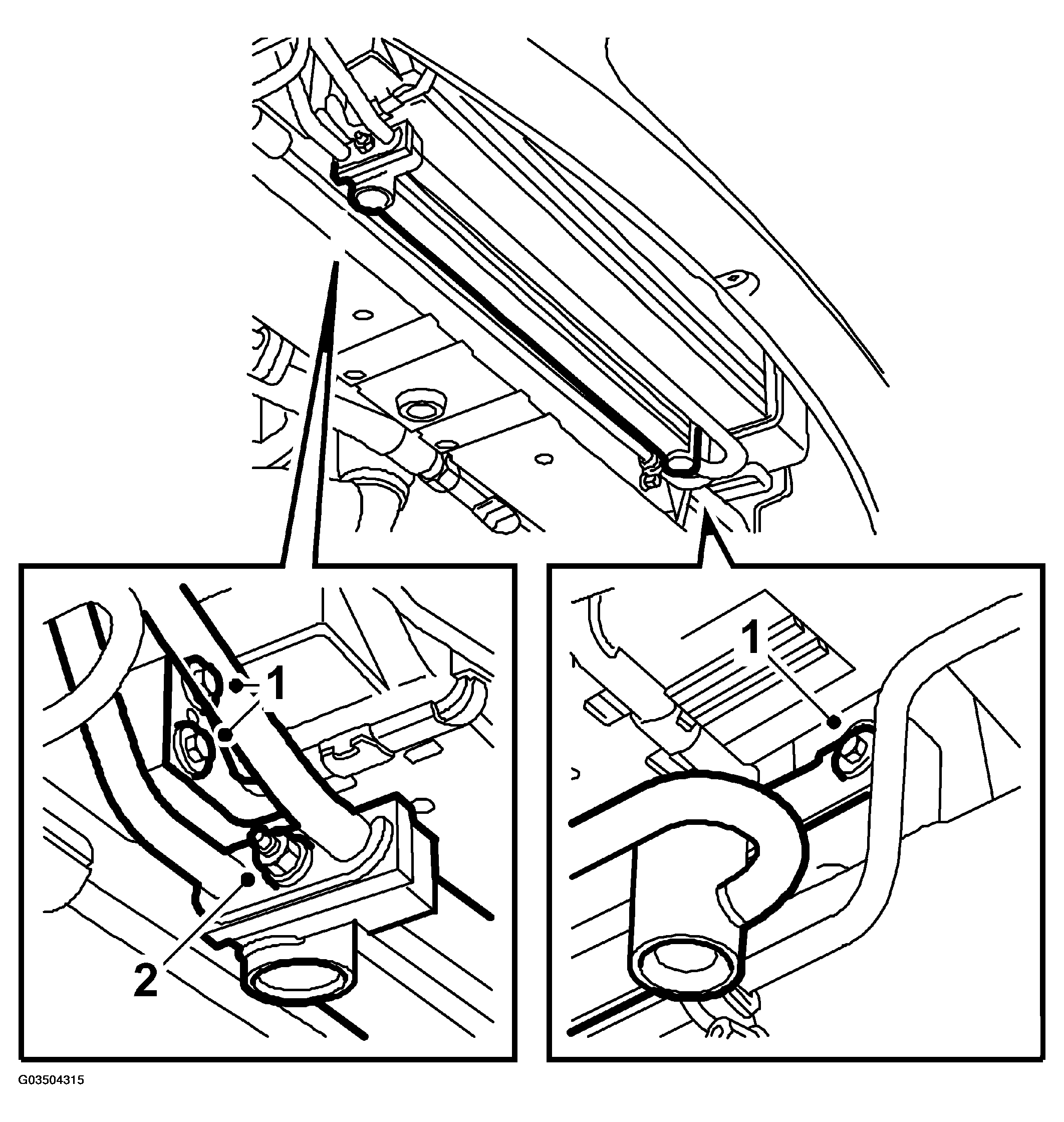

Fig 1: Illustration For Steps 1-2
G03504315
  1. Offer up the oil cooler into position and tighten the bolts.
  2. Connect the oil pipes, using new seals.
  3. Fit the spoiler shields and lower the car to the floor.
  4. Check the oil level and top up as necessary.

    Start the engine and check for oil leakage.
