To Remove

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

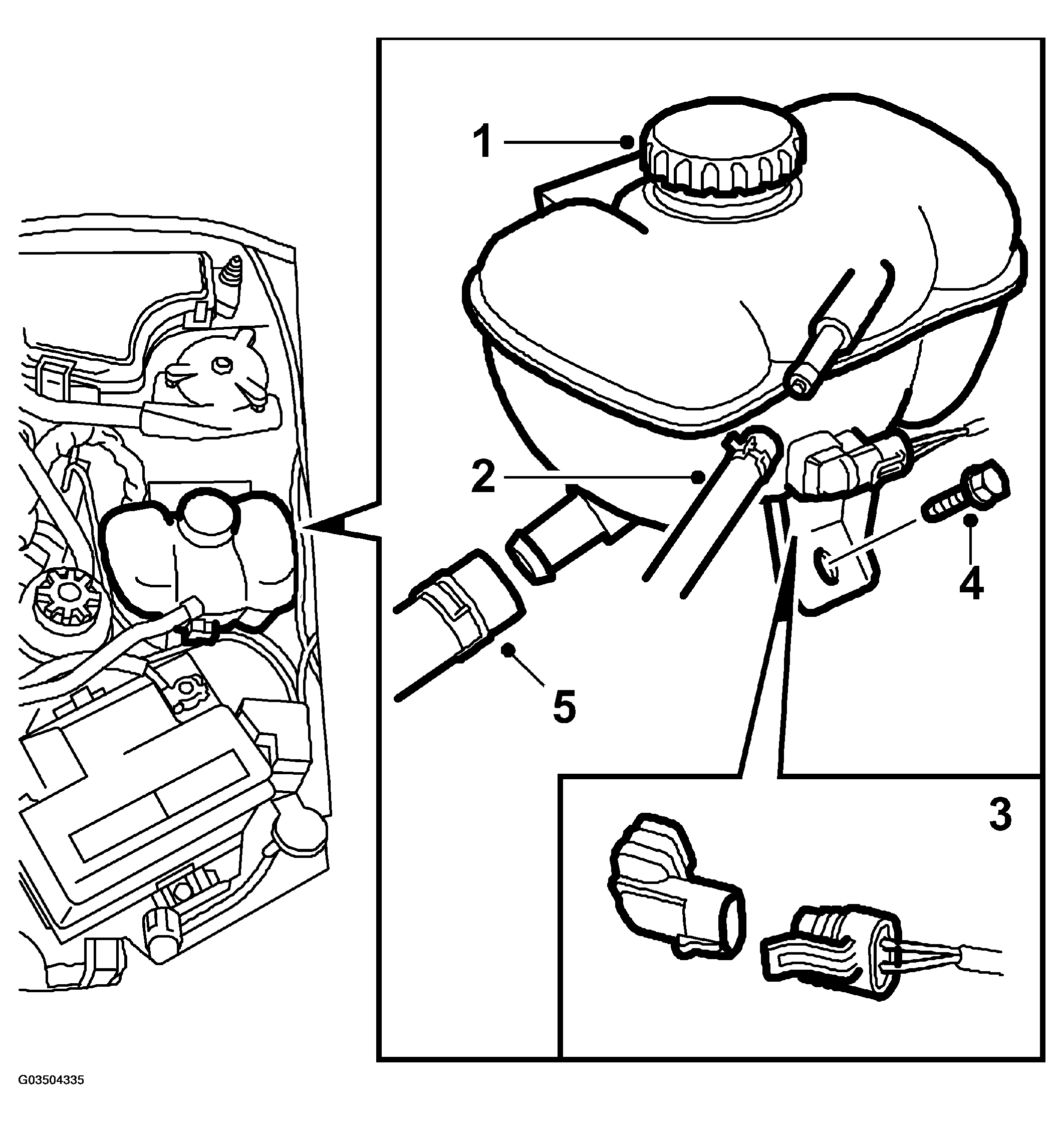

Fig 1: Illustration For Steps 1-2-3-4-5
G03504335
  1. Open the drain plug and drain the coolant. Unscrew the expansion tank filler cap to speed this up.
  2. Detach the upper radiator hose from the expansion tank.
  3. Unplug the level sensor connector.
  4. Remove the attaching bolt for the expansion tank.
  5. Lift up the expansion tank and detach the lower radiator hose.
