To Fit

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

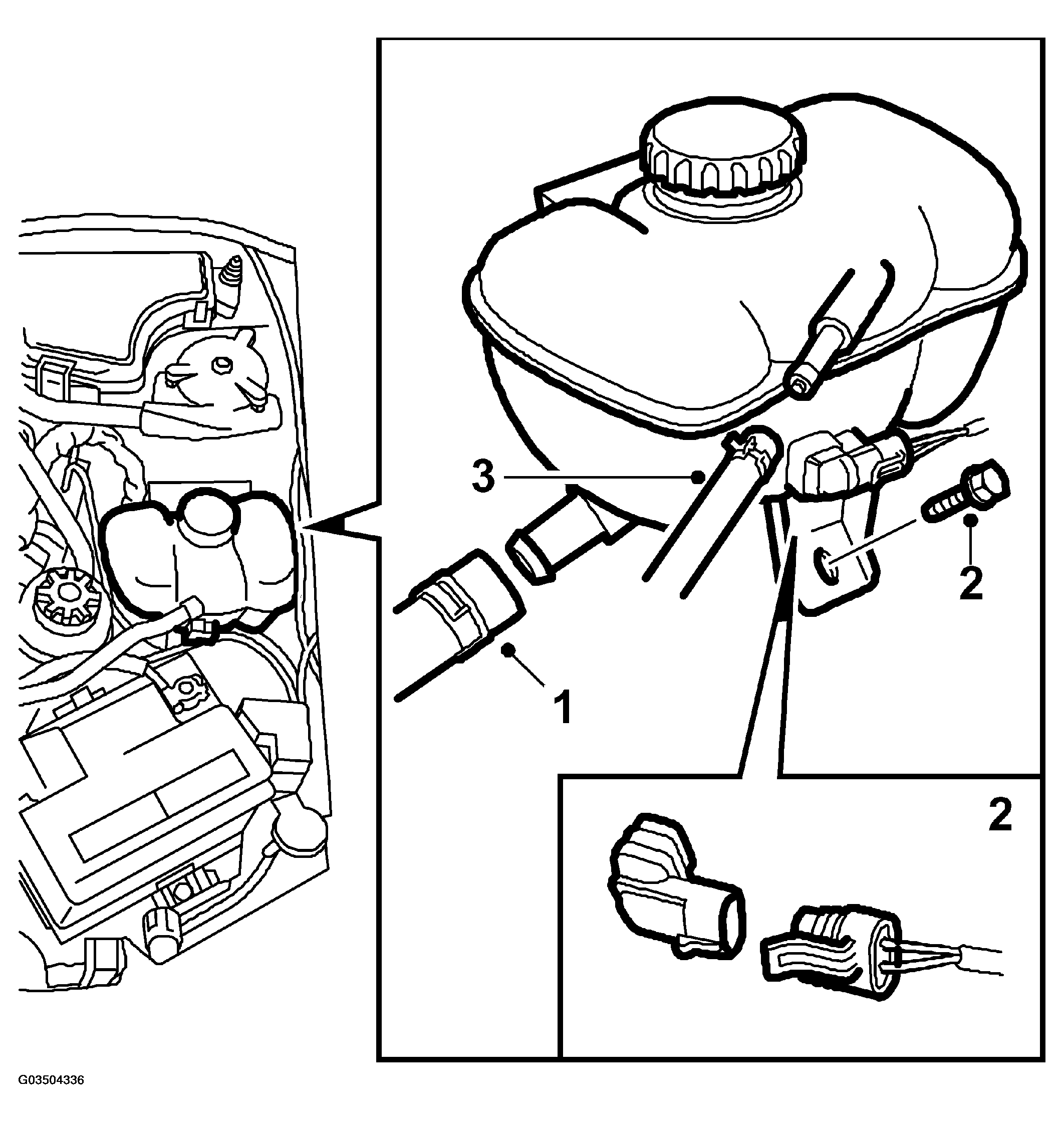

Fig 1: Illustration For Steps 1-2-3
G03504336
  1. Attach the lower radiator hose and refit the expansion tank.
  2. Refit the expansion tank retaining bolt and plug in the level sensor connector (certain variants).
  3. Attach the upper radiator hose.
  4. Make sure that the radiator drain plug is tightened. Fill up with coolant and check the system for leaks.
  5. Fill up and bleed the system as follows:
    NOTE: A/C and ACC must be OFF.
    • Fill the system up to the MAX level, fit the pressure cap, start the engine and warm it up at varying RPM until the radiator fan starts.
    • Switch off the engine and top up as necessary to the MAX level.
