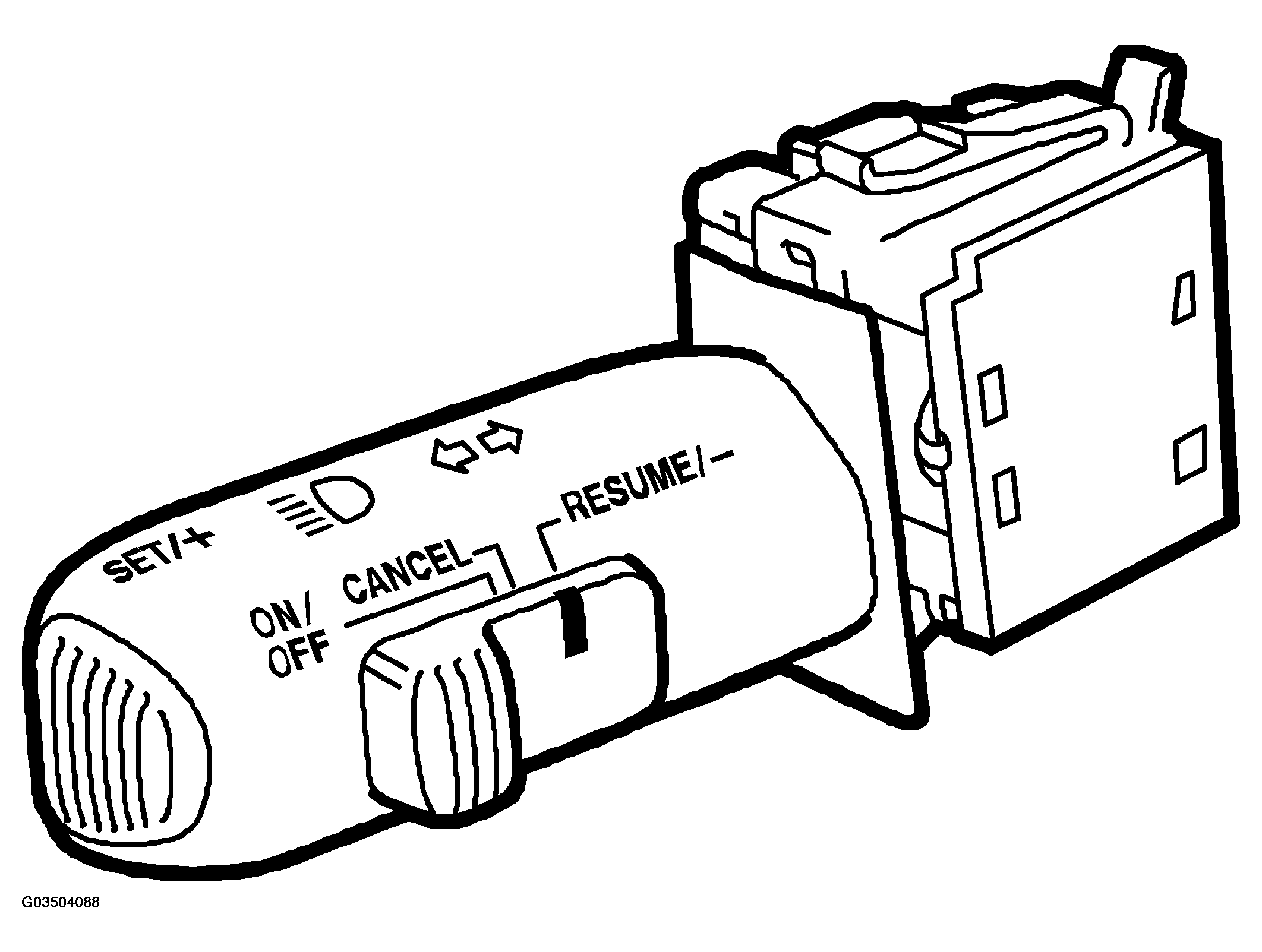

Switch, cruise control (141)
WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
TECHNICAL DATA - CRUISE CONTROL SWITCH (1 OF 2)
| Location | On direction indicator stalk | |
| Power supply +54 | Pin | 7 |
TECHNICAL DATA - CRUISE CONTROL SWITCH (2 OF 2)
| From switch pin | To control module pin | Input designation in diagnostic tool | SWITCH POSITION | ||||
|---|---|---|---|---|---|---|---|
| Zero position | ON/OFF | SET/+ | RESUME/- | CANCEL | |||
| 8 | 52 | A | 0 | 1 | 0 | 0 | 0 |
| 10 | 5 | B | 0 | 1 | 1 | 0 | 1 |
| 9 | 30 | C | 0 | 1 | 0 | 1 | 1 |
0 = open = OFF = 0V
1 = closed = ON = B+
