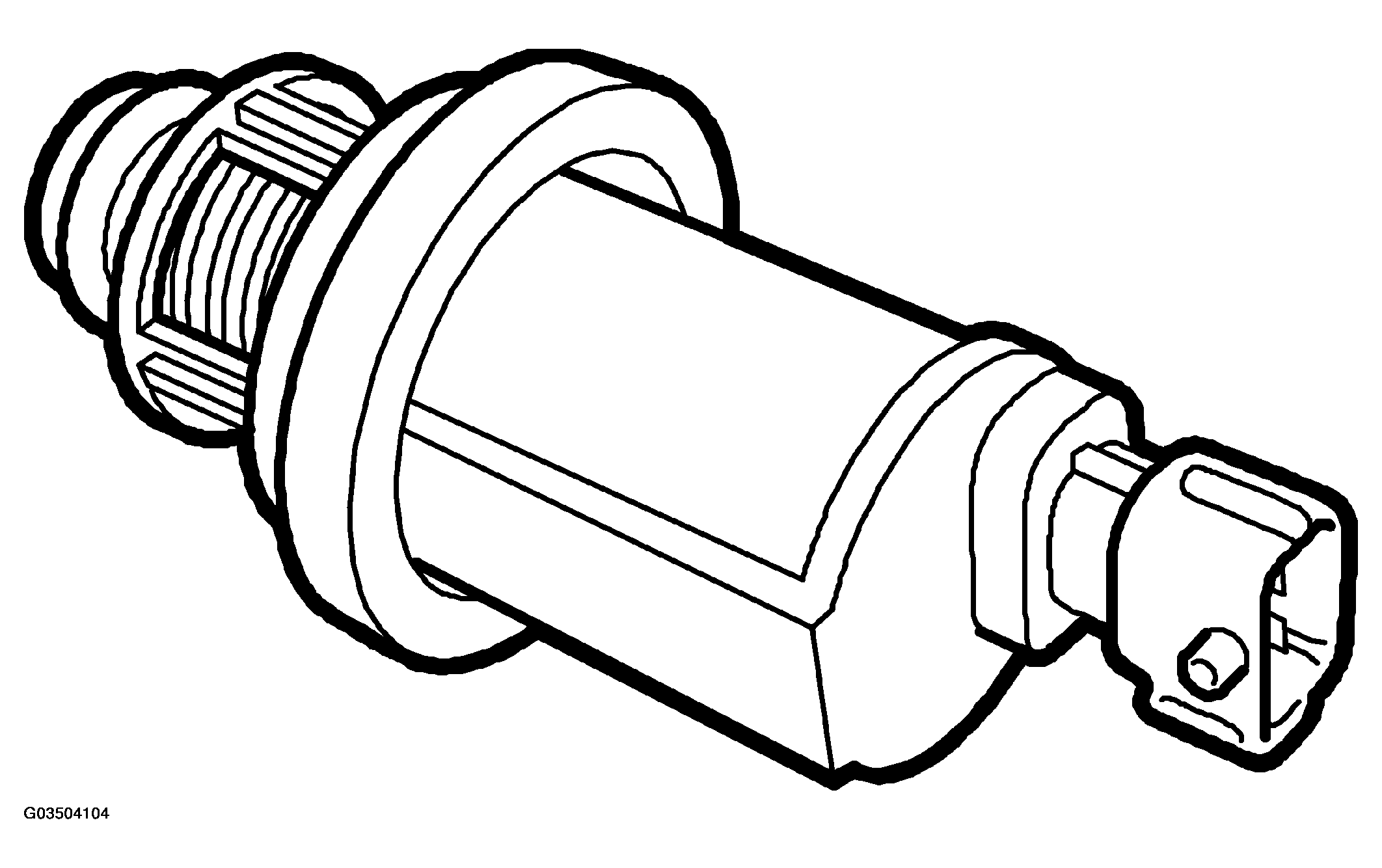

Solenoid valve, EVAP shut-off (588)
WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of SAAB-SCANIA OF AMERICA, INC. TECHNICAL DATA - EVAP SHUT-OFF SOLENOID VALVE
| Location |
|
On vent pipe in rear right wheel housing |
| Type |
|
Pierburg |
| Characteristics |
|
Zero current open |
| Resistance at 20 °C (68°F) |
Ohms |
24.5+/-1.5 |
| Power supply |
12 V |
|
