Relay, limp-home solenoid (640)
WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of SAAB-SCANIA OF AMERICA, INC. TECHNICAL DATA - RELAY, LIMP-HOME SOLENOID

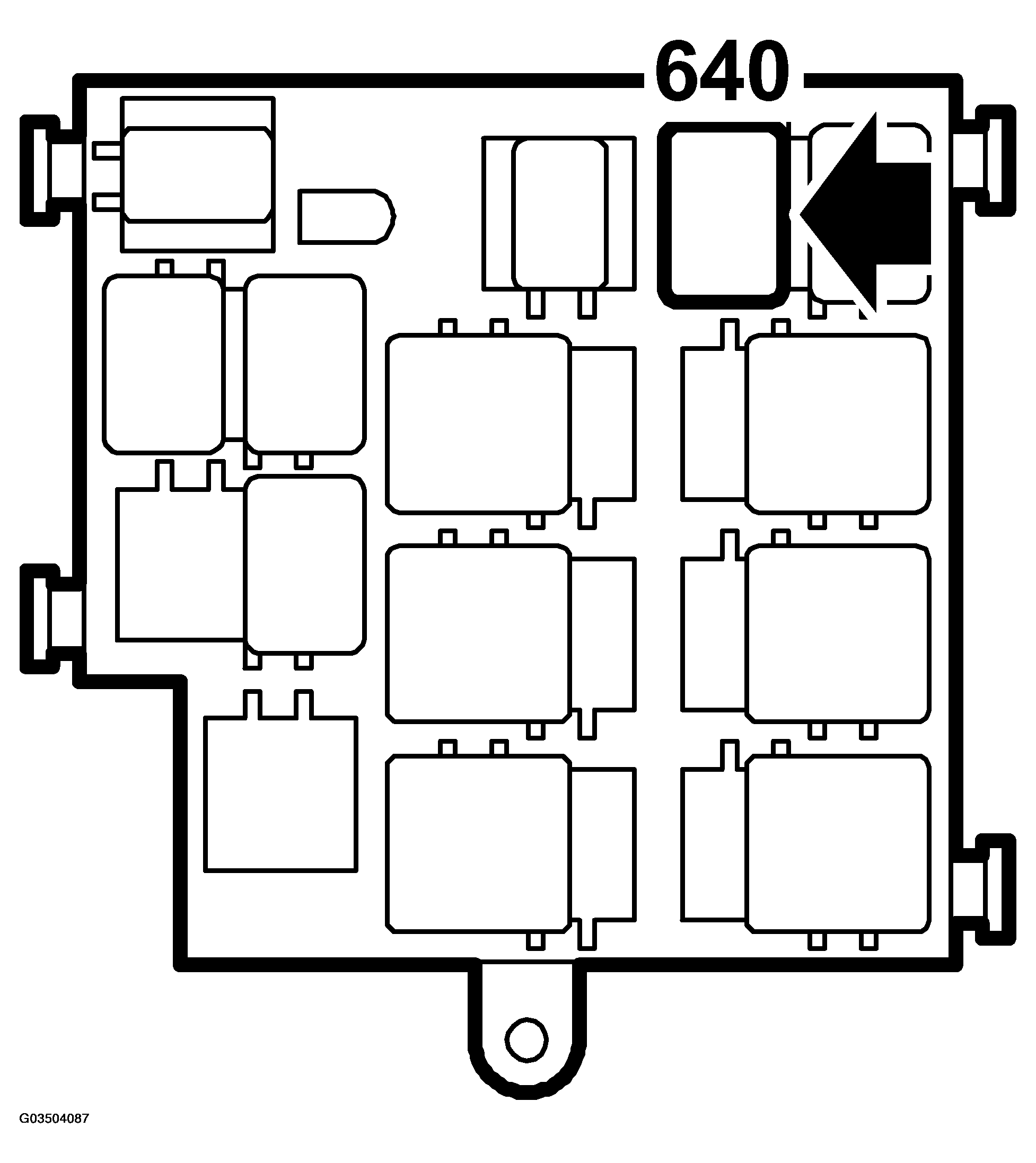

| Location |
|
In dashboard main relay board |
| Type |
|
Single pole closing |
| Resistance, winding at 20 °C (68°F) |
Ohms |
75+/-5 |
| Nominal control voltage |
V |
2 |
| Rated current |
A |
16 |
