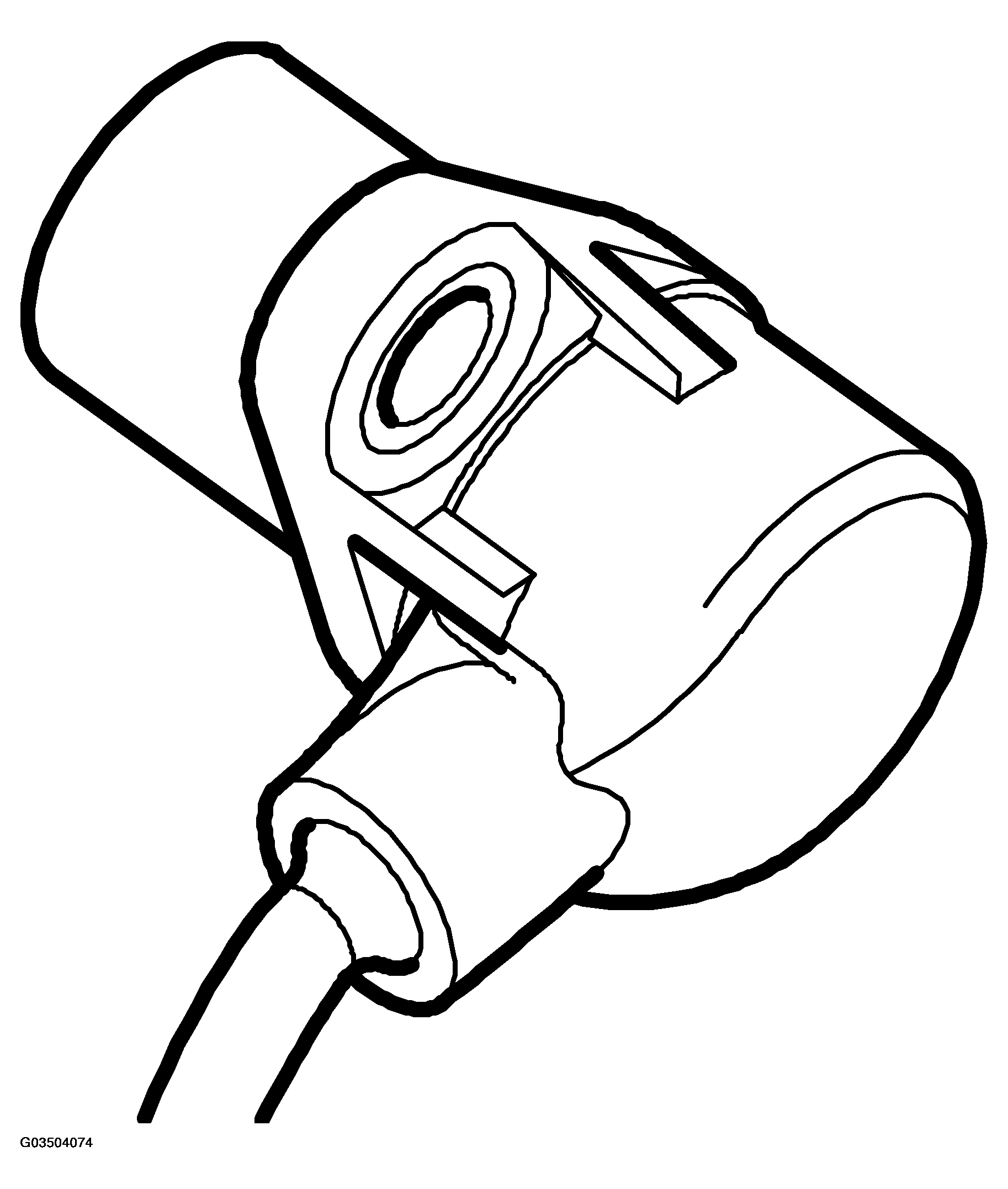

Crankshaft position sensor (345)
WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of SAAB-SCANIA OF AMERICA, INC. TECHNICAL DATA - CRANKSHAFT POSITION SENSOR
| Location |
|
Mounted in crankcase wall |
| Type |
|
Inductive sensor |
| Resistance, pins 1-2 at 20°C (68 °F) |
Ohms |
860+/-90 |
| Slotted ring |
Number of ribs |
58 (60-2) |
| Distance sensor-slotted ring |
mm |
0.4-1.3 |
