Brake pedal switch (134)

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

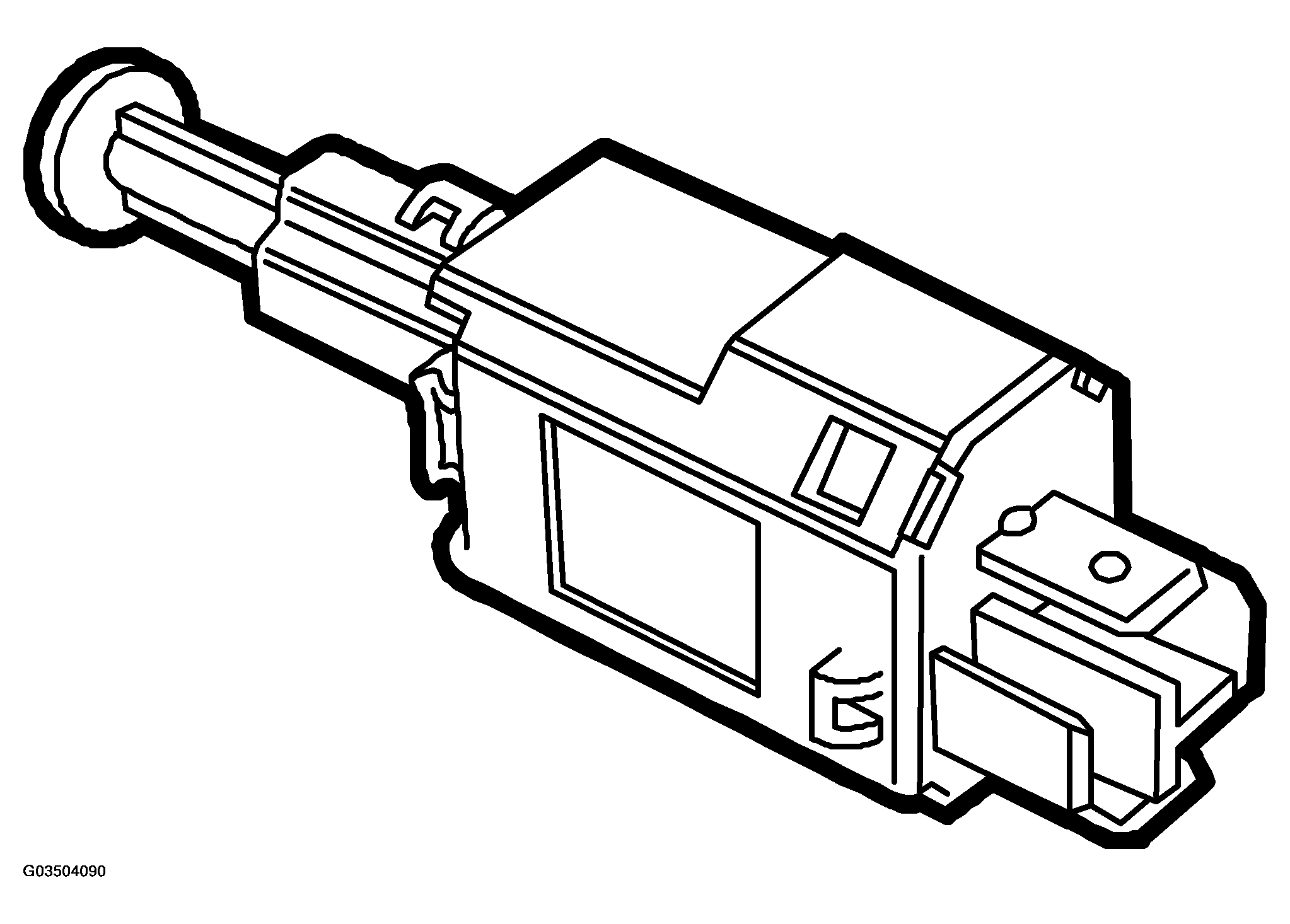

Fig 1: Identifying Brake Pedal Switch

Courtesy of SAAB-SCANIA OF AMERICA, INC.

TECHNICAL DATA - BRAKE PEDAL SWITCH

Location	On pedal bracket
Characteristics, pins 1--2	Normally closed when pedal released
