Turbo speed limitation

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

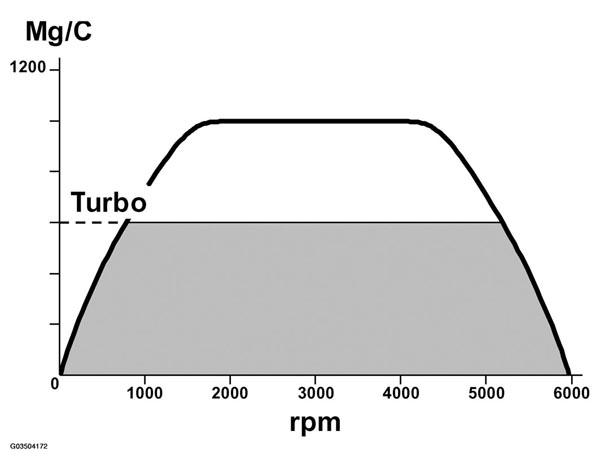

Fig 1: Turbo Speed Limitation Graph
G03504172Courtesy of SAAB-SCANIA OF AMERICA, INC.

The maximum permissible air mass/combustion is limited at low atmospheric pressures to protect the turbo from overrevving.

The function depends on the atmospheric pressure and engine speed.
