DTC P1652: Main Relay Coil Circuit (Open/Short to Ground): Notes

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

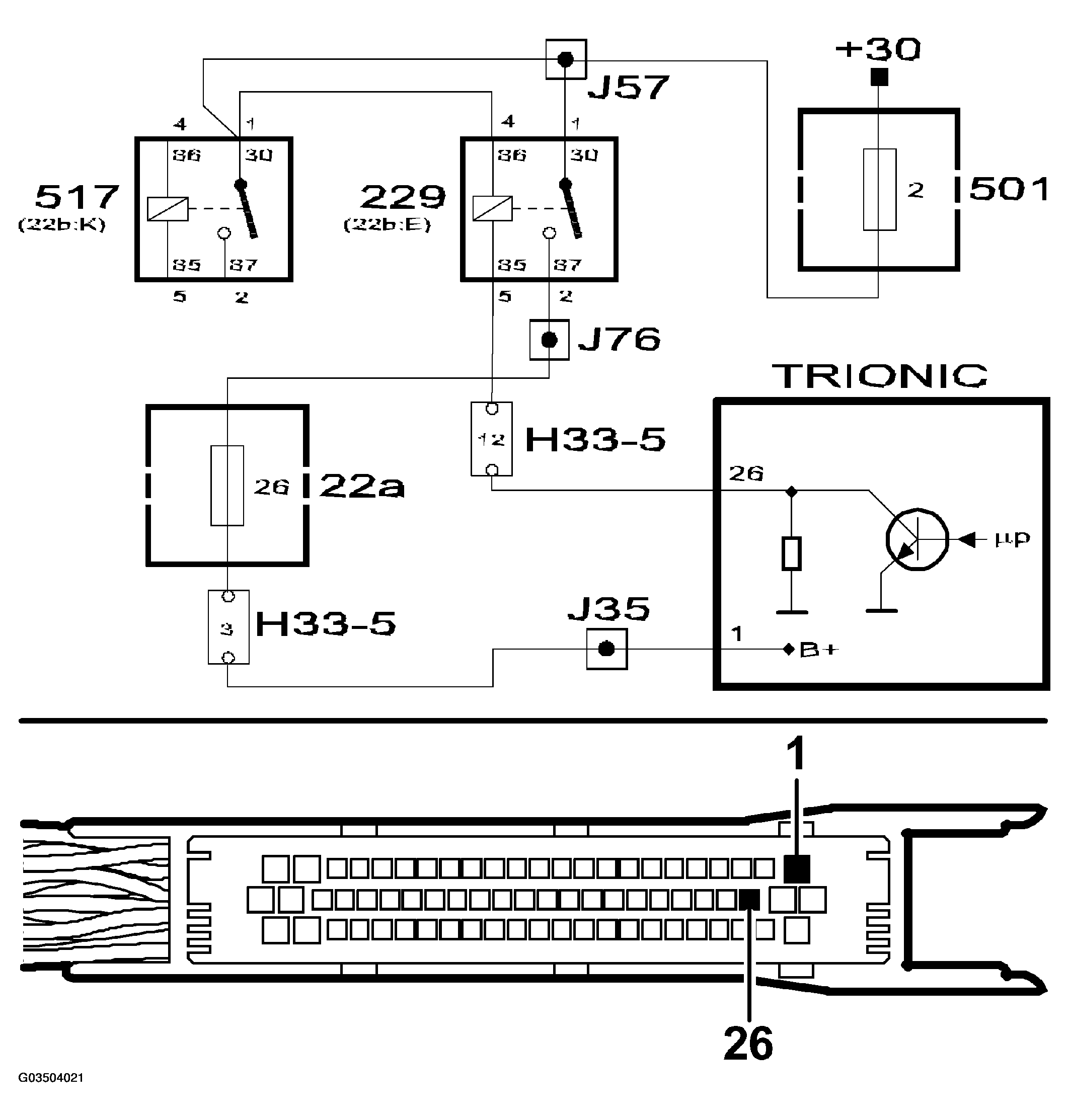

Fig 1: Identifying Main Relay Coil Circuit Diagram - Open/Short To Ground
G03504021Courtesy of SAAB-SCANIA OF AMERICA, INC.
