DTC P1493: EVAP Tank pressure sensor Value too high in depressurized state at the same time as the fuel level sensor has reported a fault: Notes

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

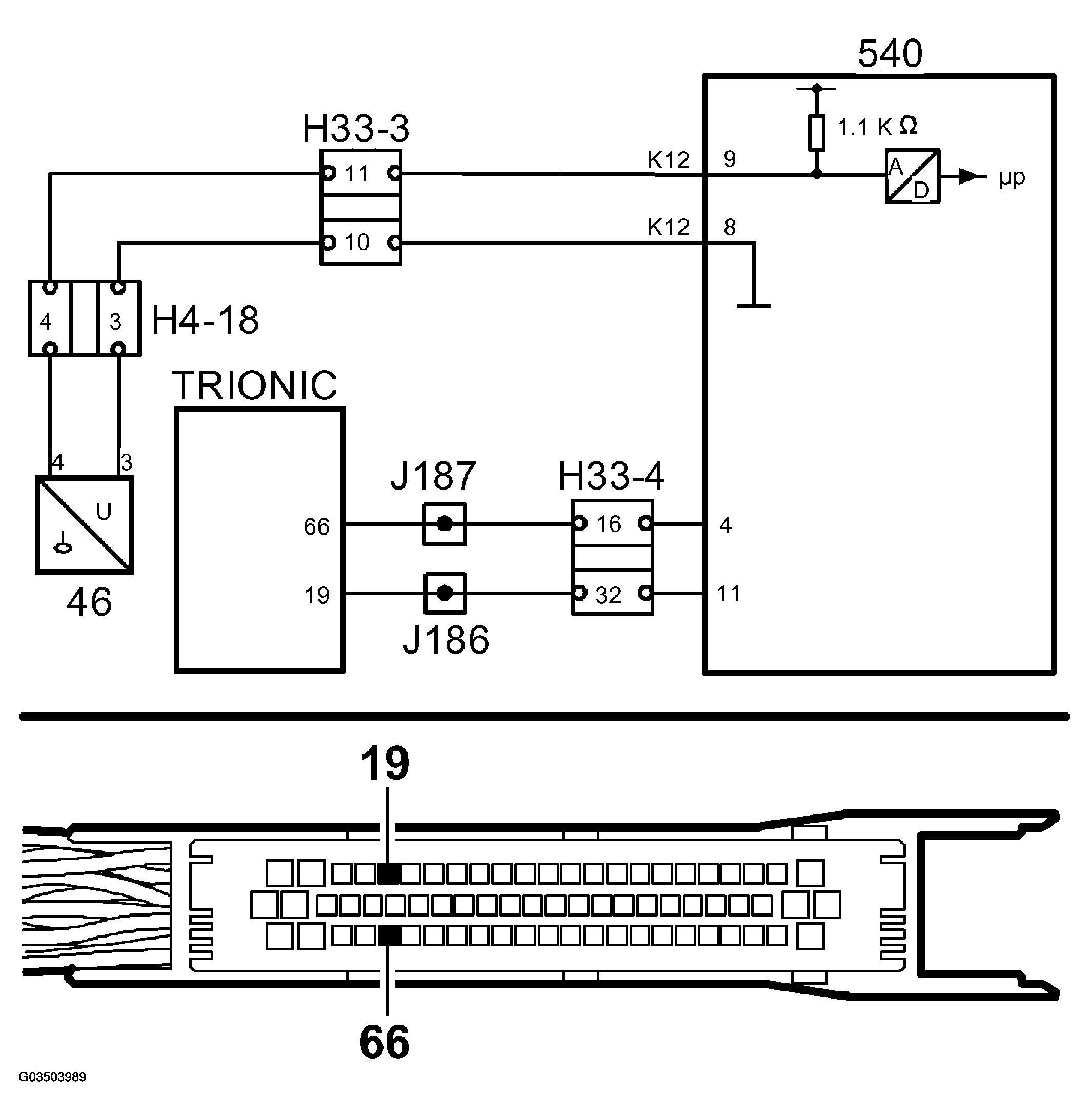

Fig 1: Identifying Circuit Diagram (EVAP Tank Pressure Sensor Value Too High In Depressurized State)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

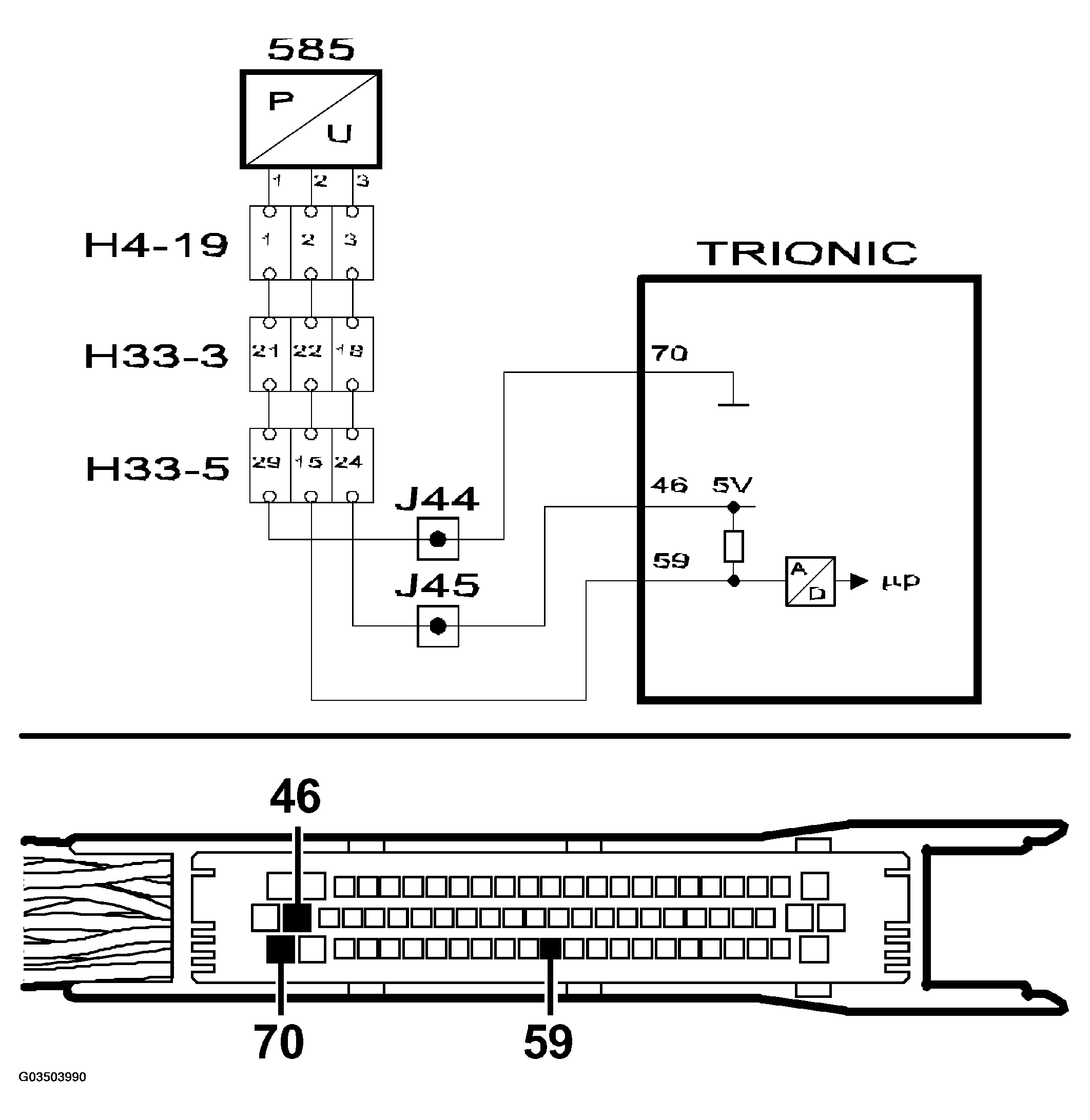

Fig 2: Identifying Circuit Diagram (EVAP Tank Pressure Sensor Value Too High In Depressurized State)

Courtesy of SAAB-SCANIA OF AMERICA, INC.
