System reaction to a fault:

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

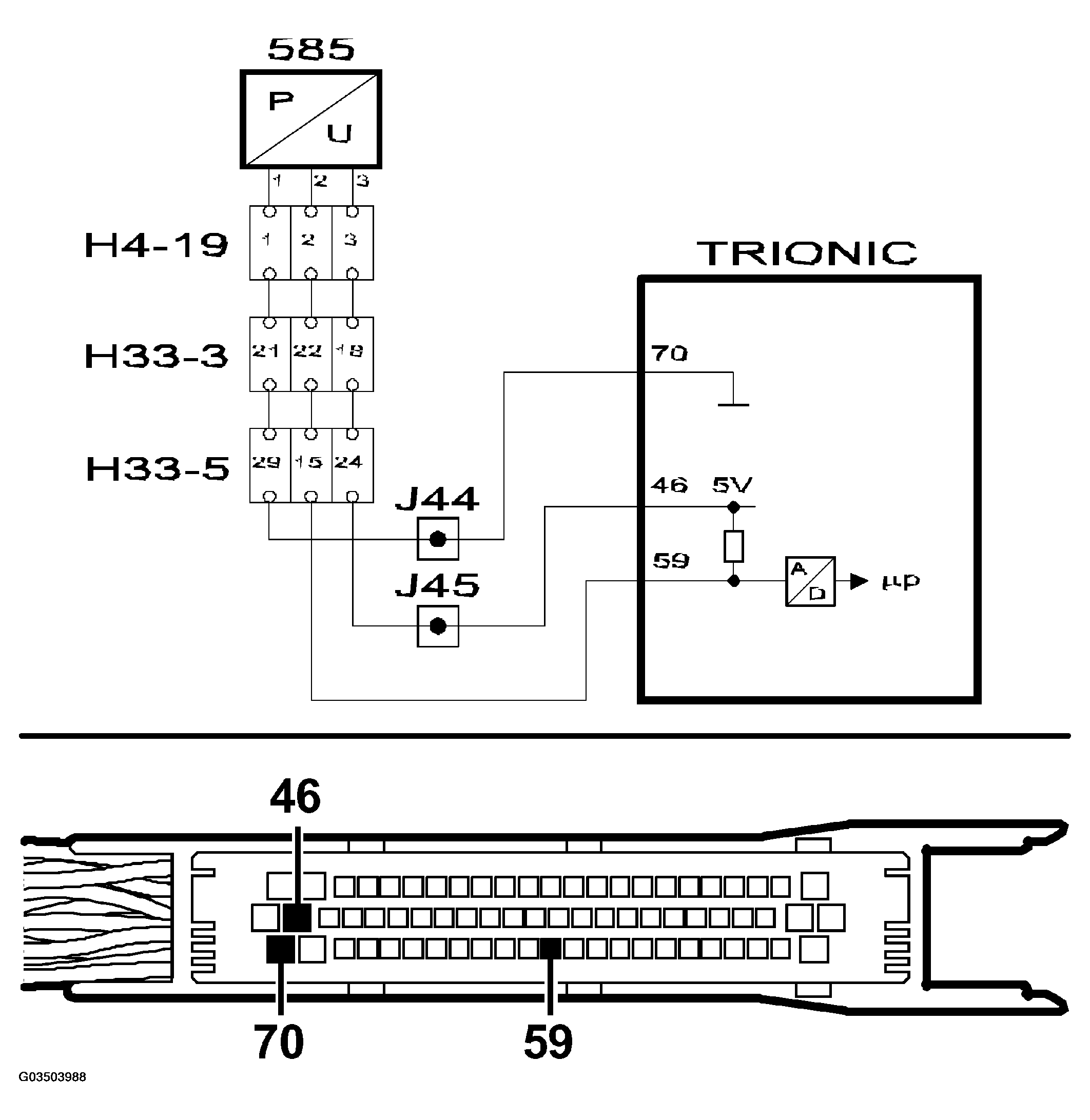

Fig 1: Identifying Circuit Diagram (EVAP Tank Pressure Sensor Value Too Low In Depressurized State)
G03503988Courtesy of SAAB-SCANIA OF AMERICA, INC.
