DTC P1445: Canister Close Valve Circuit (Short to B+): Notes

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

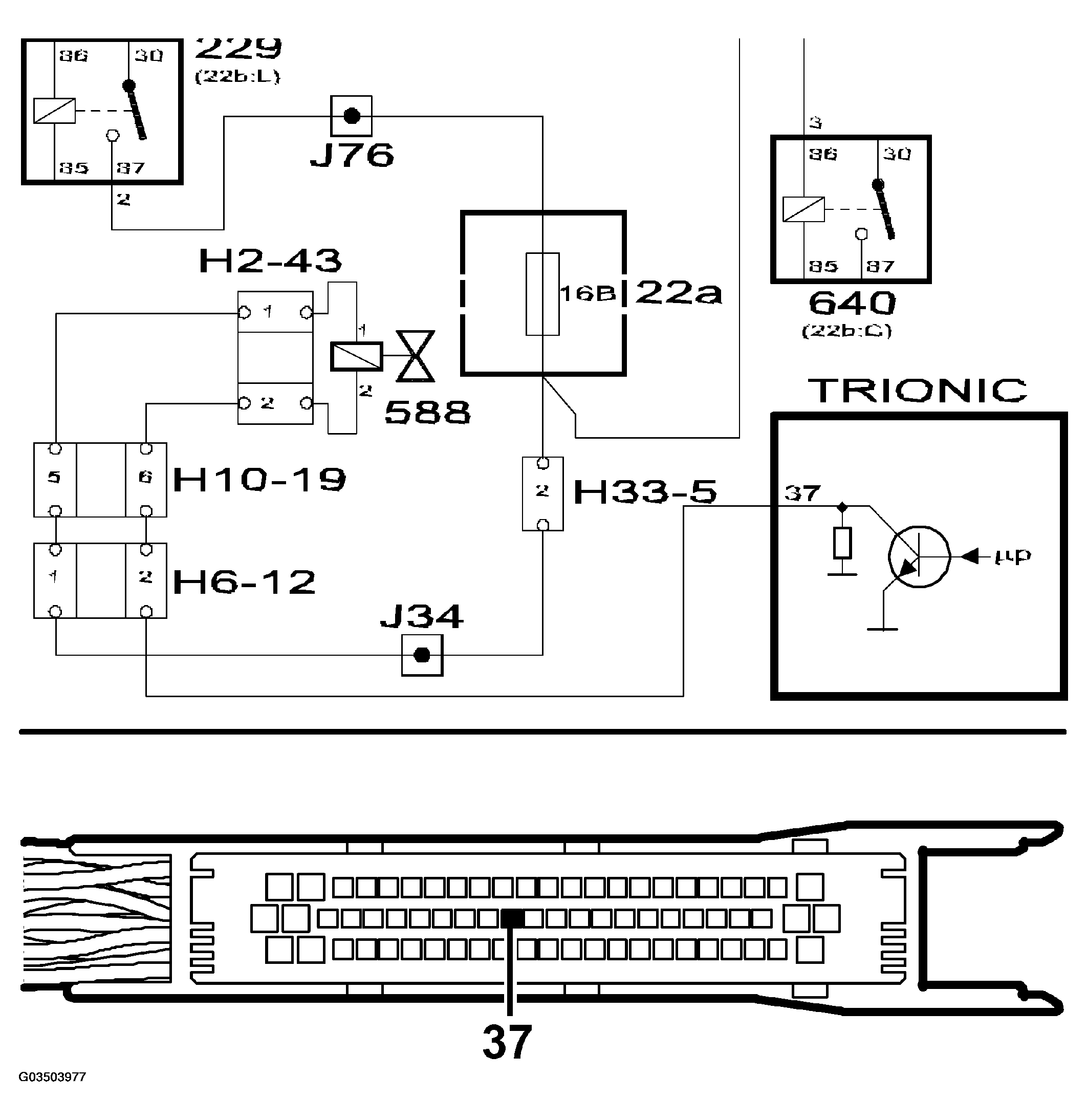

Fig 1: Identifying Canister Close Valve Circuit Diagram - Short To B+
G03503977Courtesy of SAAB-SCANIA OF AMERICA, INC.
