Cruise control not working.: Notes

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

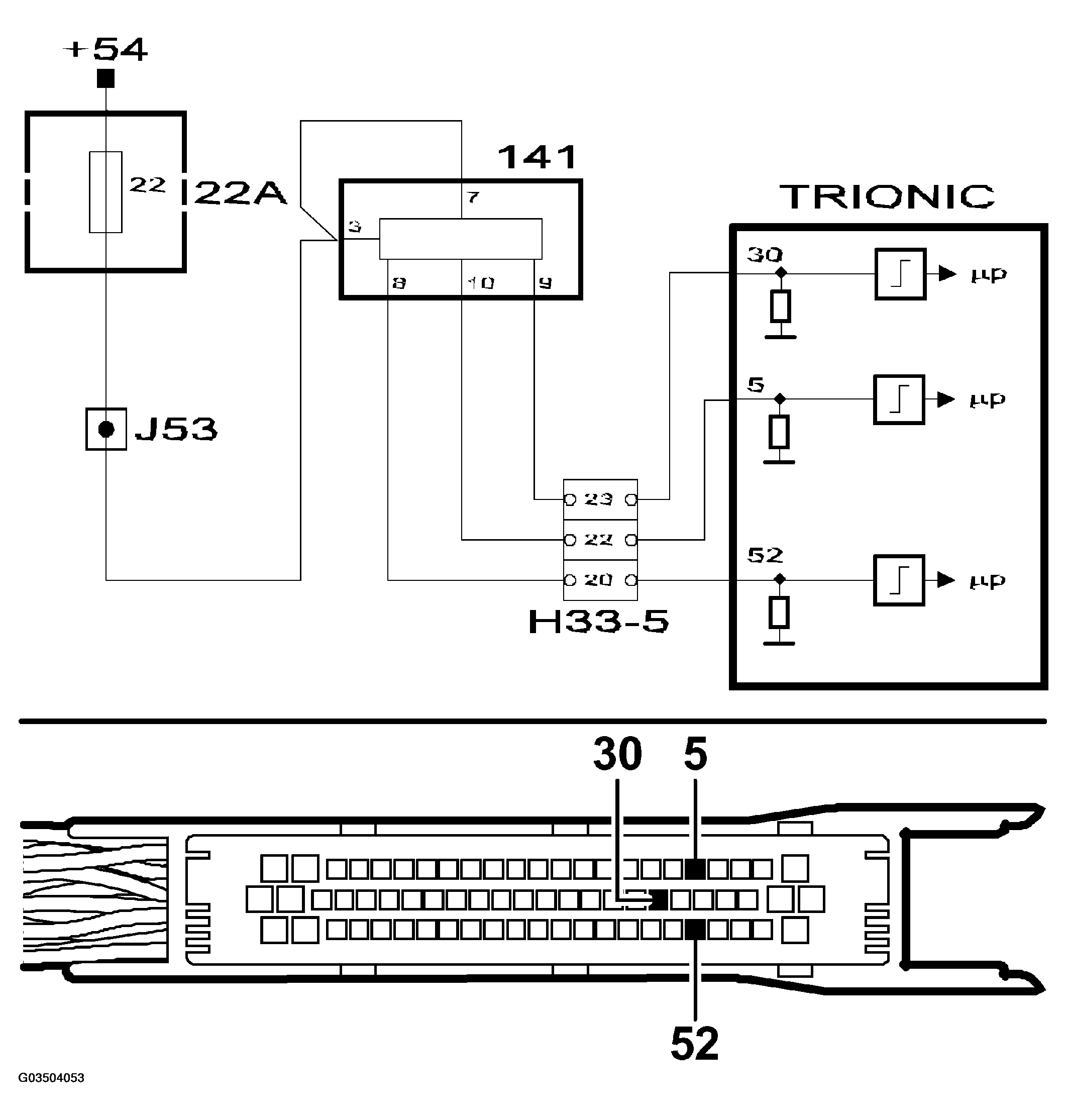

Fig 1: Circuit Diagram - Cruise Control Not Working (1 Of 2)
G03504053Courtesy of SAAB-SCANIA OF AMERICA, INC.

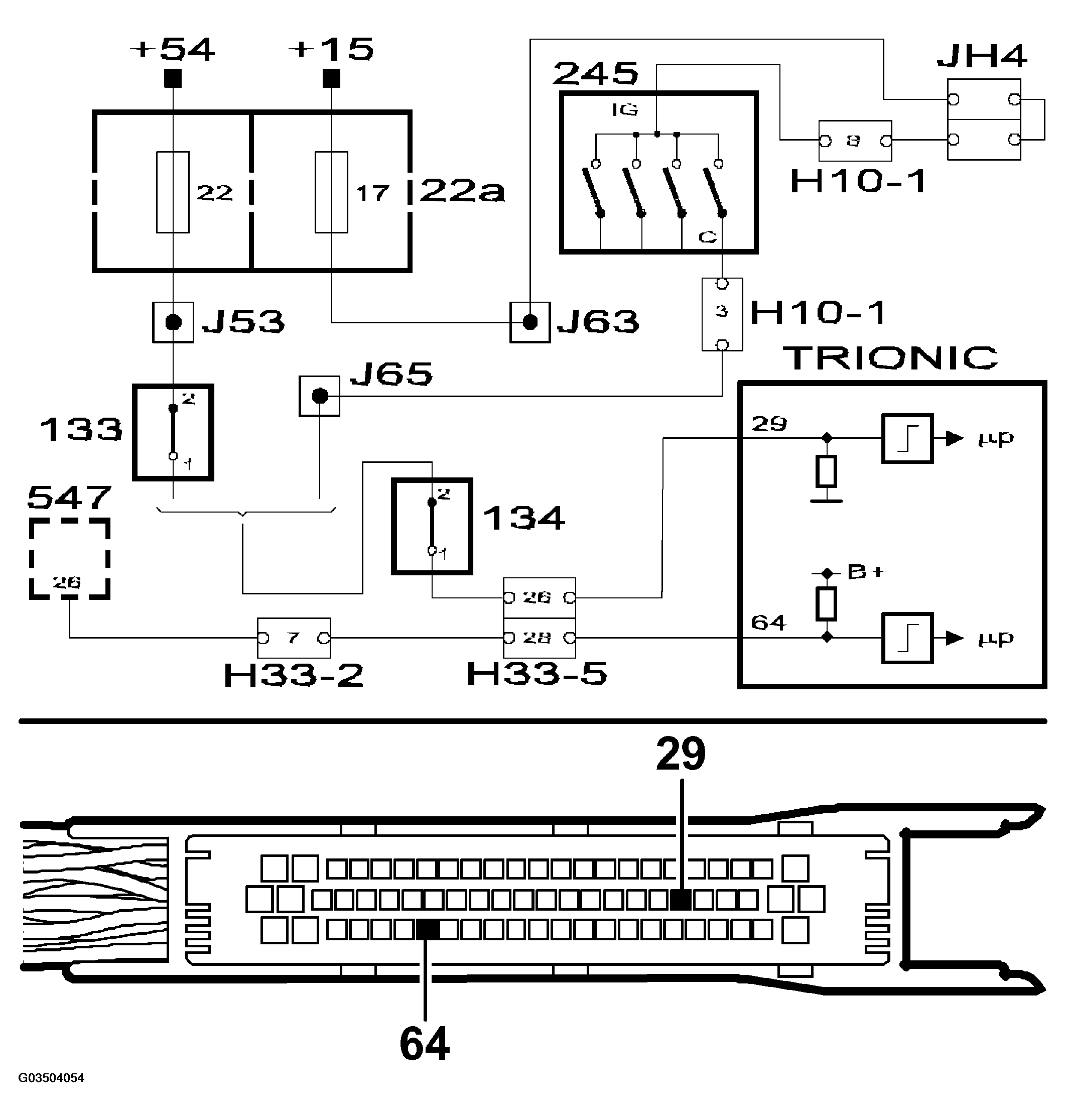

Fig 2: Circuit Diagram - Cruise Control Not Working (2 Of 2)
G03504054Courtesy of SAAB-SCANIA OF AMERICA, INC.
