Car will not start.: Notes

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

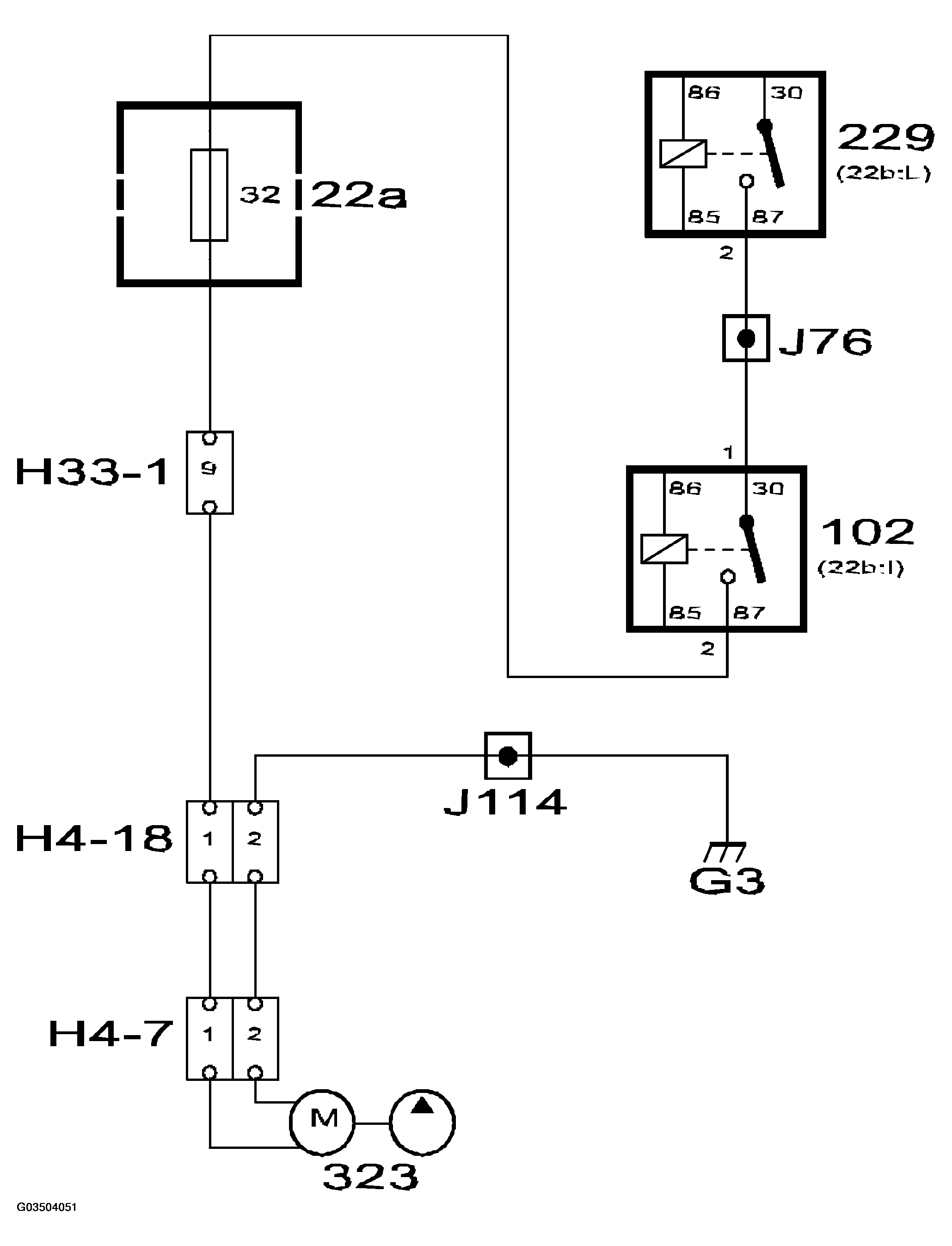

Fig 1: Circuit Diagram - Car Will Not Start
G03504051Courtesy of SAAB-SCANIA OF AMERICA, INC.
