Crimp J31, T7 engine harness

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

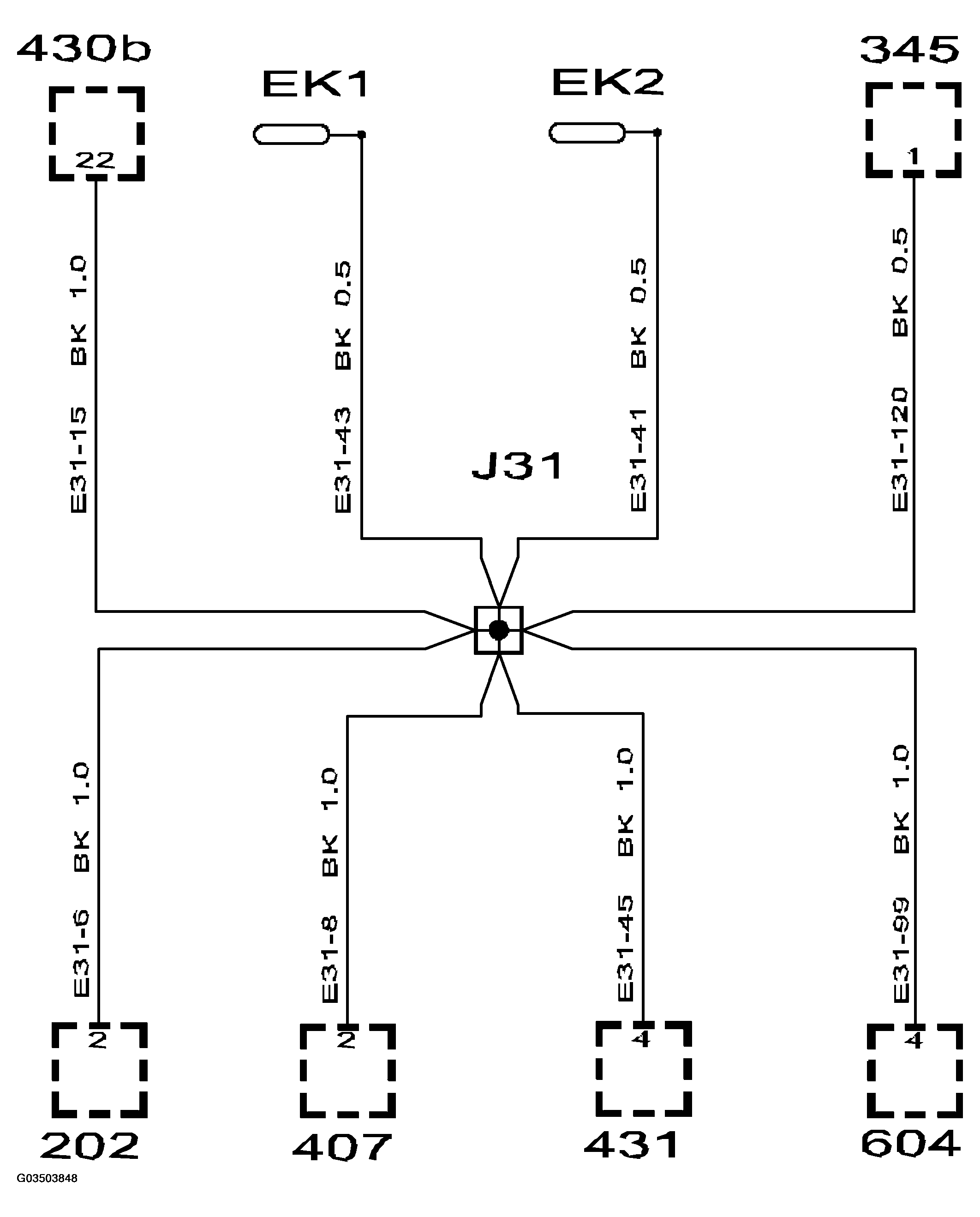

Fig 1: Identifying T7 Engine Harness Crimp J31
G03503848Courtesy of SAAB-SCANIA OF AMERICA, INC.
