To fit

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Fit a new valve to the mounting plate with pop rivets.

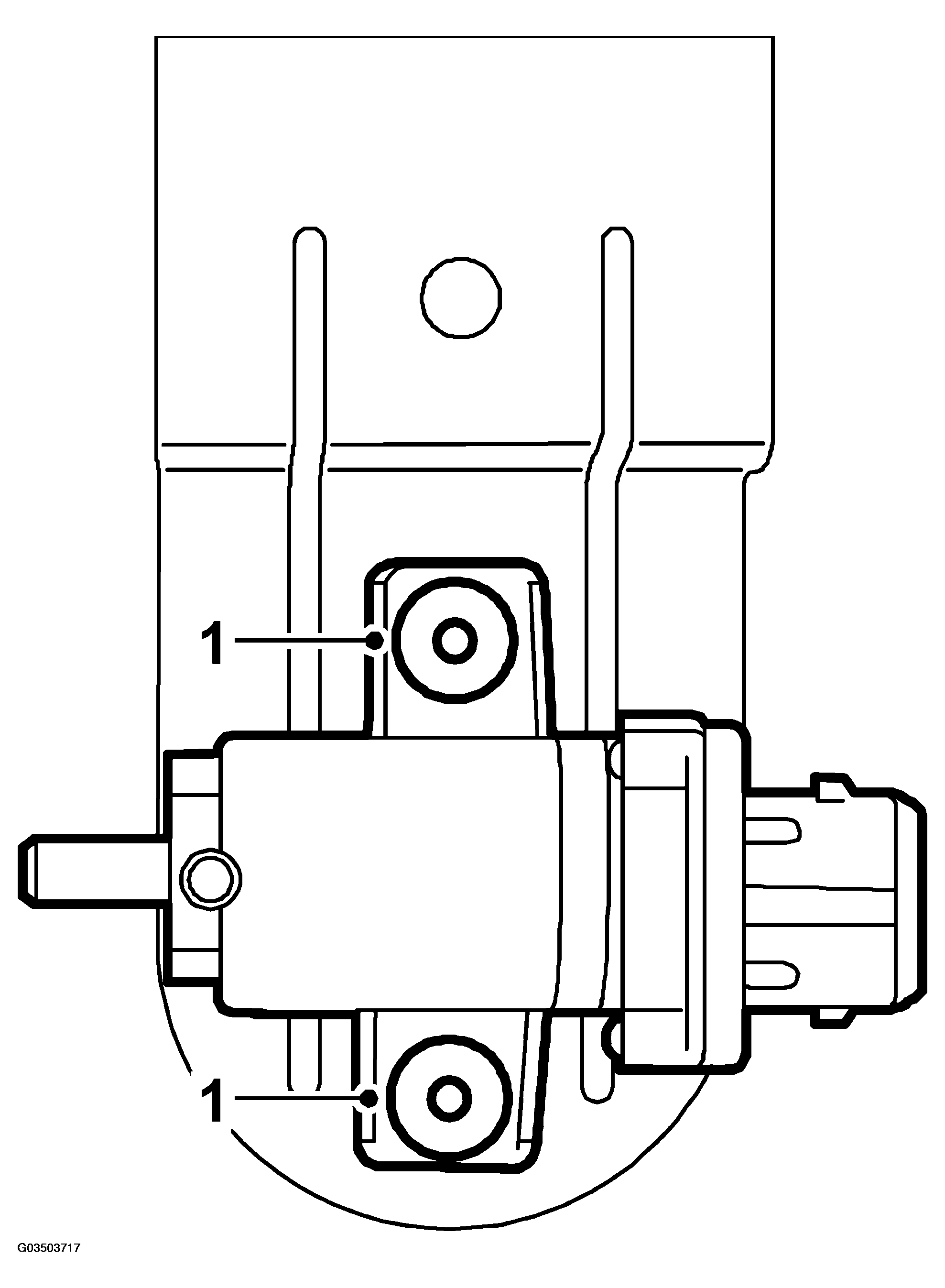

    Fig 1: Illustration For Step 1
    G03503717Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Connect the vacuum hoses to the valve.

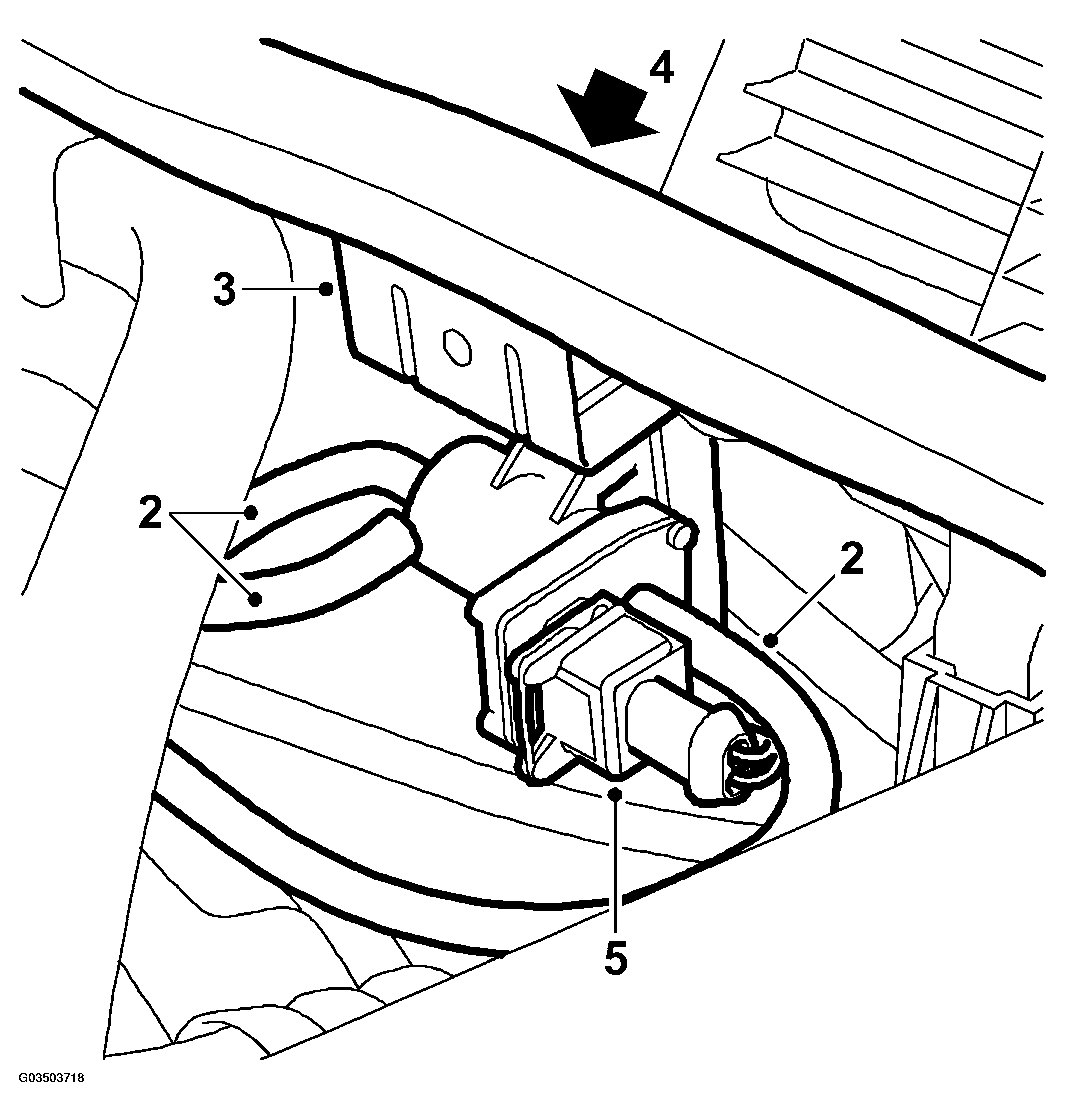

    Fig 2: Illustration For Step 2-3-4-5
    G03503718Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Fit the mounting plate.
  4. Fit the bonnet sealing strip.
  5. Spray the two pin connector with Kontakt 61 (part no. 30 04 520) and plug it into the control valve.
