To remove

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Unplug the 10-pin ignition discharge module connector.

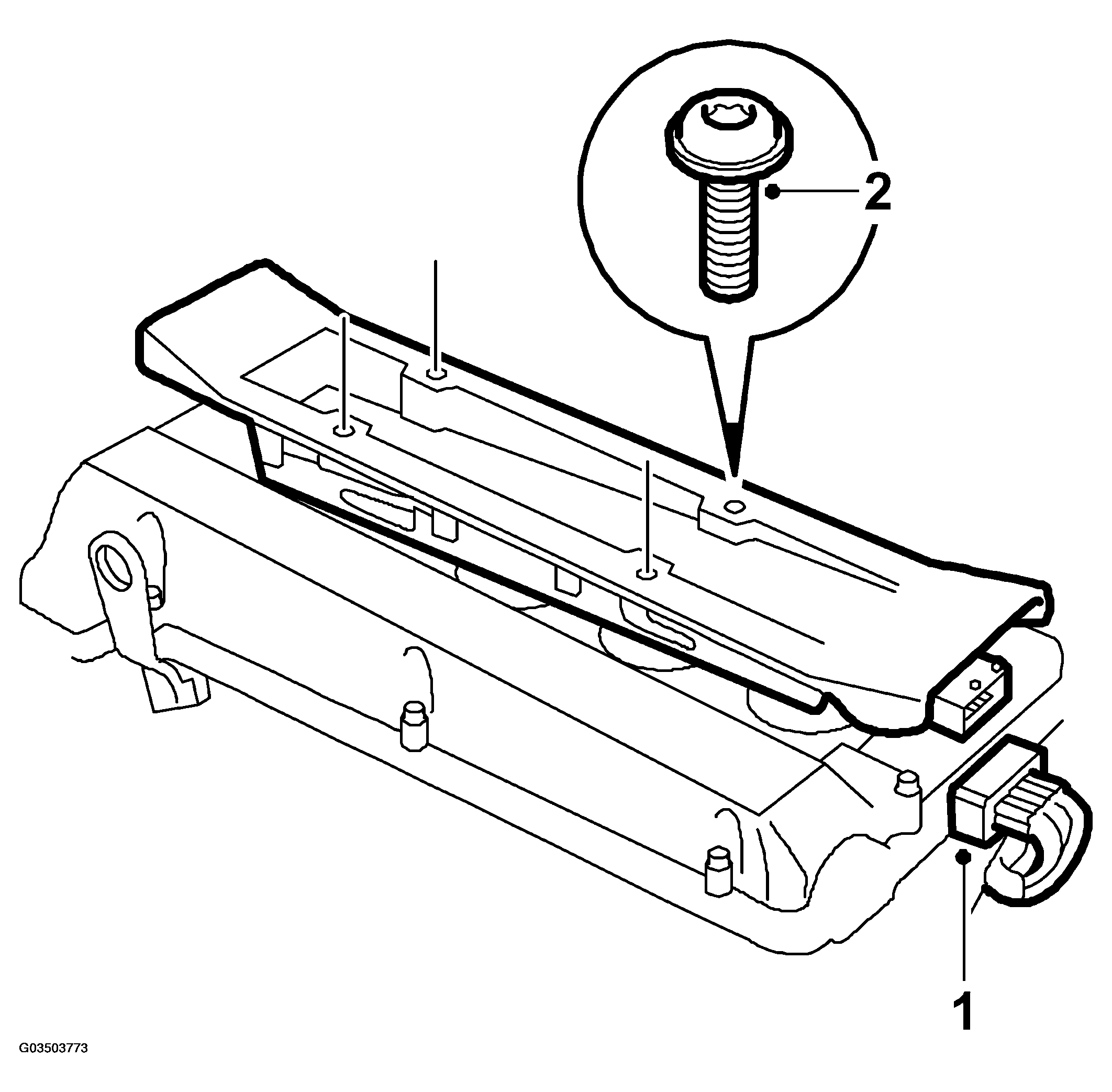

    Fig 1: Illustration For Step 1-2
    G03503773Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Remove the 4 ignition discharge module screws.
  3. Remove the spark plugs.
