To fit

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Apply Molykote 1000 (part no. 30 20 971) or equivalent to the spark plug threads.
  2. Apply Krytox (part no. 30 19 312) to the rubber seals.
  3. Fit the spark plugs and check the gaps. See SPARK PLUGS .

    Tightening torque 28 N.m (21 lbf ft)

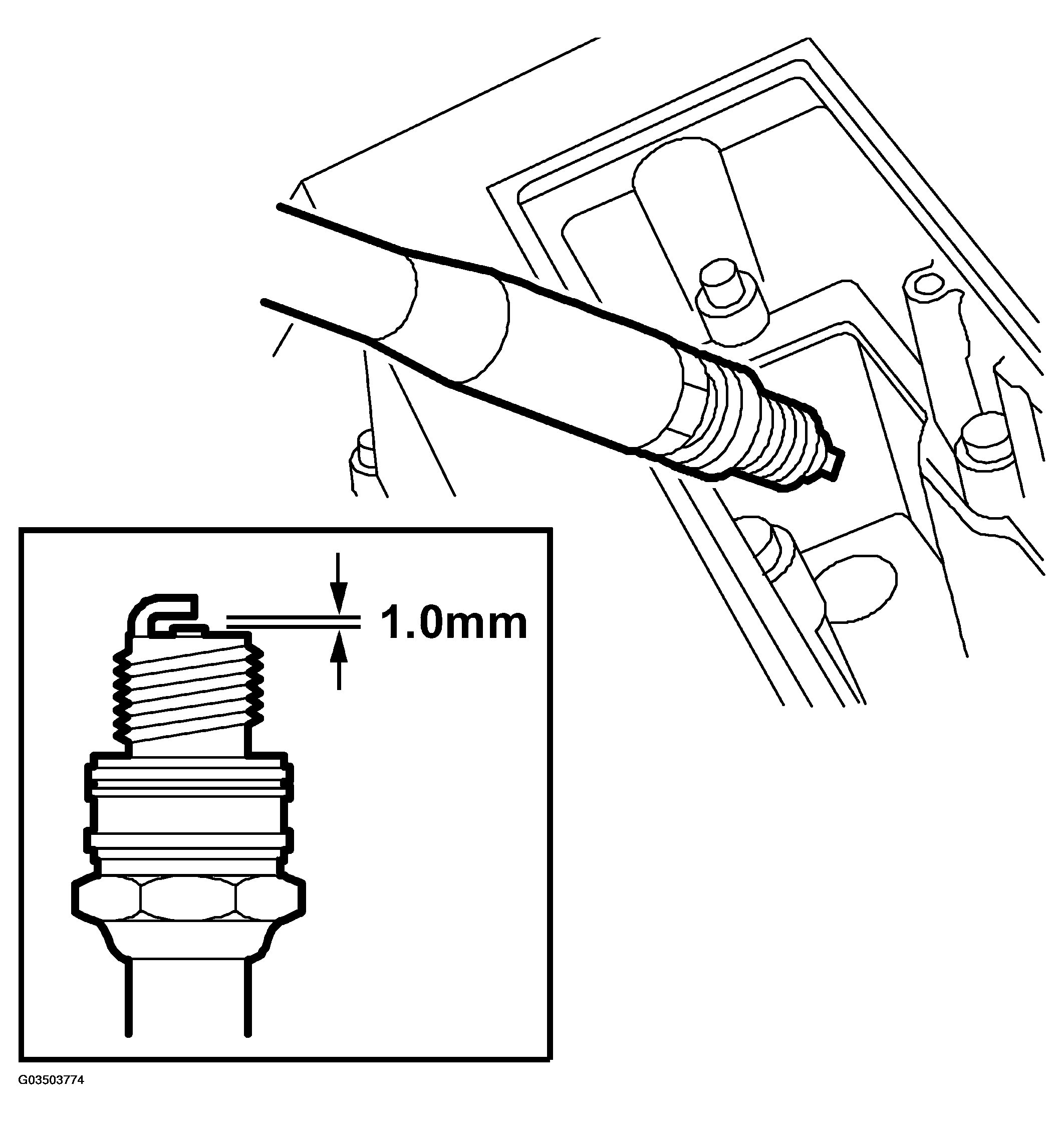

    Fig 1: Identifying Spark Plug Gap
    G03503774Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Fit the 4 ignition discharge module screws.

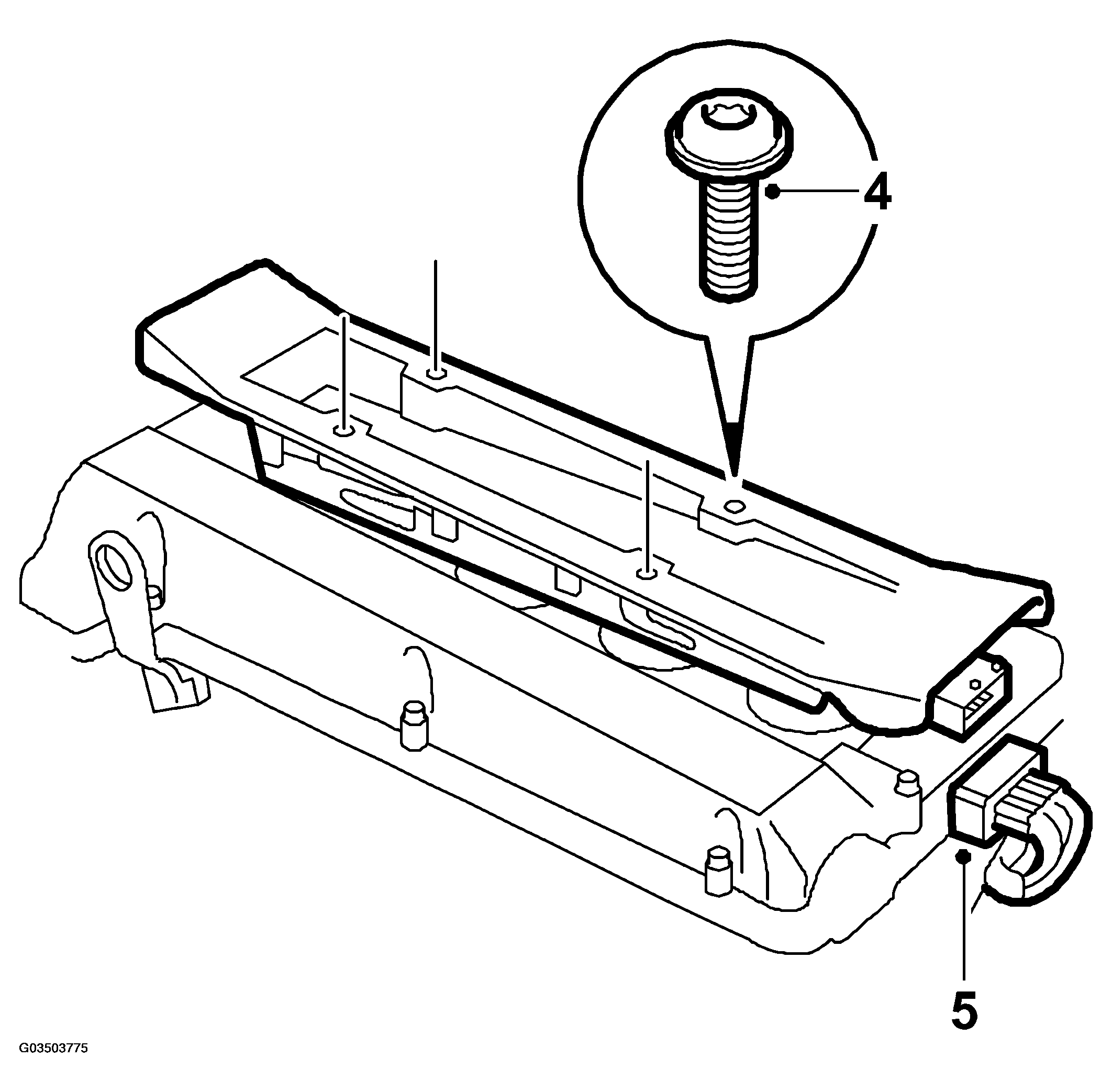

    Fig 2: Illustration For Step 4-5
    G03503775Courtesy of SAAB-SCANIA OF AMERICA, INC.

    Tightening torque 11 N.m (8.1 lbf ft)

  5. Plug in the 10-pin ignition discharge module connector.
