To remove

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the cover on the knee protection.

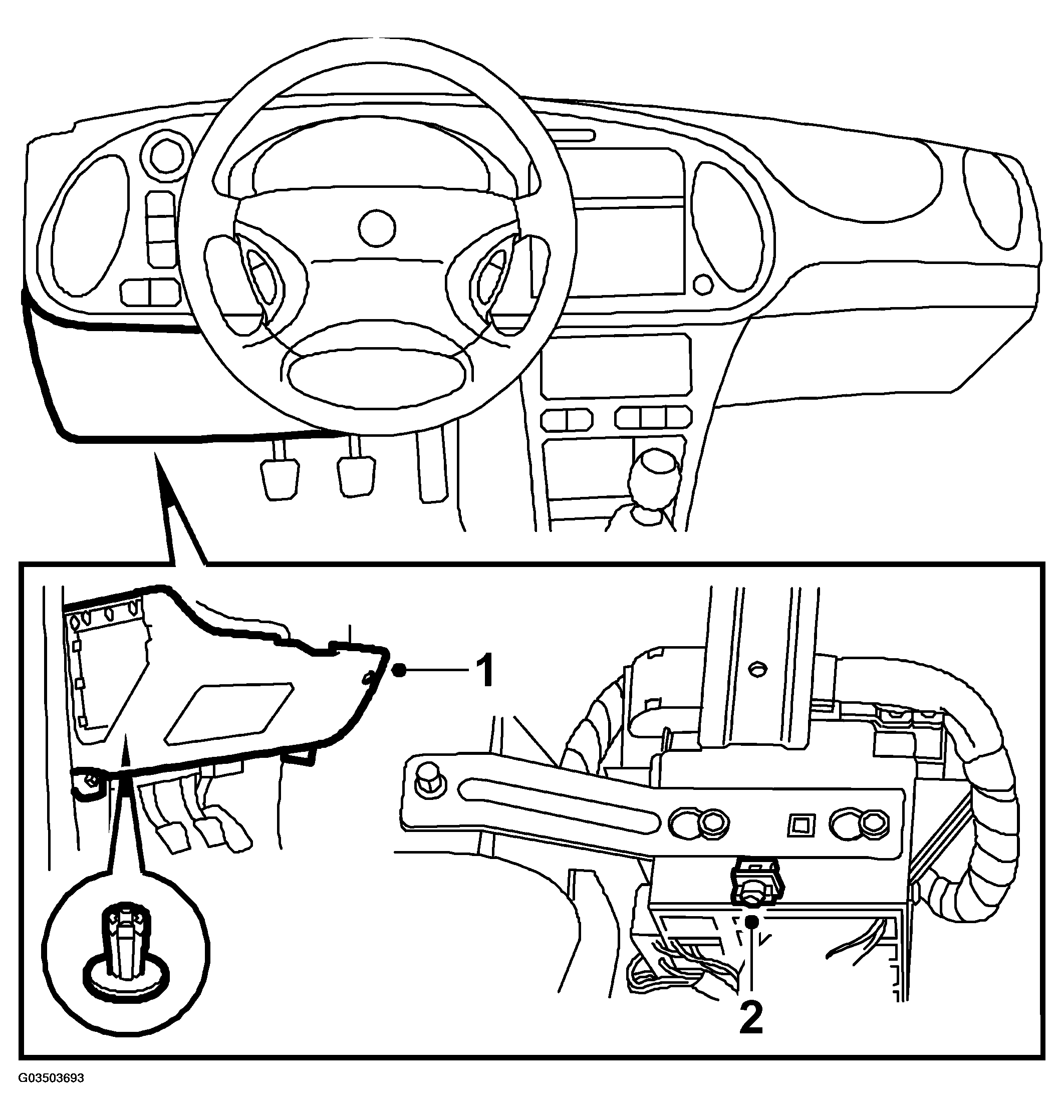

    Fig 1: Illustration For Step 1-2
    G03503693Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Undo the screw securing the relay holder.
  3. Tilt down the relay holder.

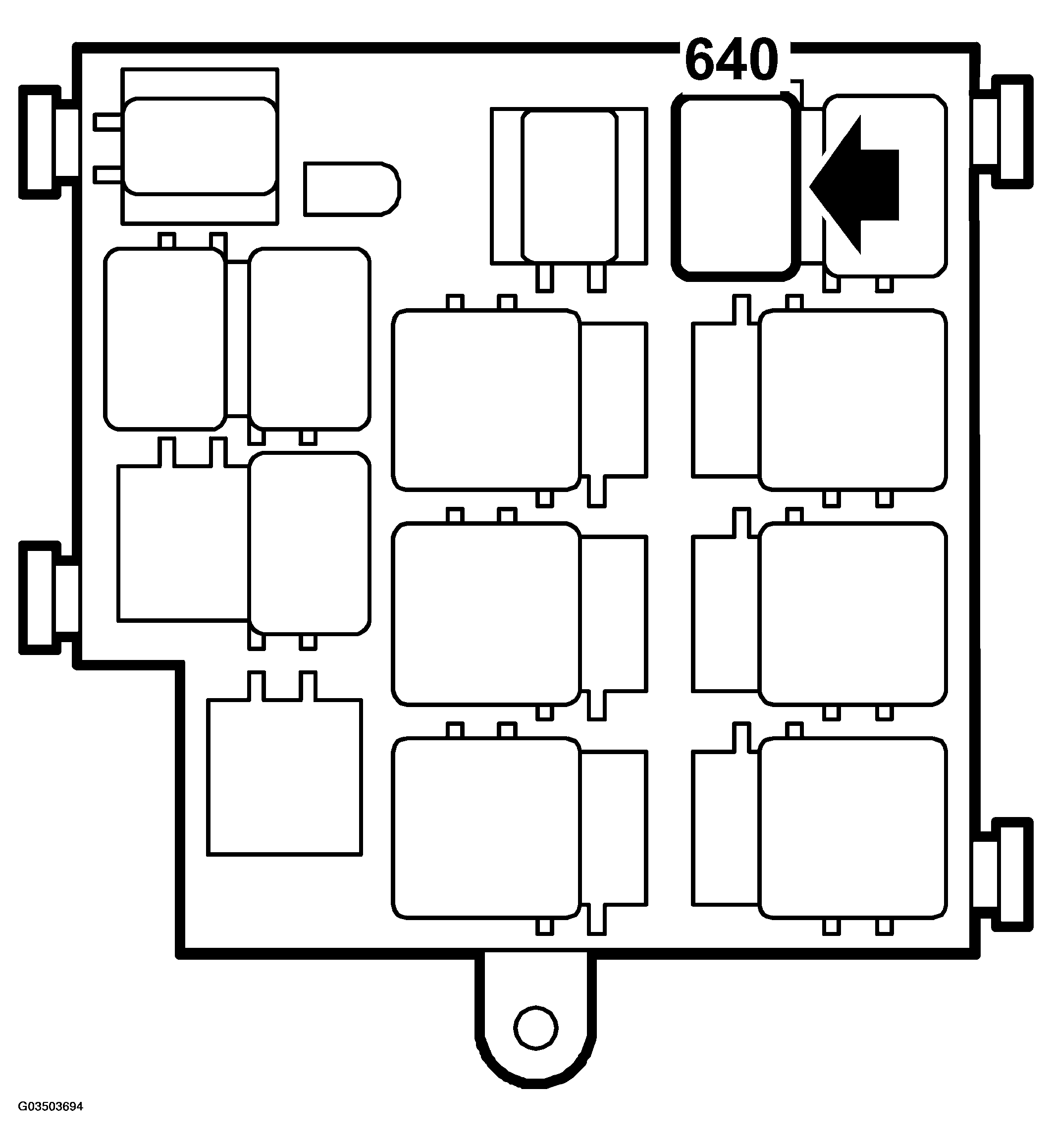

    Fig 2: Identifying Limp-Home Solenoid Relay
    G03503694Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Remove the relay for the limp-home solenoid.
