To fit

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Spray the connectors in the relay holder with Kontakt 61 (part no. 30 04 520) and fit the relay.
  2. Tilt up the relay holder and fit the screw.

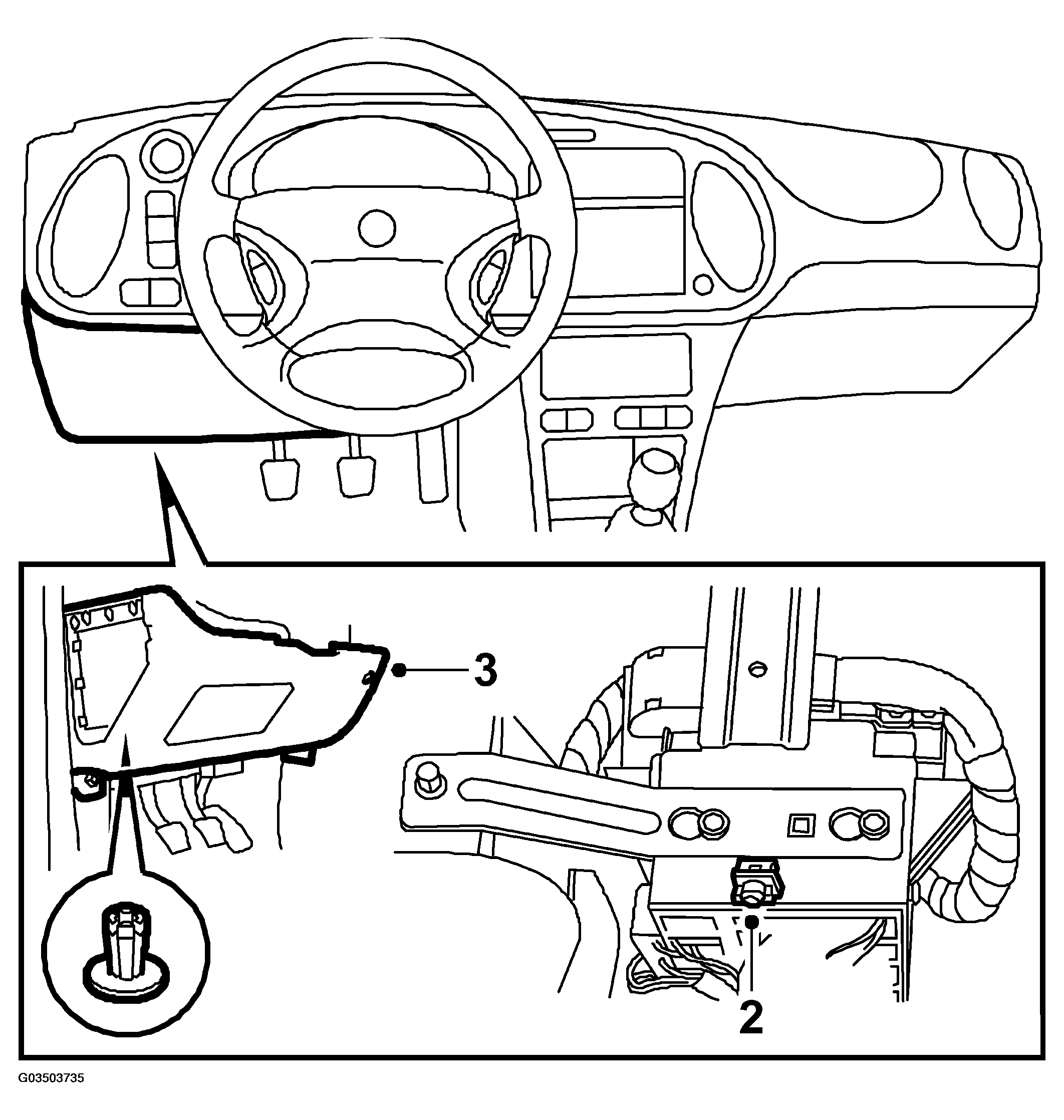

    Fig 1: Illustration For Step 2-3
    G03503735Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Fit the cover on the knee protection.
