To fit

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Apply petroleum jelly (part no. 30 04 520) or the equivalent sparingly to the sensor O -rings. Fit the sensor.

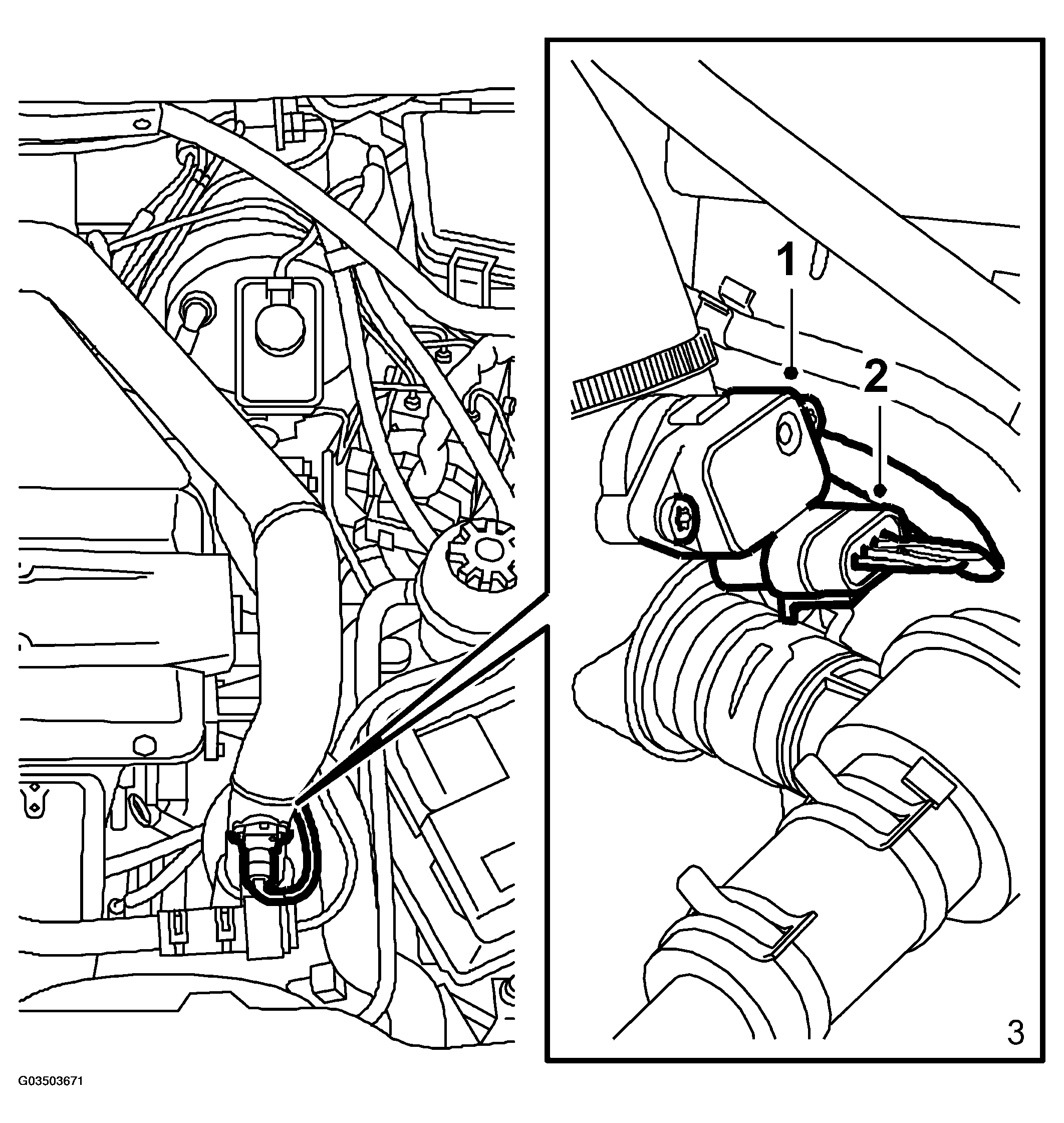

    Fig 1: Illustration For Step 1-2
    G03503671Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Spray the connector with Kontakt 61 (part no. 30 04 520). Plug in the connector.
