To fit

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Apply Krytox (part no. 30 19 312) to the rubber seals and fit the ignition discharge module.

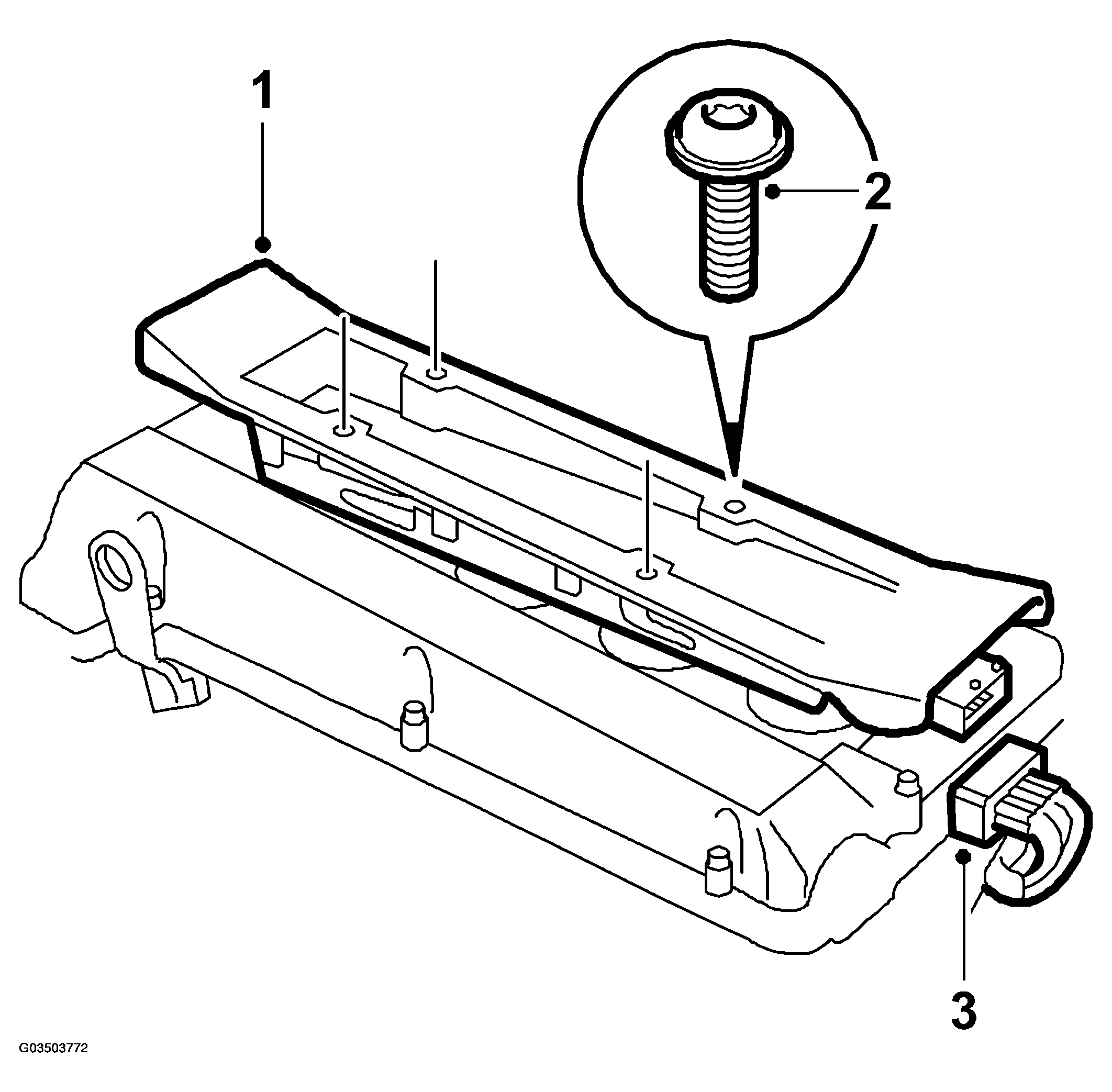

    Fig 1: Illustration For Step 1-2-3
    G03503772Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Fit the 4 screws.

    Tightening torque 11 N.m (8.1 lbf ft)

  3. Spray the 10-pin ignition discharge module connector with Kontakt 61 (part no. 30 04 520). Plug in the connector.
