To fit

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lubricate the fuel pressure regulator O -ring with acid -free vaseline, part no. 30 06 665.

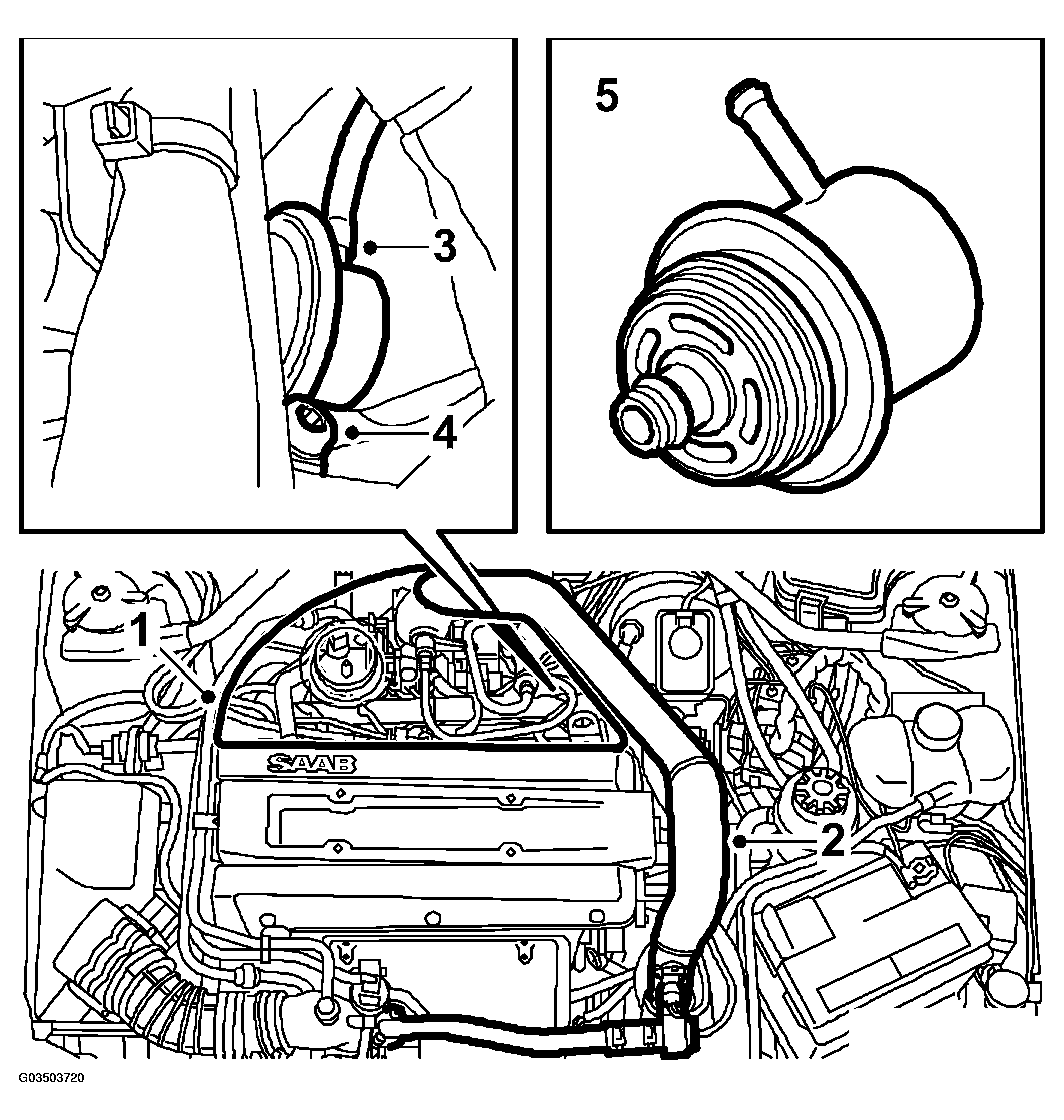

    Fig 1: Illustration For Step 1-2-3-4-5
    G03503720Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Fit the regulator to the fuel rail and tighten the clamp.
  3. Fit the regulator vacuum hose.
  4. Fit the charge air pipe with connector and hose.

    Man:  Connect the venturi hose to the charge air pipe.

  5. Start the engine and check for leaks.
  6. Fit the top engine cover.
