To fit

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the valve to the hose. Make sure that the opening for the cable is correctly positioned.

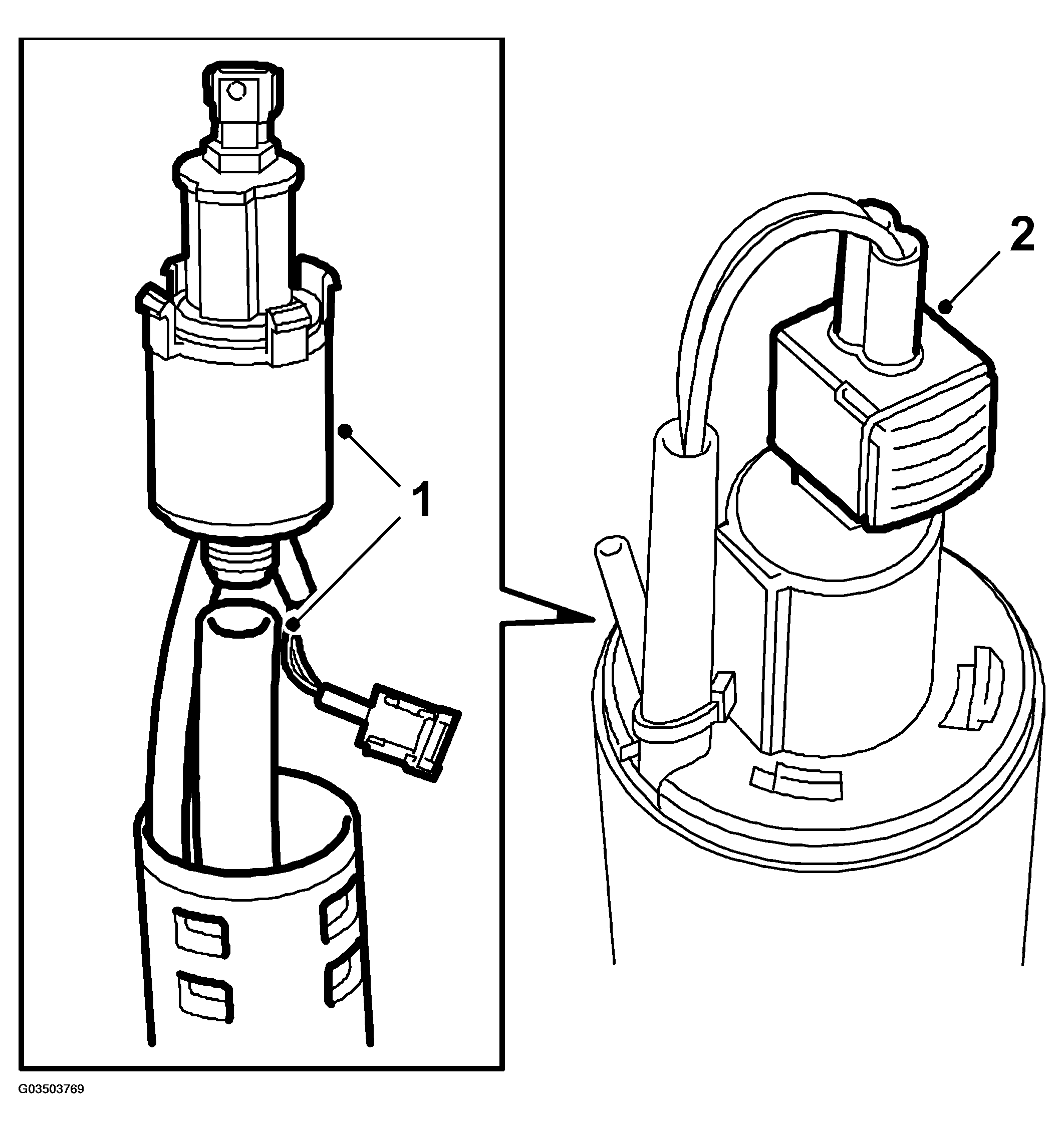

    Fig 1: Illustration For Step 1-2
    G03503769Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Spray with Kontakt 61 and plug in the connector.
  3. Carefully insert the valve into the vent hose.
    IMPORTANT: Be careful with the foam rubber filter so that it is not damaged or incorrectly positioned.
  4. Fit the cap.

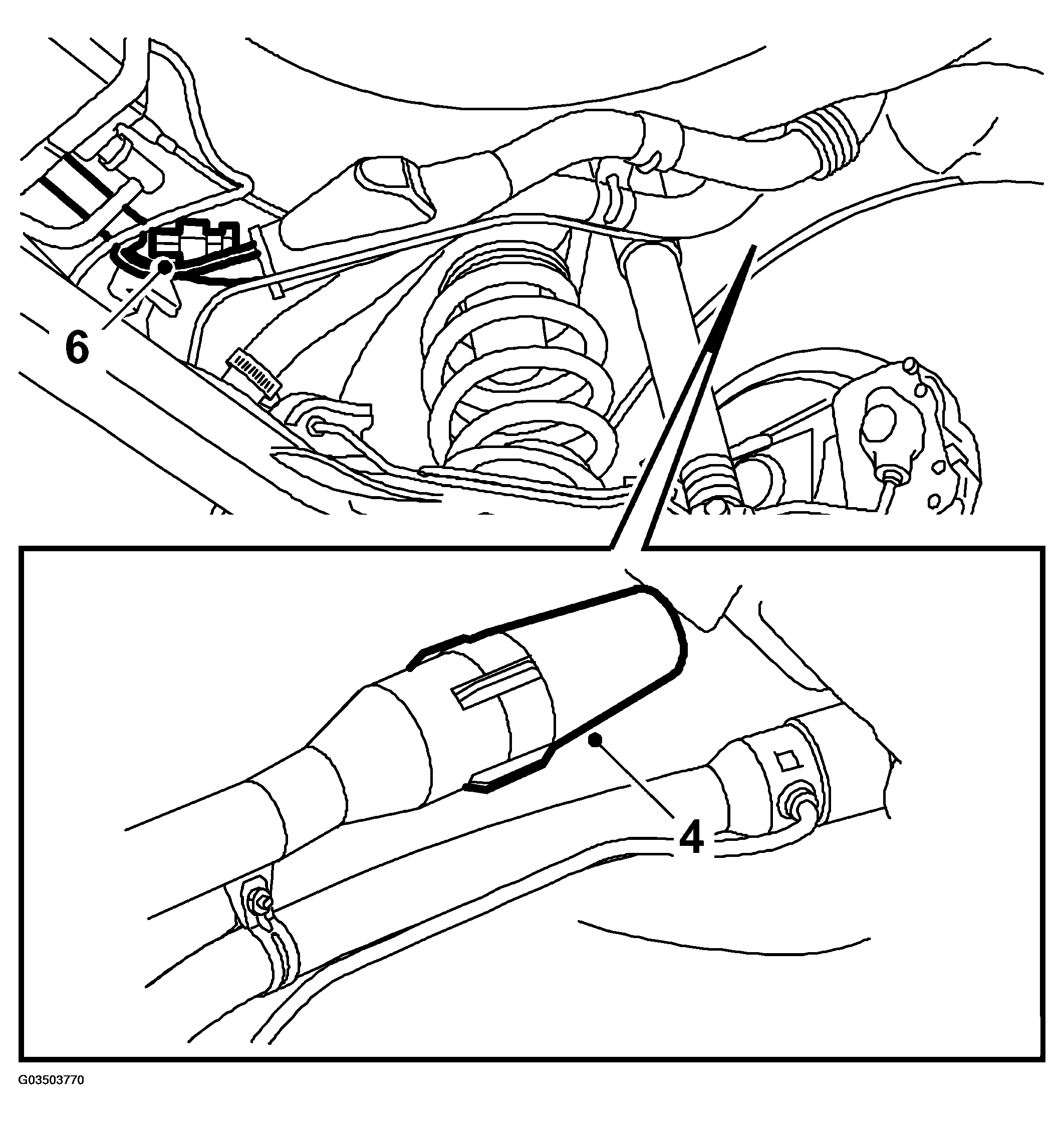

    Fig 2: Illustration For Step 4-5-6
    G03503770Courtesy of SAAB-SCANIA OF AMERICA, INC.
  5. Raise the car.
  6. Adjust and connect the shut-off valve hose to the EVAP canister.
  7. Lower the car to the floor.
