To remove

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Unplug the connector from the EVAP canister purge valve. Make a note of the location of the vale.

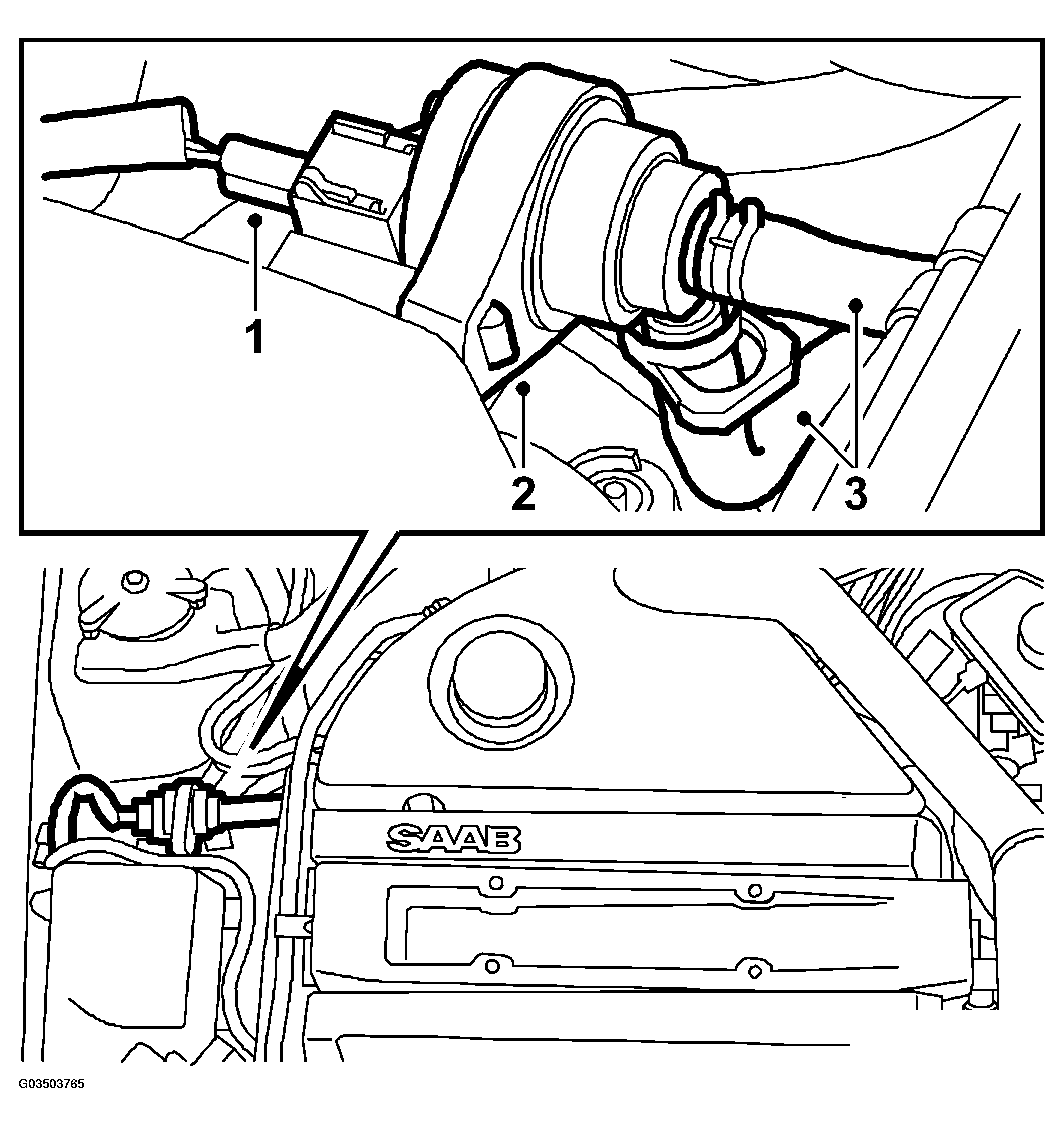

    Fig 1: Illustration For Step 1-2-3
    G03503765Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Remove the valve from the holder.
  3. Remove the hoses.
