To fit
WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

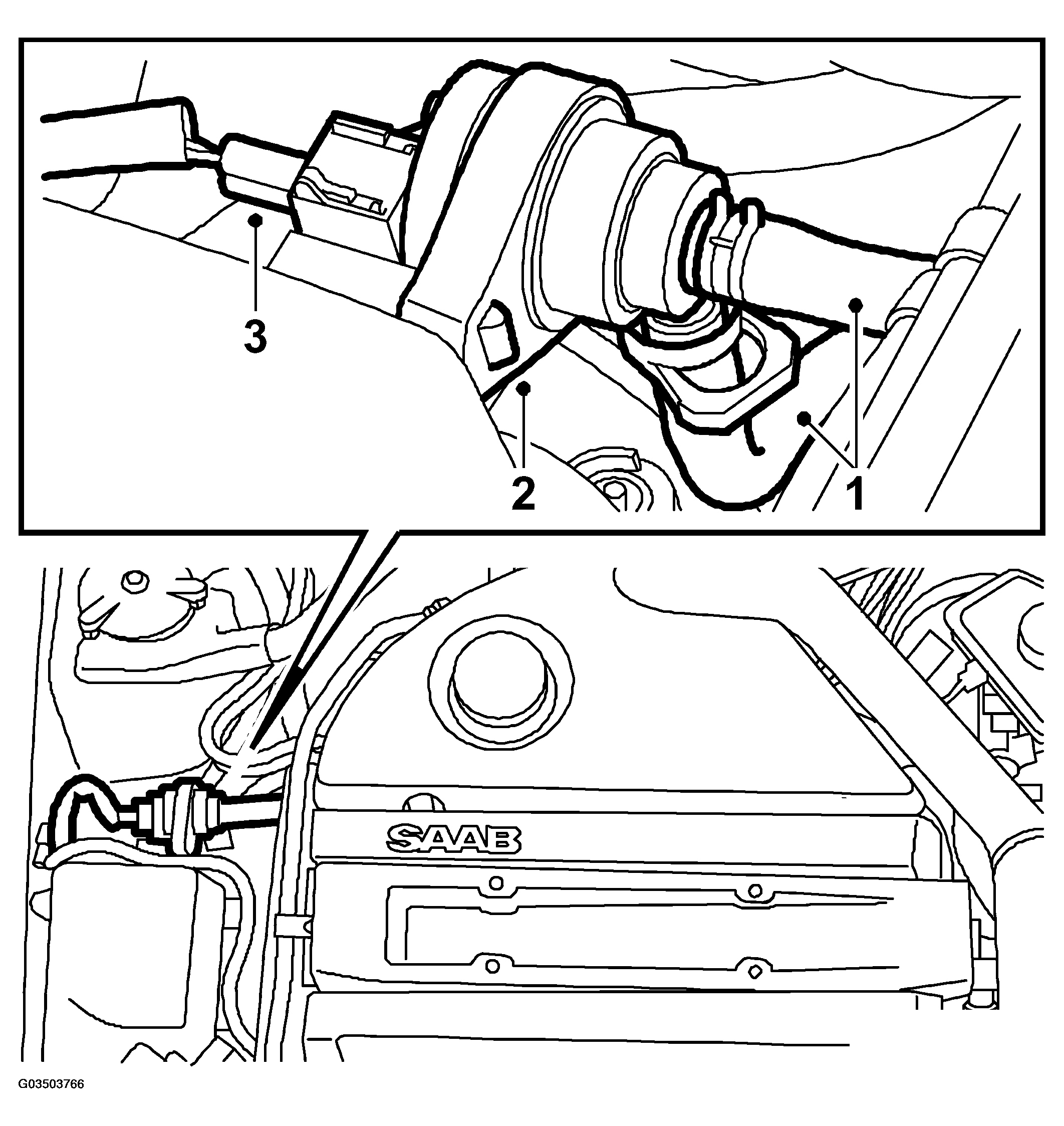

Spray the connector with Kontakt 61 (part no. 30 04 520).
- Fit the hoses.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
- Fit the valve to the holder.
- Plug in the connector on the EVAP canister purge valve.
