To remove

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the lower dashboard panel.

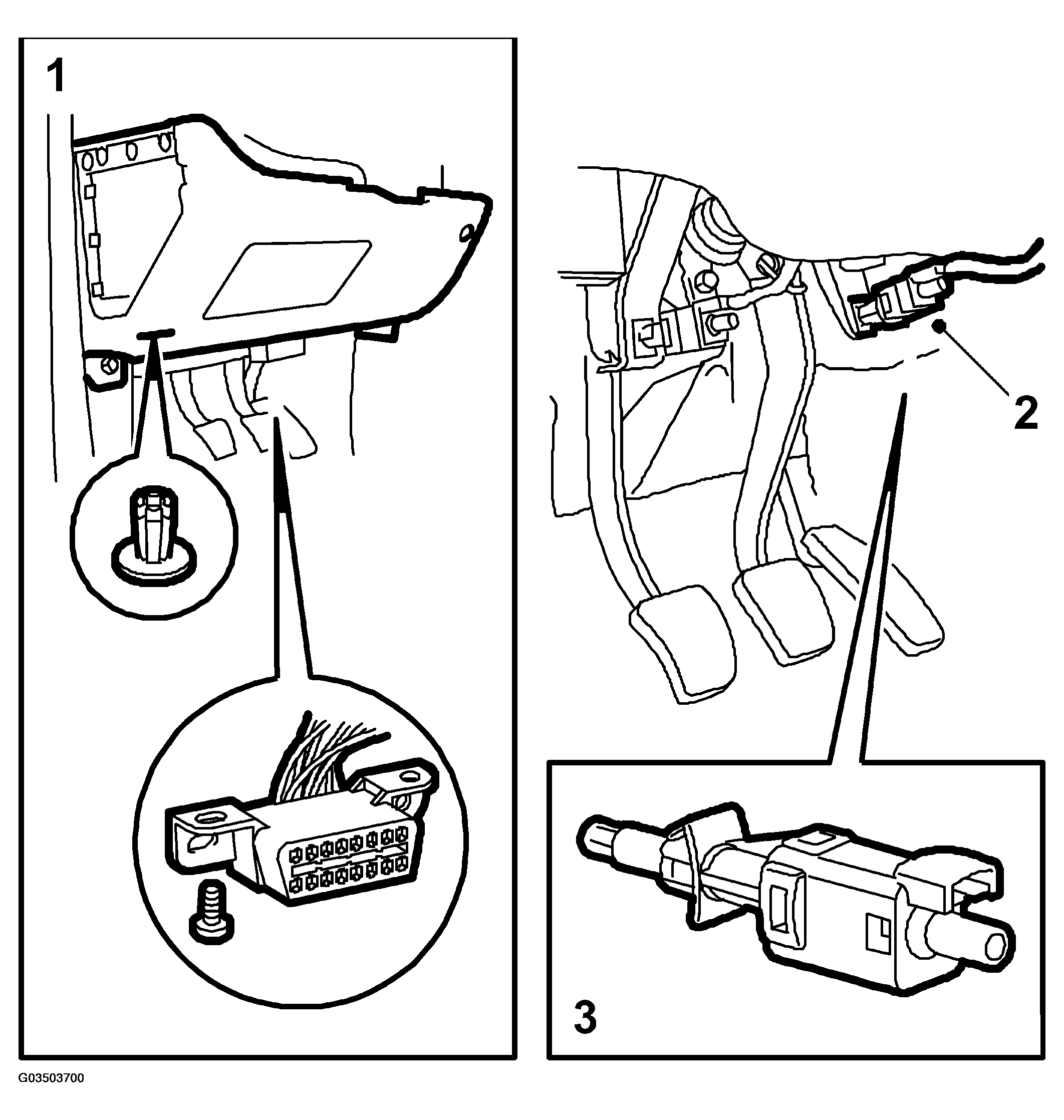

    Fig 1: Illustration For Step 1-2-3
    G03503700Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Unplug the brake pedal switch connector.
  3. Detach the brake pedal switch with a screwdriver.
