To fit

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Spray the connector with Kontakt 61 (part no. 30 04 520).
  2. Carefully pull out the switch pushrod to its end position.
  3. Depress the brake pedal and fit the switch.

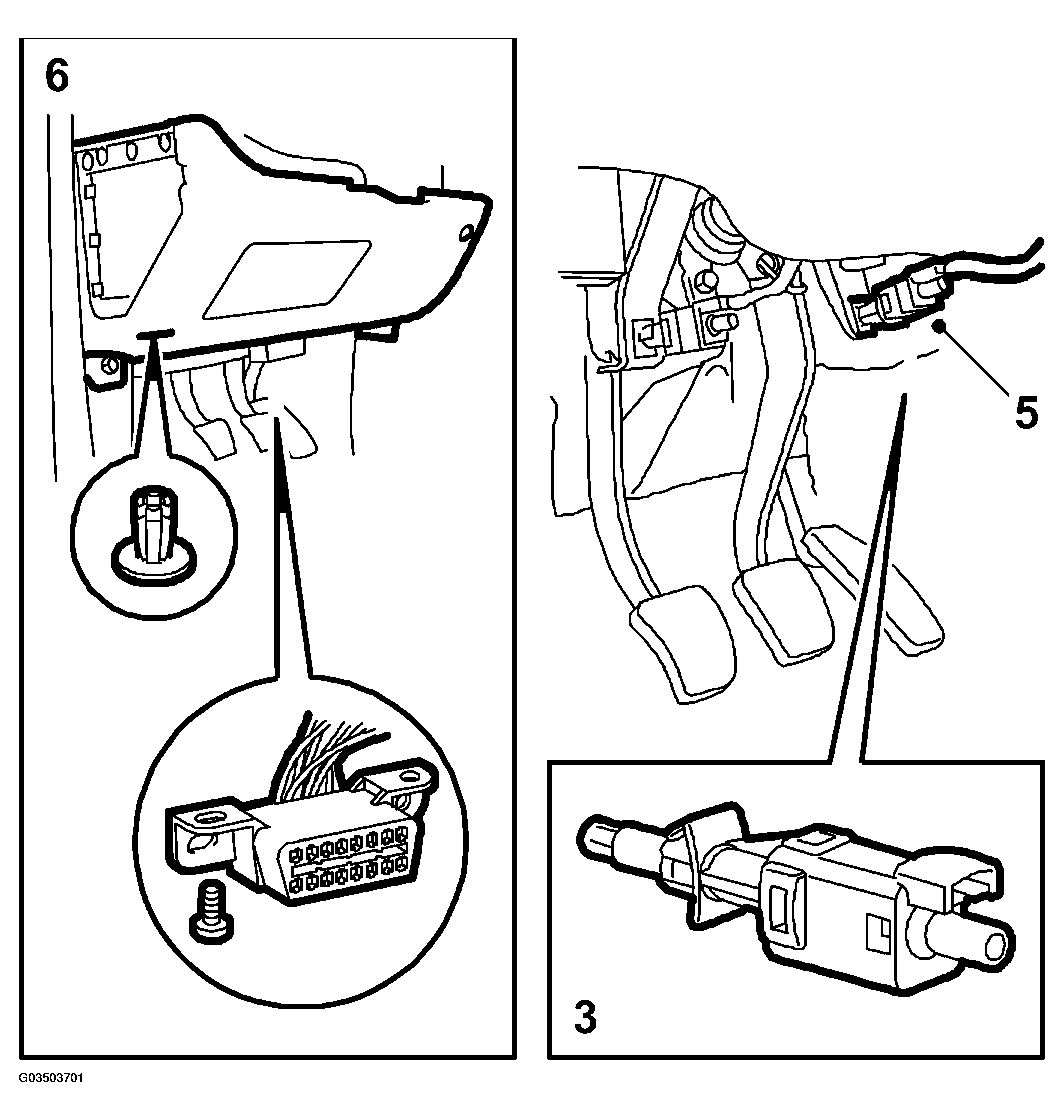

    Fig 1: Illustration For Step 3-5-6
    G03503701Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Carefully release the pedal.
  5. Plug in the connector.
  6. Fit the lower dashboard panel.
