Shut-off valve, rollover

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

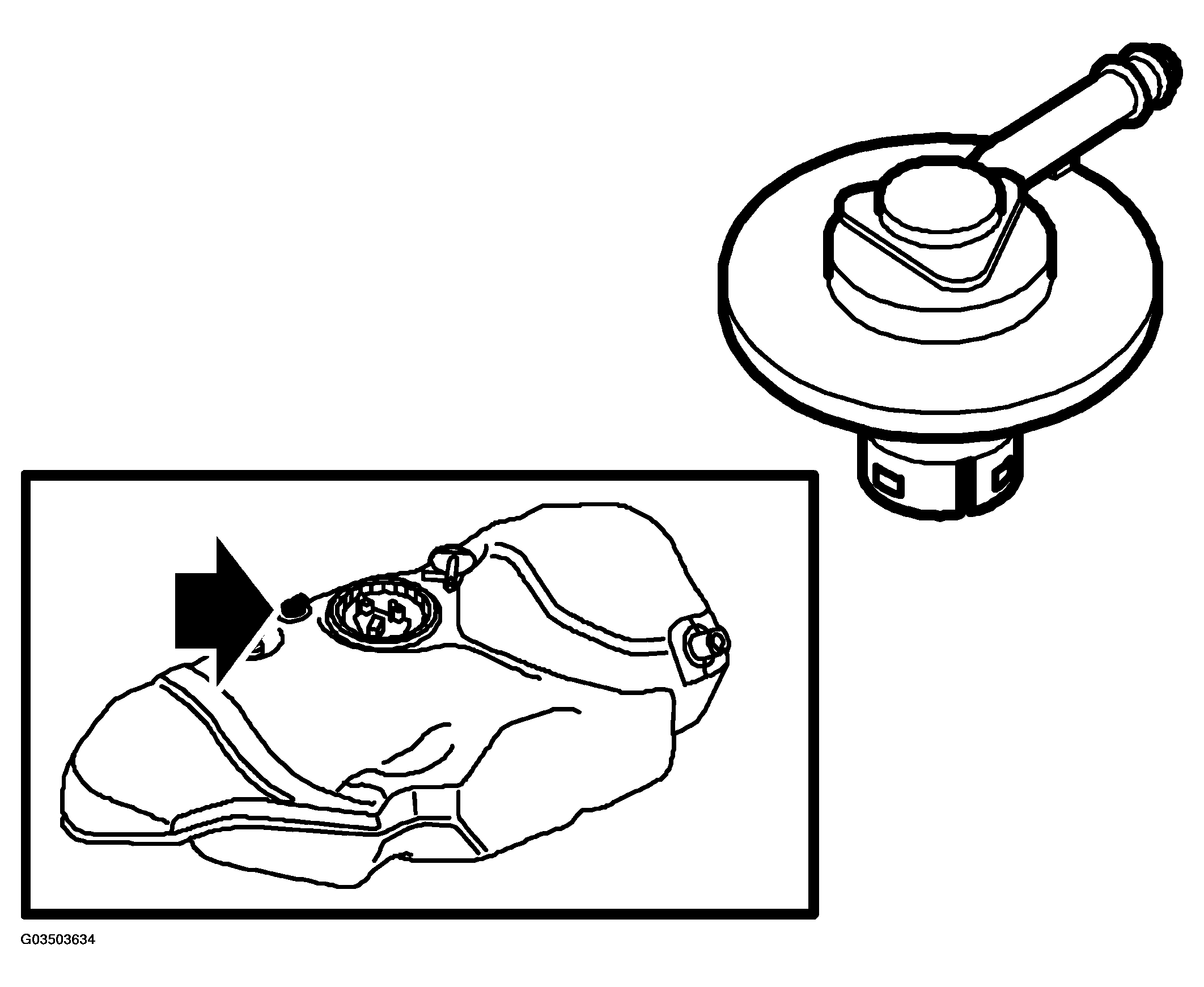

Fig 1: Identifying Shut-Off Valve
G03503634

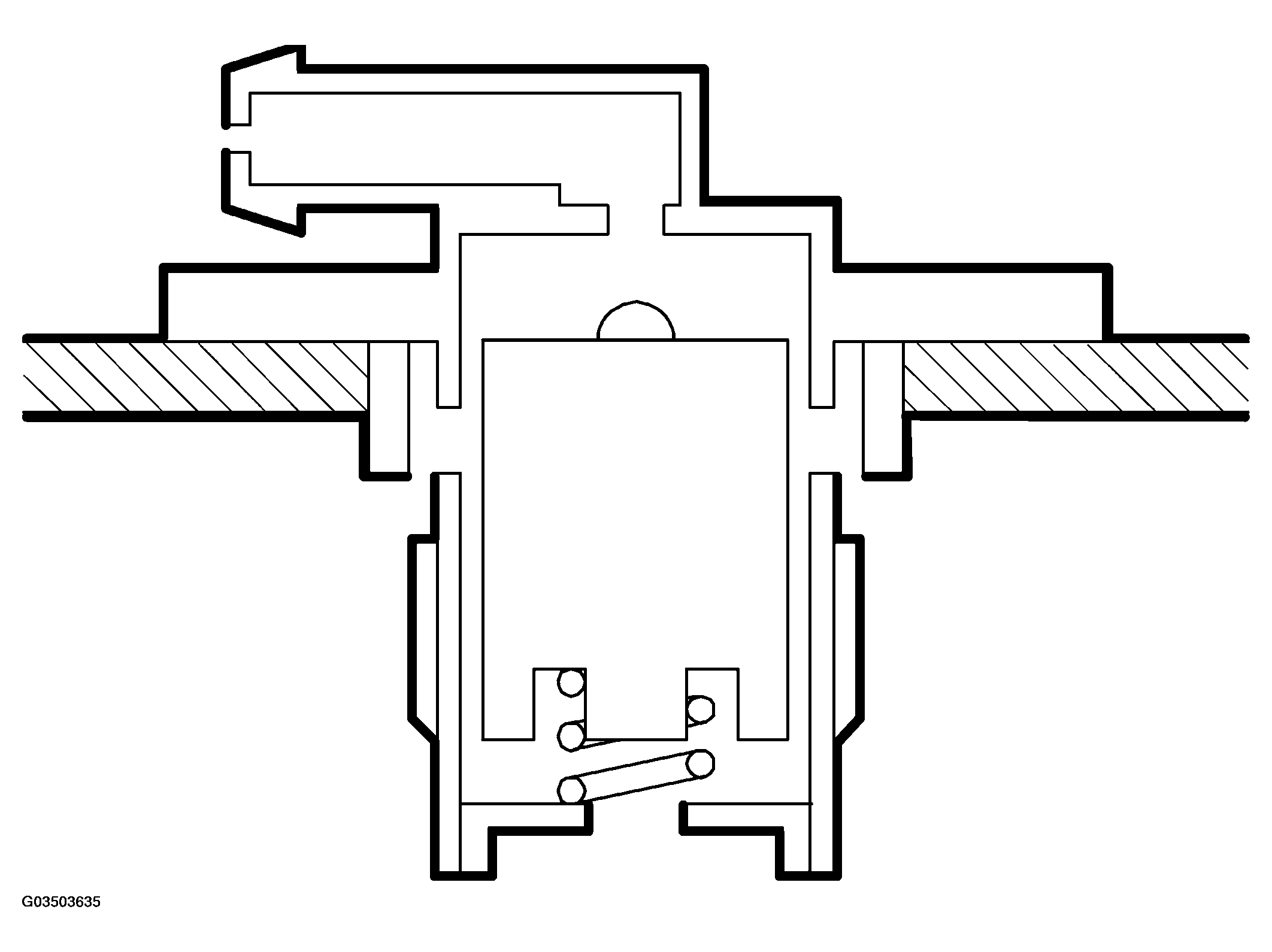

Fig 2: Sectional View Of Shut-Off Valve
G03503635

The rollover shut-off valve closes only in the event of the car rolling over and thereby prevents fuel leakage.

The valve is connected to the EVAP canister by a pipe. Expanding fumes from the tank are vented through the valve and the EVAP canister.
