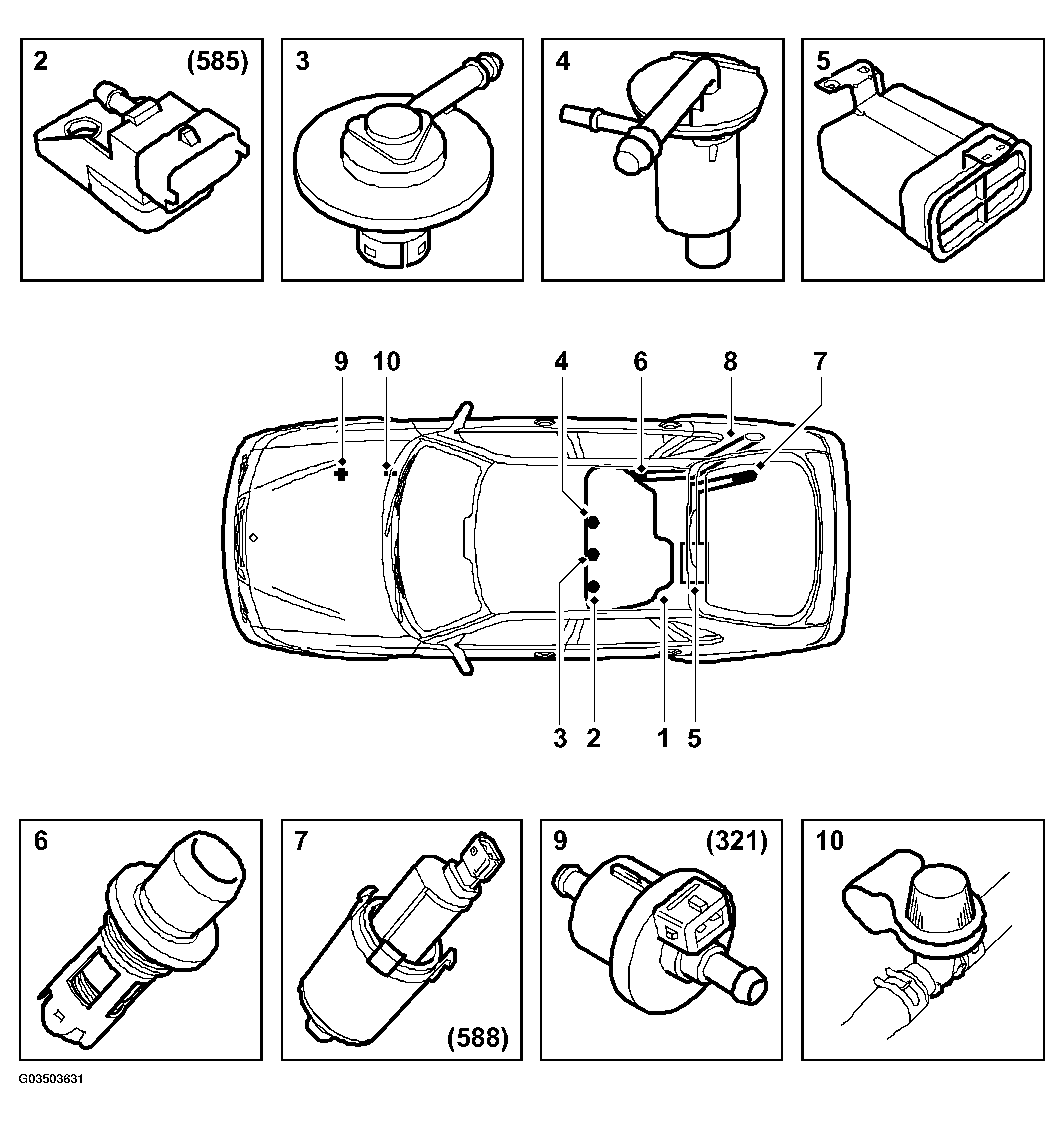

Main components
WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
- Fuel tank
- Pressure sensor, EVAP (585)
- Shut-off valve, rollover
- Float valve
- Evaporative emission canister
- Non-return valve, fuel tank
- Solenoid valve, EVAP shut-off (588)
- Fuel filler pipe
- EVAP canister purge valve (321)
- Service port
