Fuel filler pipe

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

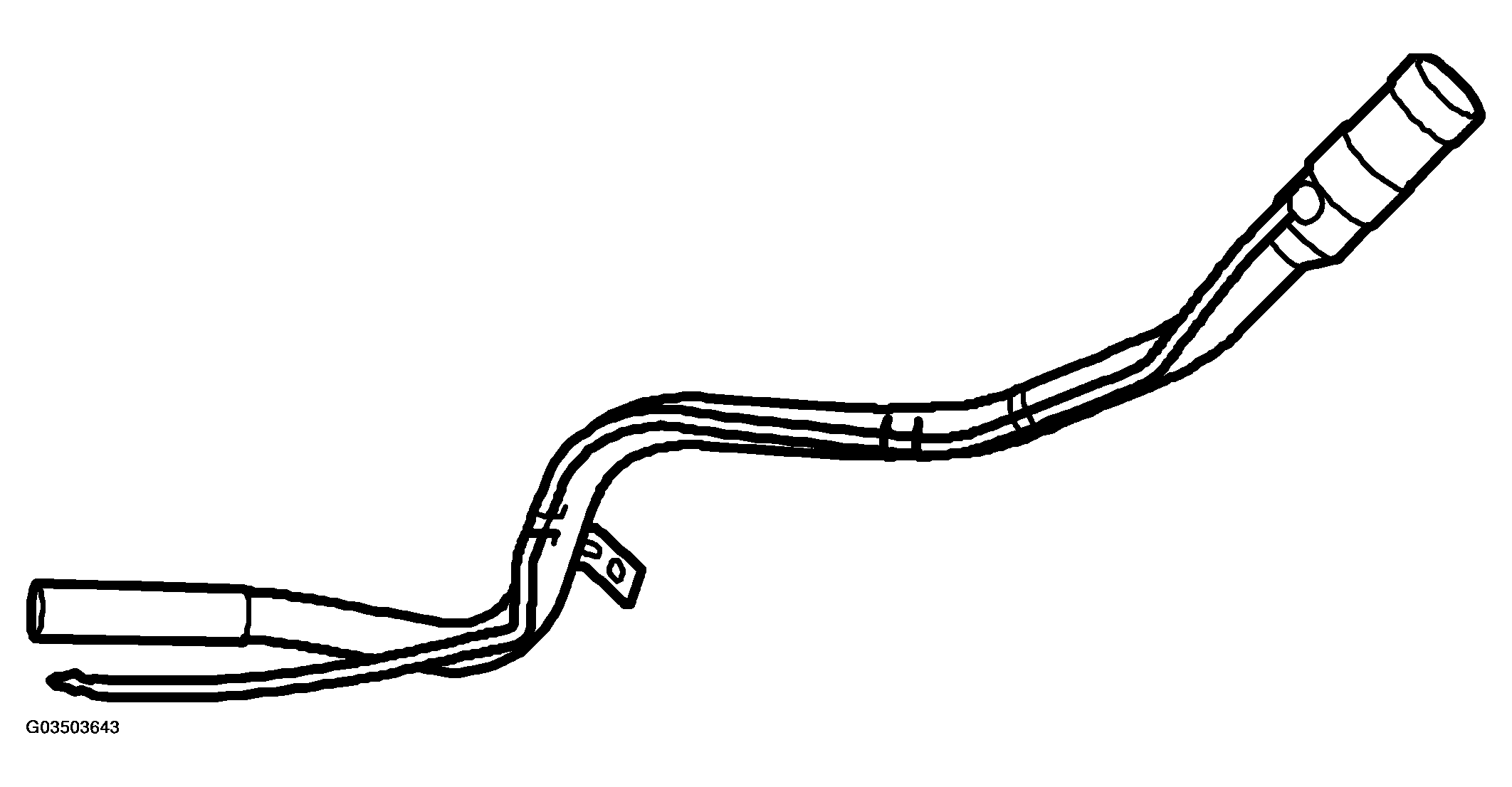

Fig 1: Identifying Fuel Filler Pipe
G03503643

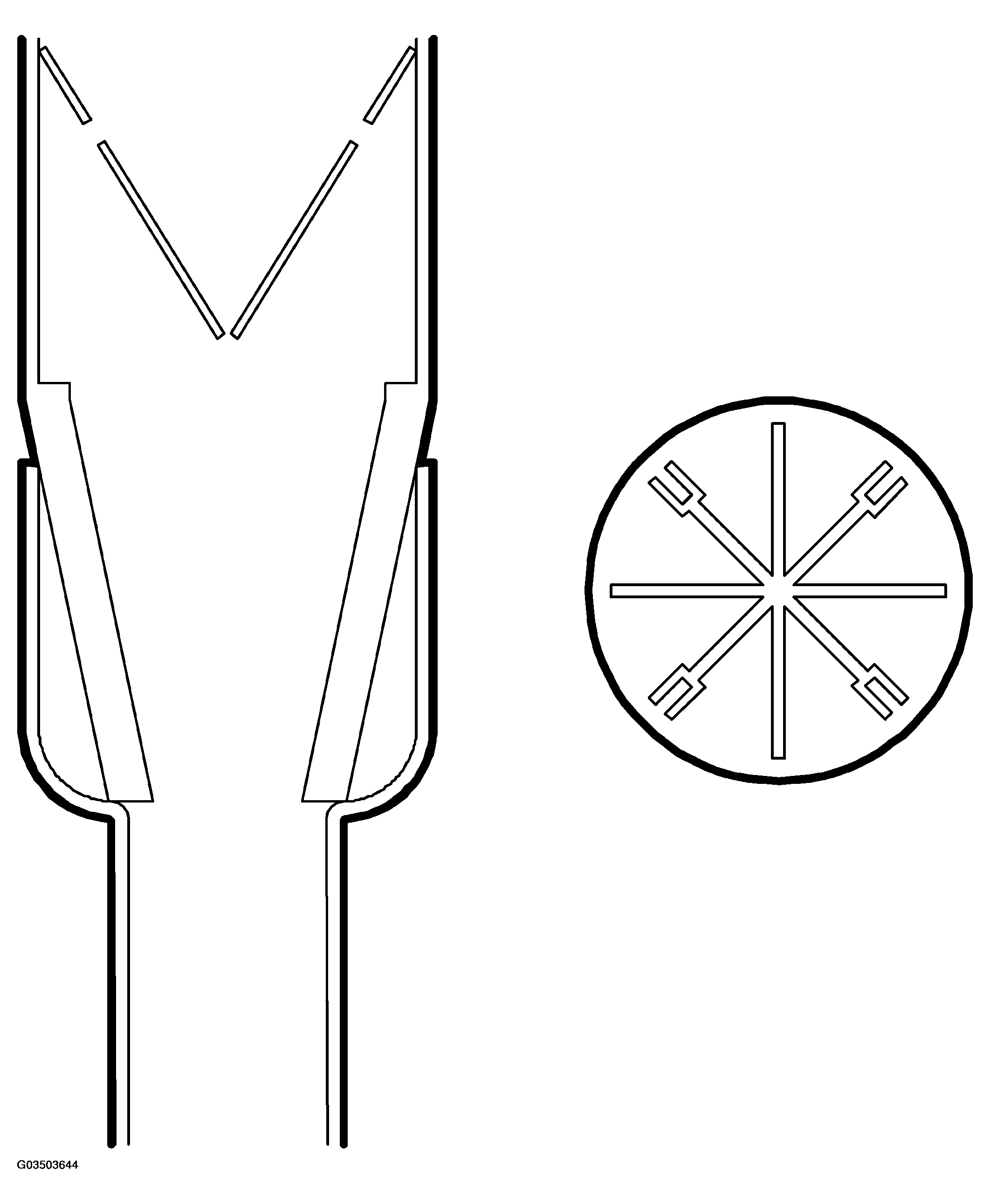

Fig 2: Sectional View Of Fuel Filler Pipe
G03503644

Fuel is filled into the filler pipe and flows through a non-return valve into the tank.

At the top of the filler pipe there is an insert that ensures a good alignment of the fuel nozzle during refueling.

IMPORTANT: The tank must never be drained by suction through the filler pipe as this will damage the non-return valve!
