Fault Symptoms

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

CHECK ENGINE comes on after two driving cycles.

Possible smell of petrol.

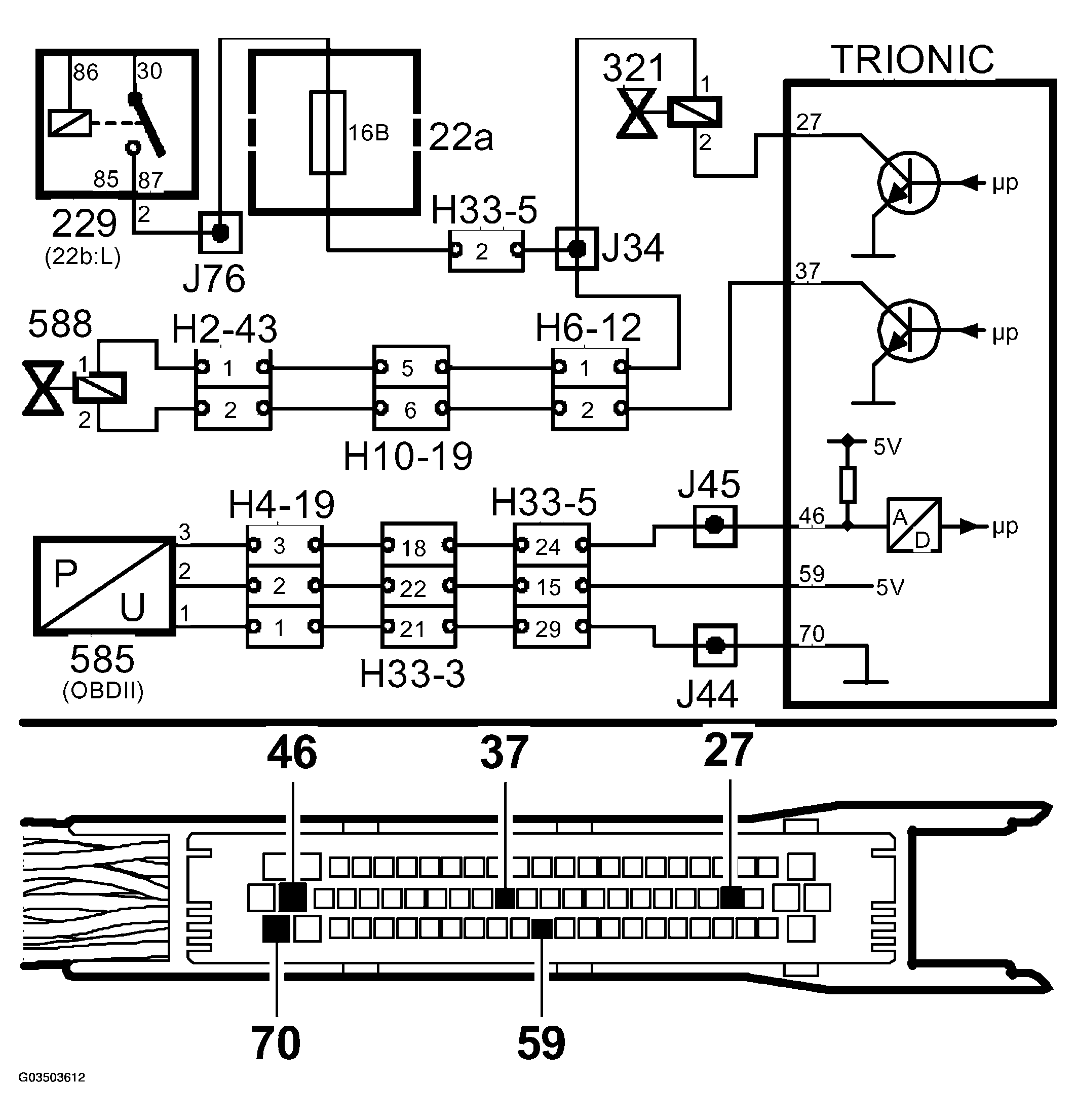

Fig 1: Evaporative Emission System Circuit Diagram
G03503612
