EVAP Purge Valve Circuit Open/Short to Ground.: Notes

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

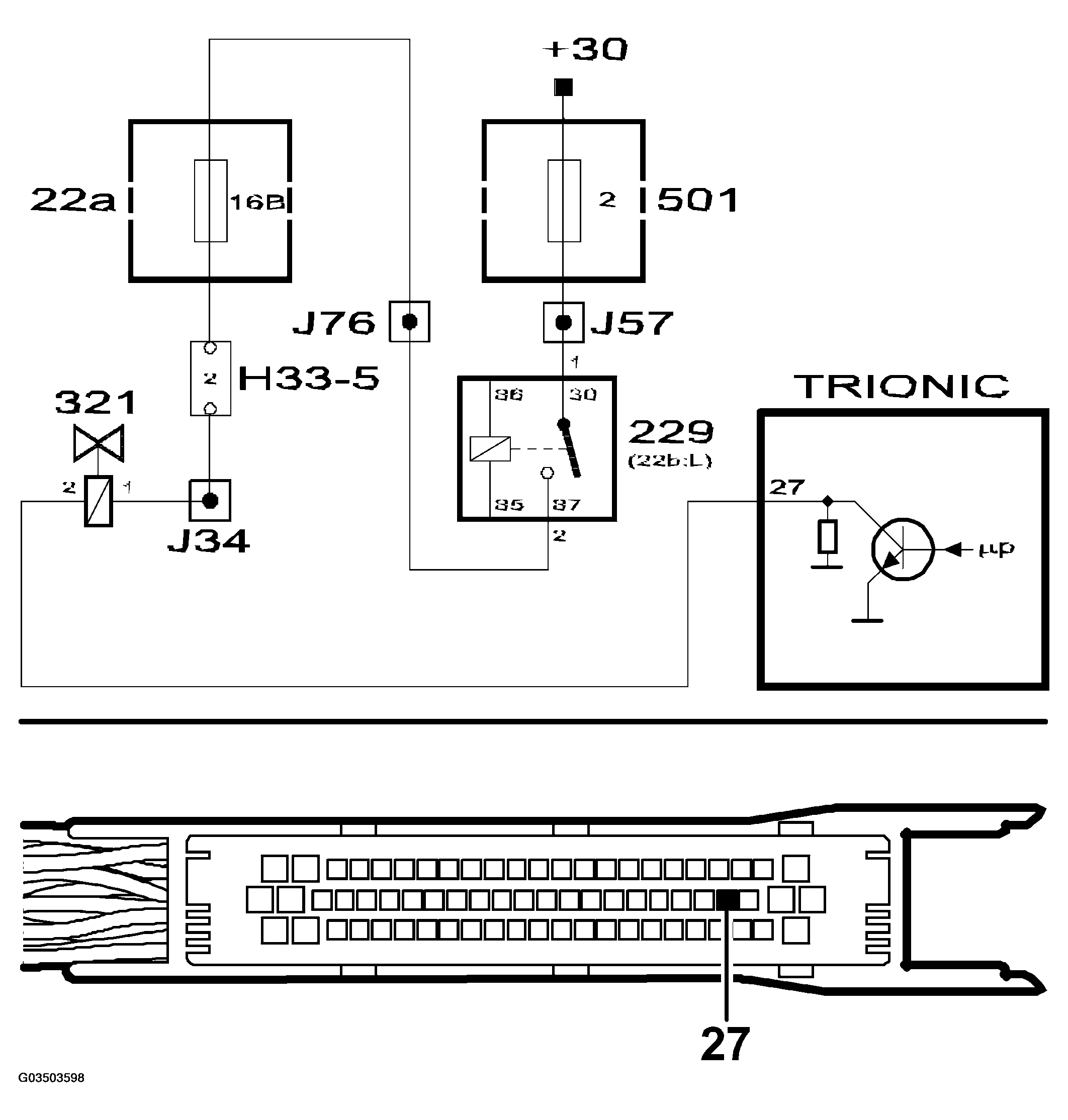

Fig 1: EVAP Purge Valve Circuit Diagram (Open / Short To Ground)
G03503598
