Purge valve, EVAP canister (321)

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

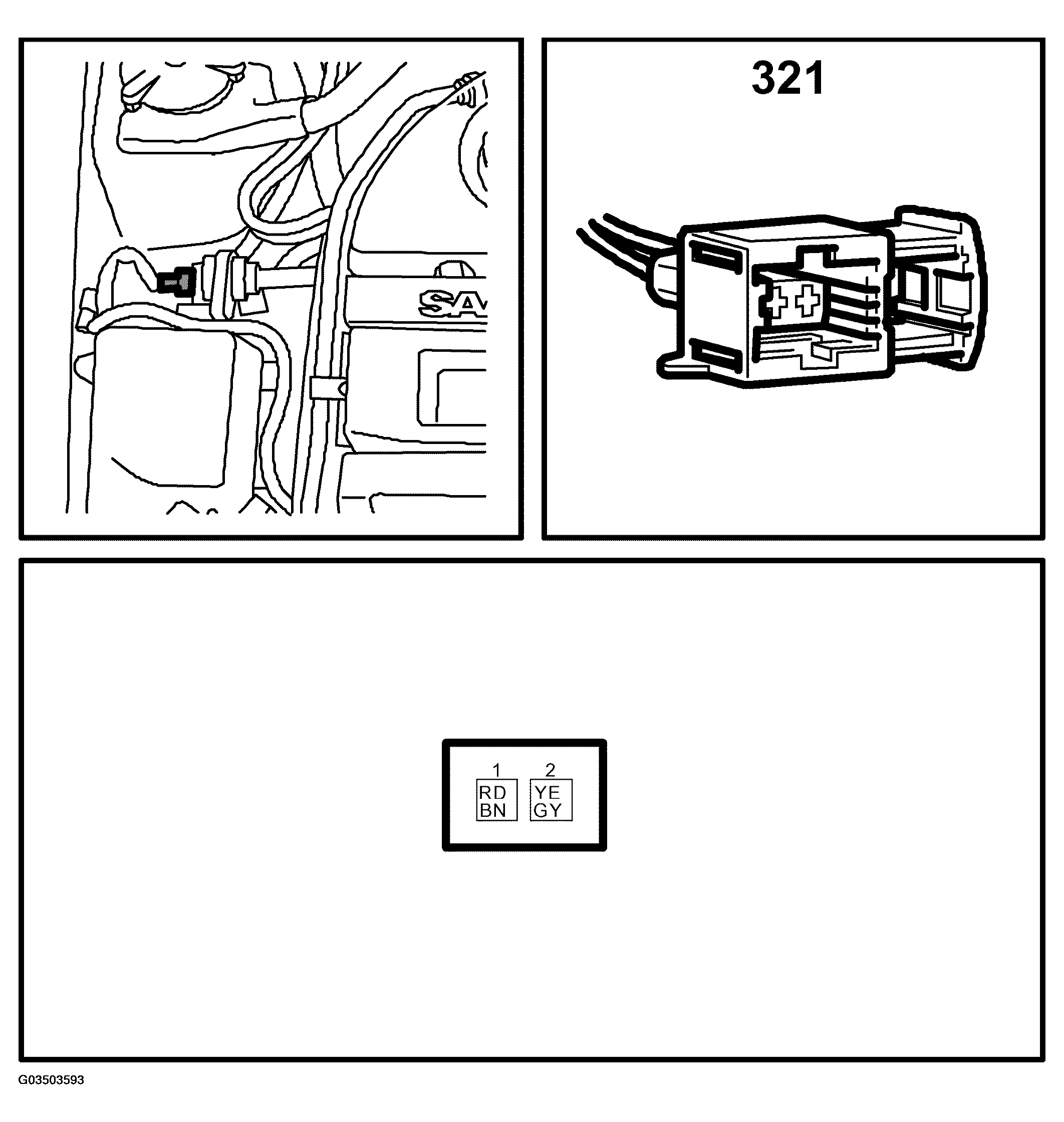

Fig 1: Identifying Components Location (Purge Valve, EVAP Canister (321))
G03503593
