Solenoid valve, EVAP shut -off: Dismantling

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the car.

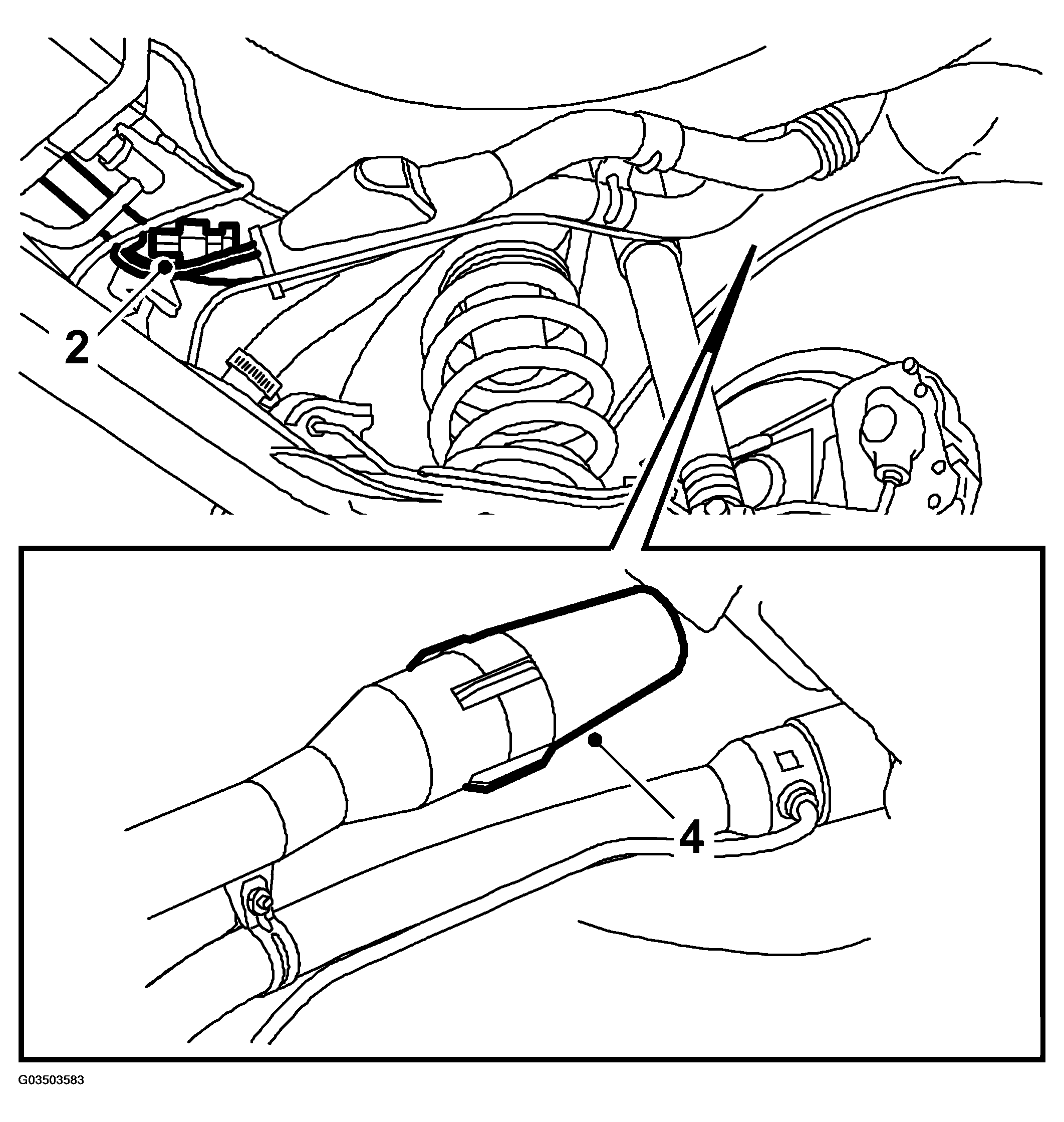

    Fig 1: Illustration For Steps 2-4
    G03503583
  2. Detach the shut-off valve hose from the EVAP canister.
  3. Lower the car slightly.
  4. Clean (using compressed air is necessary) and remove the white cover over the shut -off valve.
  5. Unplug the connector and lift the valve upwards.

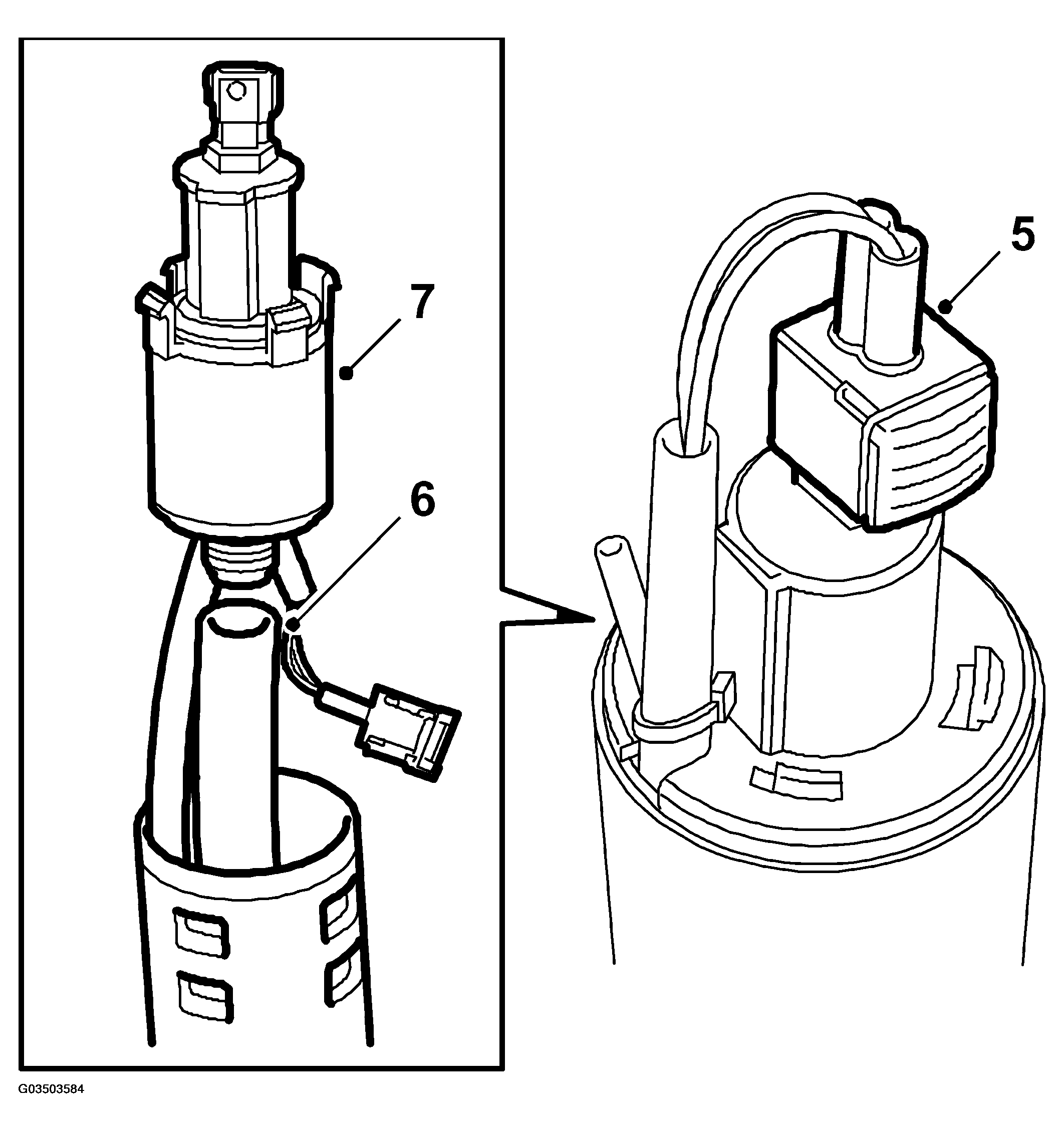

    Fig 2: Illustration For Steps 5,7
    G03503584
  6. Detach the hose connection from the valve.
  7. Remove the valve.
