To Fit

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

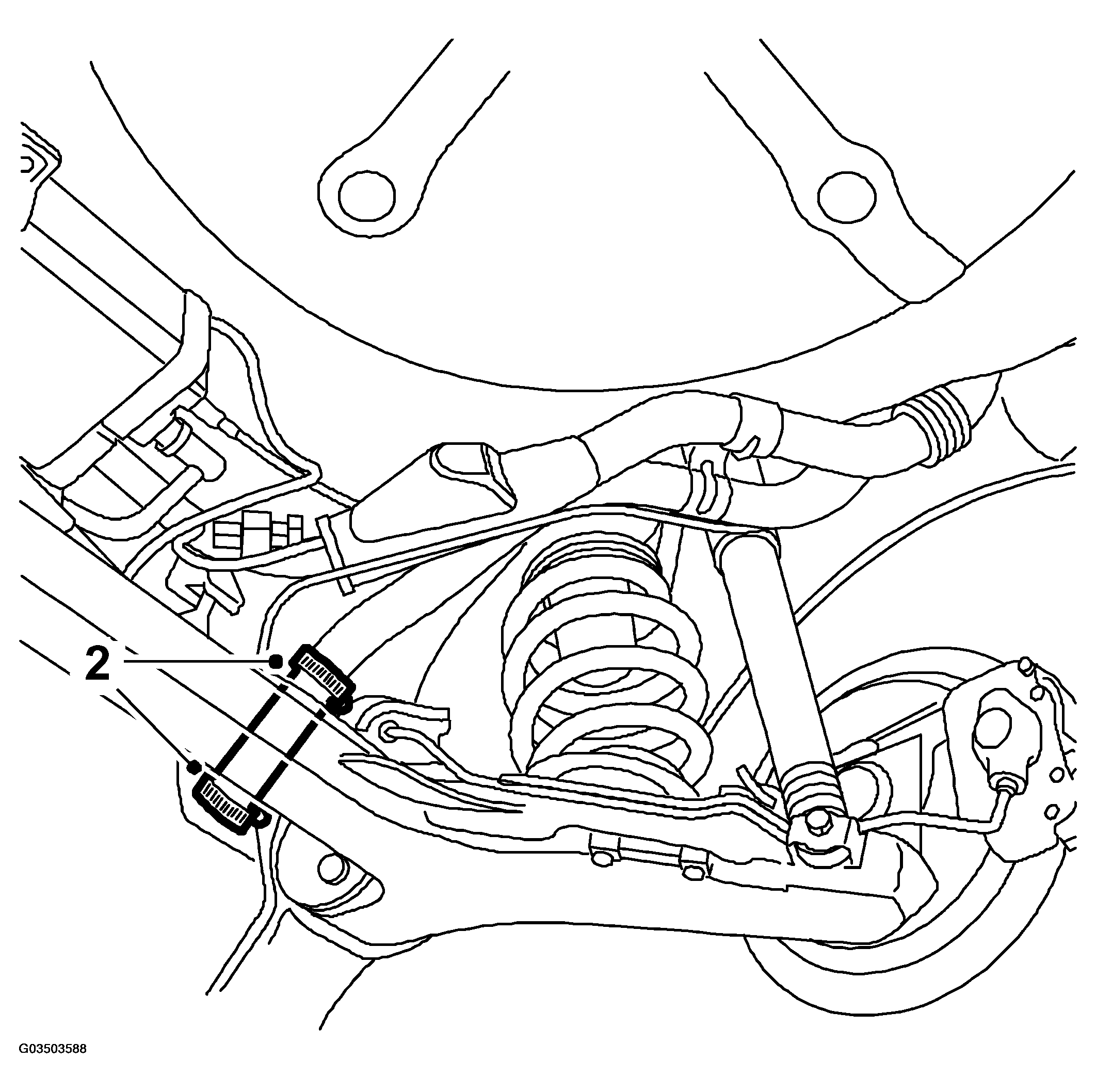

Fig 1: Illustration For Steps 2
G03503588
  1. Fit a new hose. Apply a thin coat of petroleum jelly (vaseline) to the ends of the pipe to assist fitting.
  2. Tighten the hose clamps.

    Tightening torques

    hose clamps 2,0 N.m (1,4 lbf ft)

  3. Lower the car to the floor.
