Hose, fuel filler pipe: Dismantling

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Check the fuel level in the tank and, if necessary, drain to a lower level.

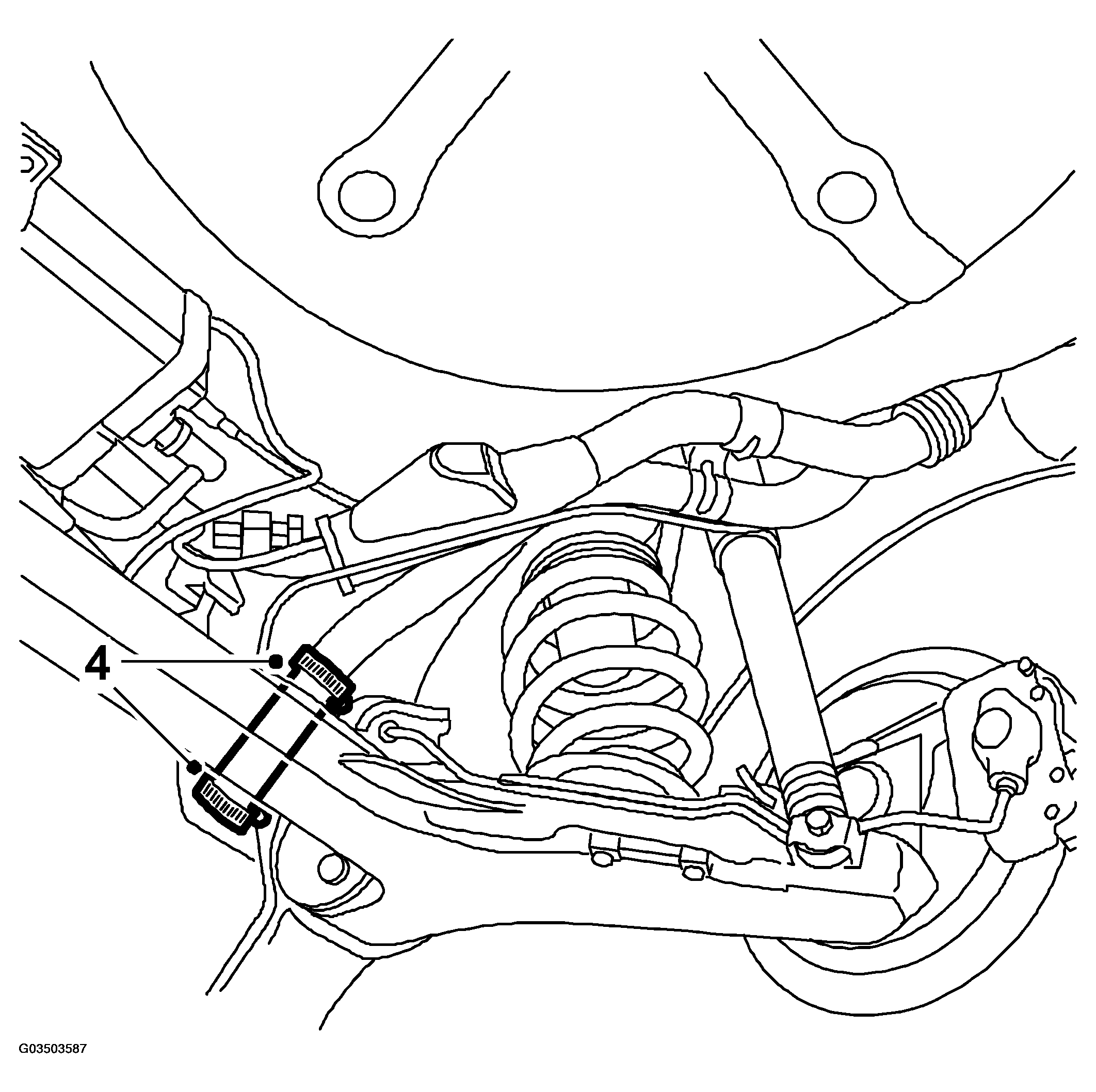

    Fig 1: Illustration For Steps 4
    G03503587
    IMPORTANT: The tank must never be drained by suction through the filler pipe as this will damage the non -return valve!
  2. Drive the car on to a lift and raise it.
  3. Raise the car.
  4. Undo the hose clamps and detach the hose from the tank and the filler pipe.
