Hose, EVAP shut-off valve: Dismantling

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the air vent pipe from the car.

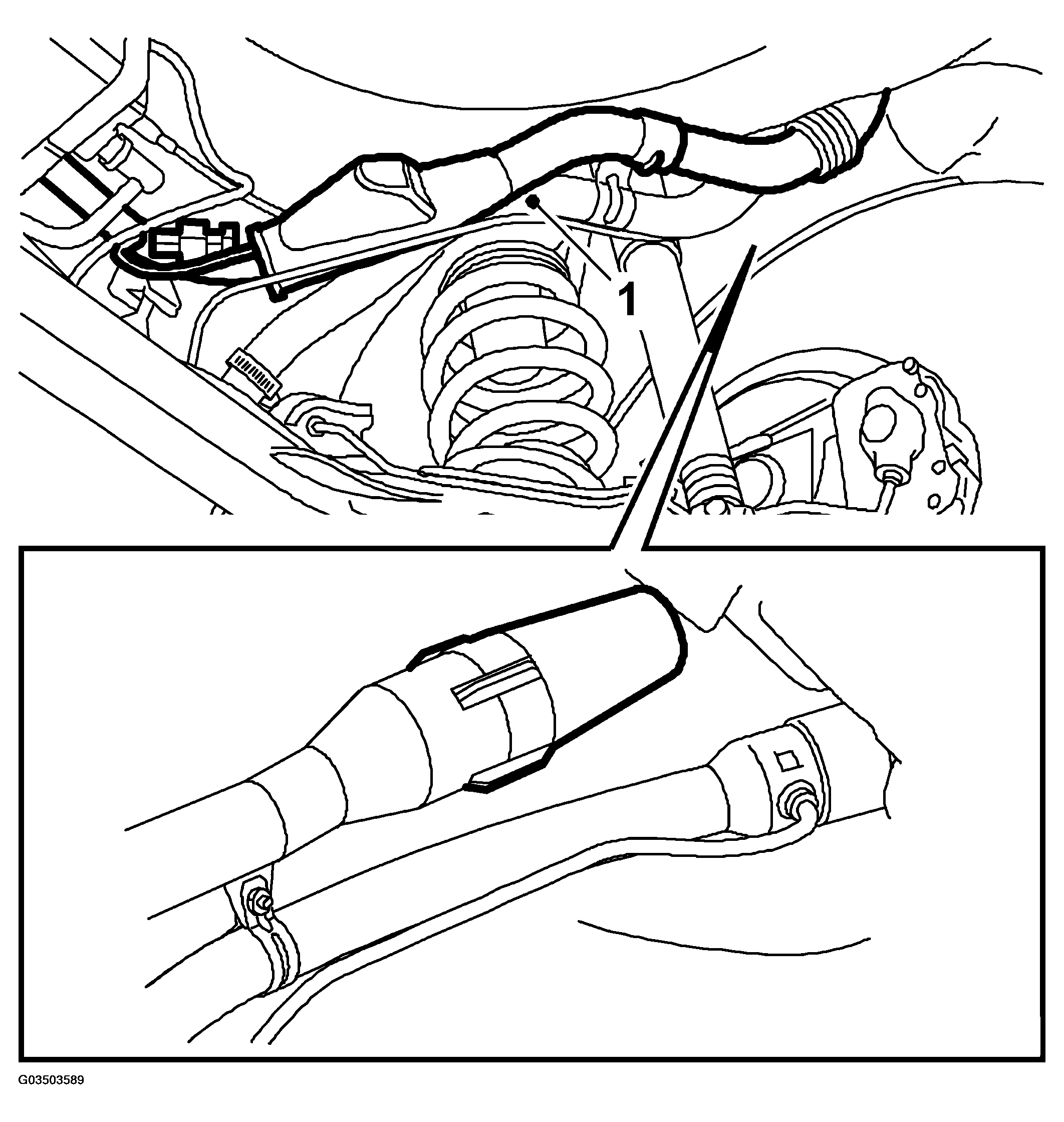

    Fig 1: Illustration For Steps 1
    G03503589
  2. Remove the shut -off valve and hose clamp from the hose.

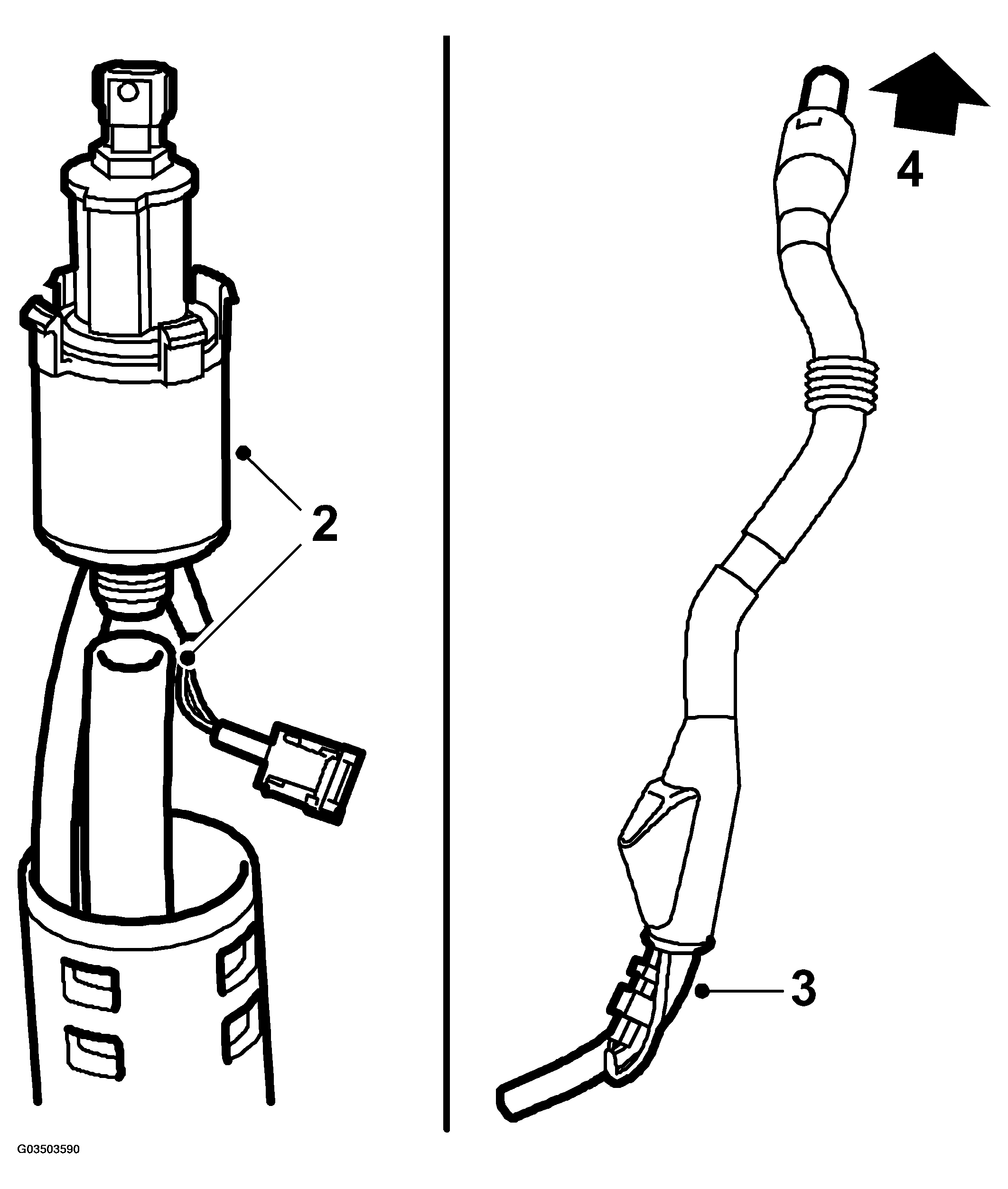

    Fig 2: Illustration For Steps 2-4
    G03503590
  3. Remove the seal from the bottom end of the vent pipe.
  4. Hold on to the cable while pulling out the hose from the end of the shut-off valve.
