To Fit

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

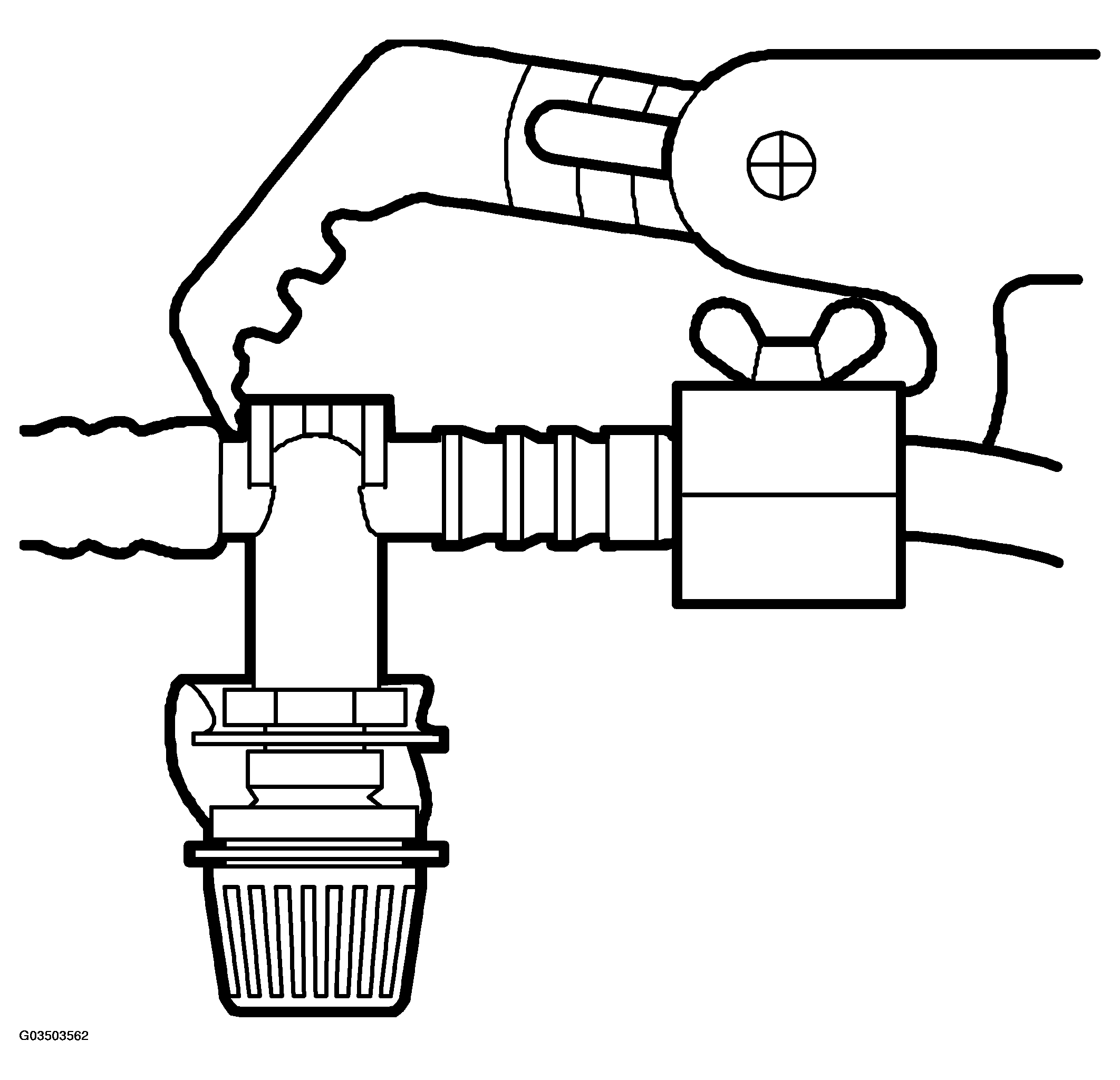

Fig 1: Installing Service Port
G03503562
  1. Press the purge line on to the service port using tool 83 94 546.
  2. Connect the service port to the rubber hose on the EVAP purge valve.

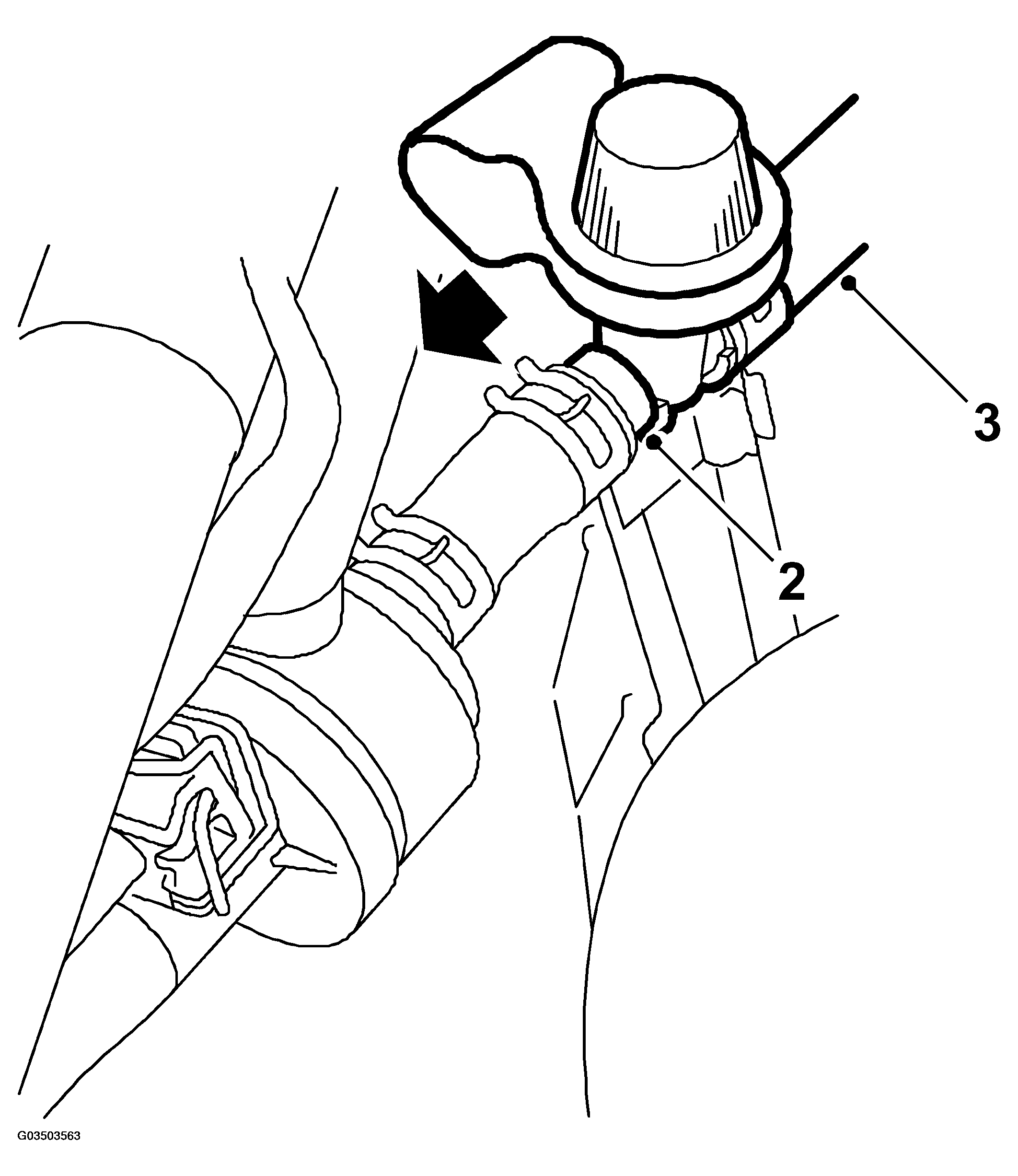

    Fig 2: Illustration For Steps 2-3
    G03503563
  3. Secure the purge line with the clip.
  4. Pressurize the system and check for any leaks in the service port installation.
