Fitting a service port: Dismantling

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drive the car on to a lift and raise it.

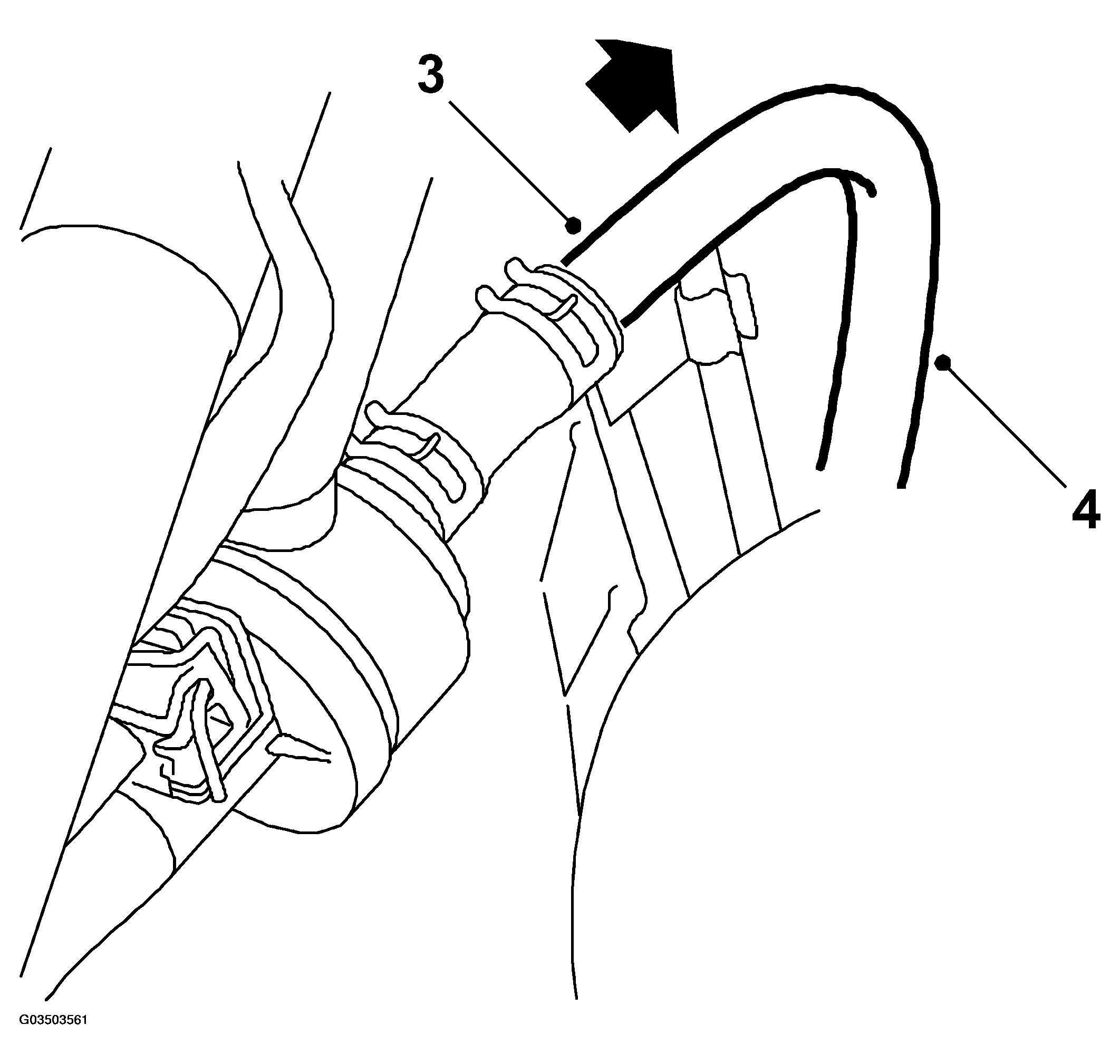

    Fig 1: Illustration For Steps 3-4
    G03503561
  2. Open the bonnet.
  3. Detach the purge line from the rubber hose on the EVAP purge valve.
  4. Detach the purge line from the securing clip.
