To Fit

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

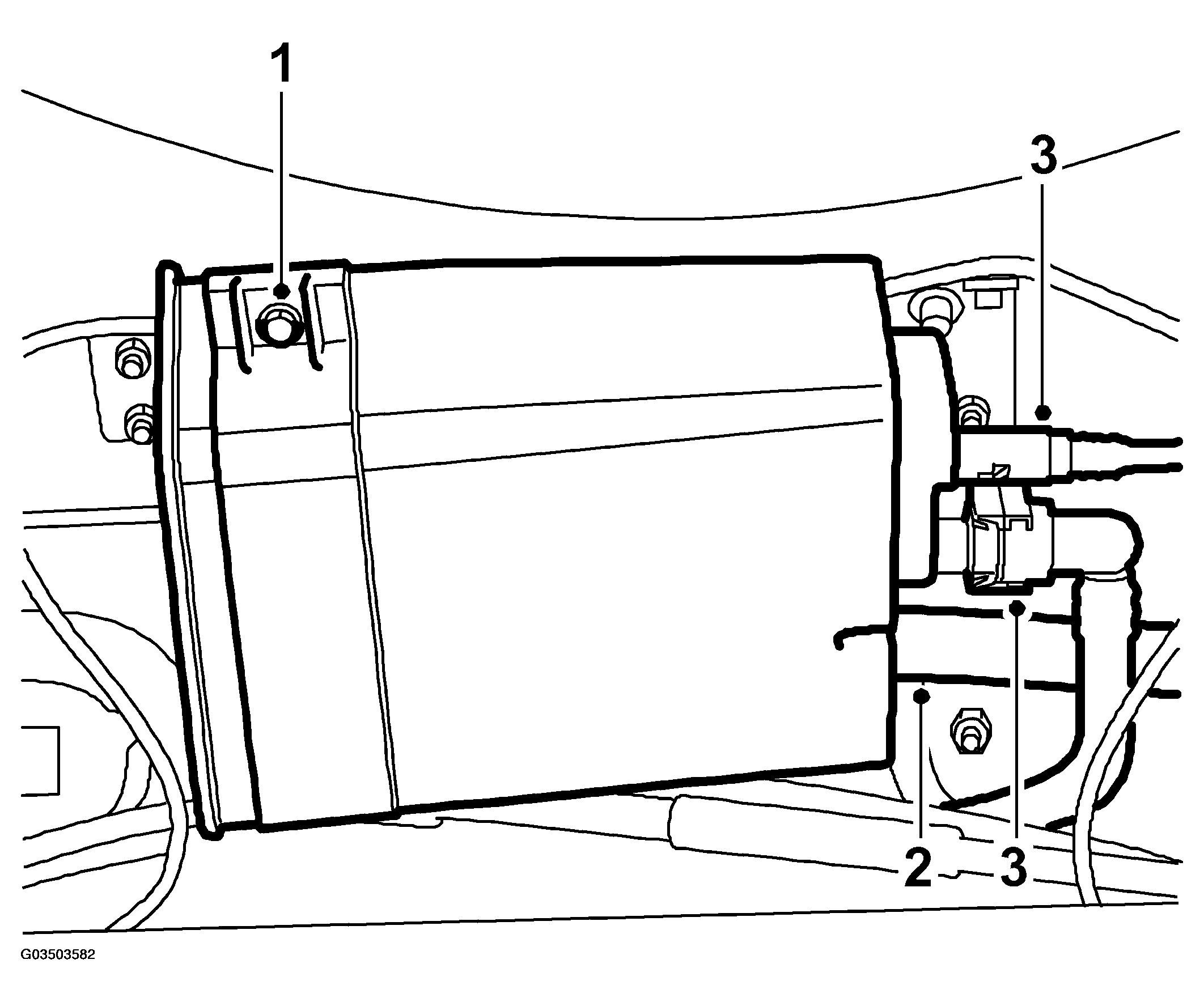

Fig 1: Illustration For Steps 1-3
G03503582
  1. Position and fit the EVAP canister, making sure it hooks correctly on to the holder.
  2. Connect the shut-off valve hose to the EVAP canister.
  3. Connect the line from the fuel tank and then the line to the EVAP purge valve.
  4. Lower the car to the floor.
