Evaporative emission canister: Dismantling

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the car.

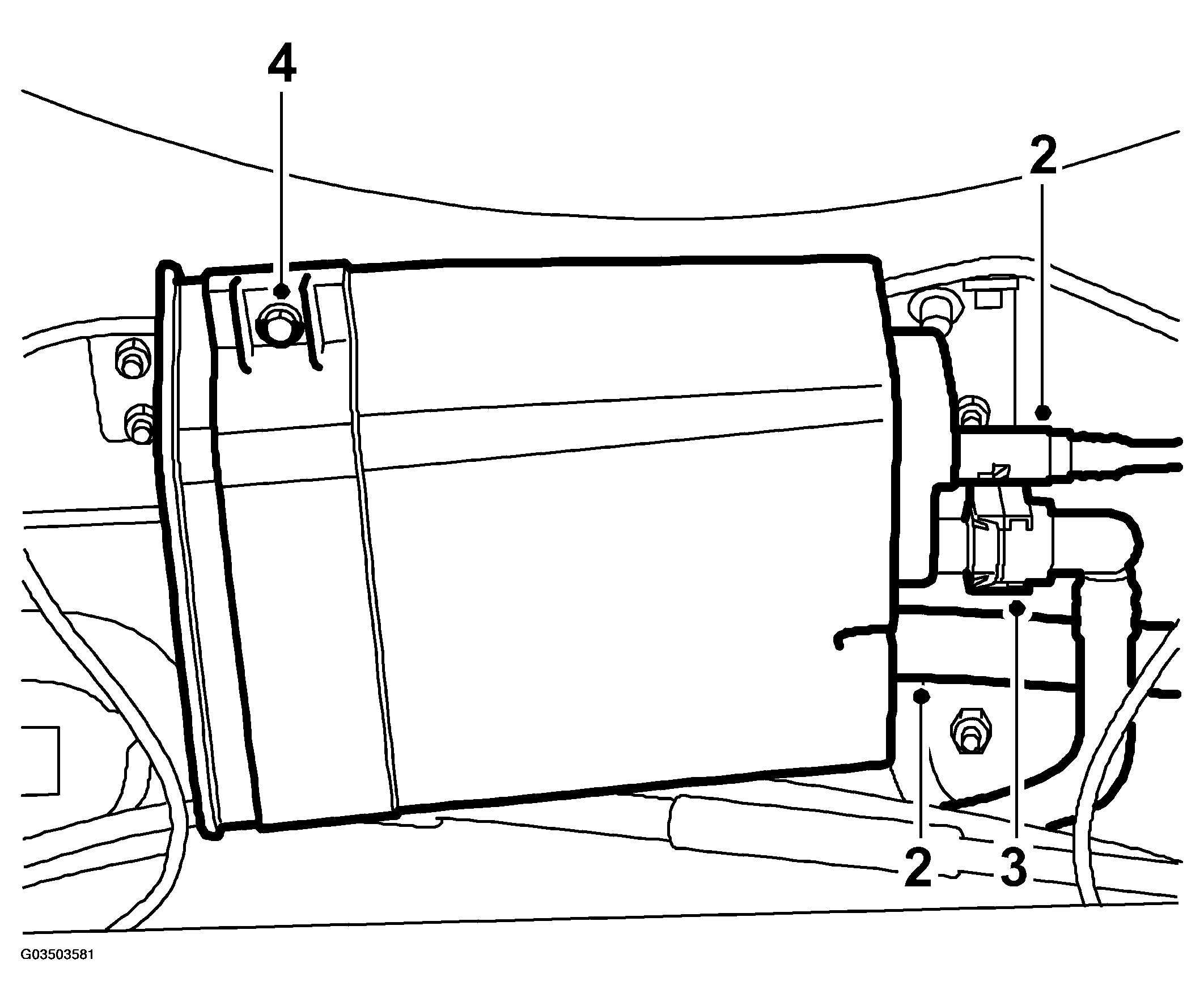

    Fig 1: Illustration For Steps 2-4
    G03503581
  2. Detach the purge line and the shut-off valve hose from the EVAP canister.
  3. Detach the line from the fuel tank to the EVAP canister.
    1. 3.a. Press the connection inwards towards the EVAP canister in the direction of the connection.
    2. 3.b. Compress the ring so that the catches are bent upwards.
    3. 3.c. Release the connection by detaching it from the connector pipe on the EVAP canister.
  4. Undo the screw and remove the EVAP canister.
