To Fit

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

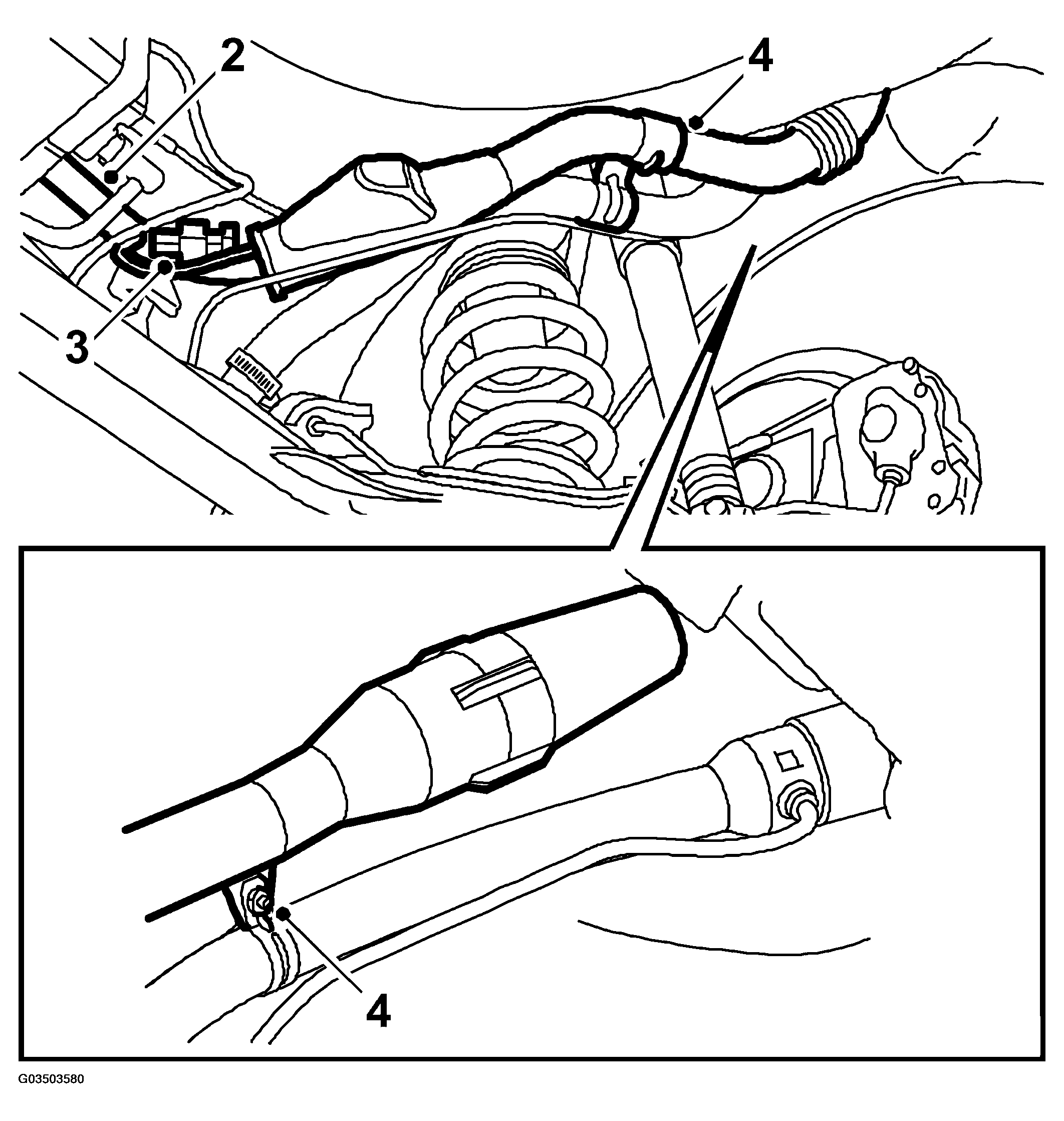

Fig 1: Illustration For Steps 2-4
G03503580
  1. First, fit the smaller clamp (without tightening it) and then the larger one.
    IMPORTANT: The plastic screw on the bottom clamp is a safety detail and must always be changed every time it is removed/fitted.
  2. Connect the shut-off valve hose to the EVAP canister.
  3. Spray with Kontakt 61 and plug in the connector to the shut-off valve.
  4. Tighten the clamps.

    Tightening torques

    plastic screw 1,8 N.m (1,3 lbf ft)

  5. Lower the car to the floor.
