To fit
WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

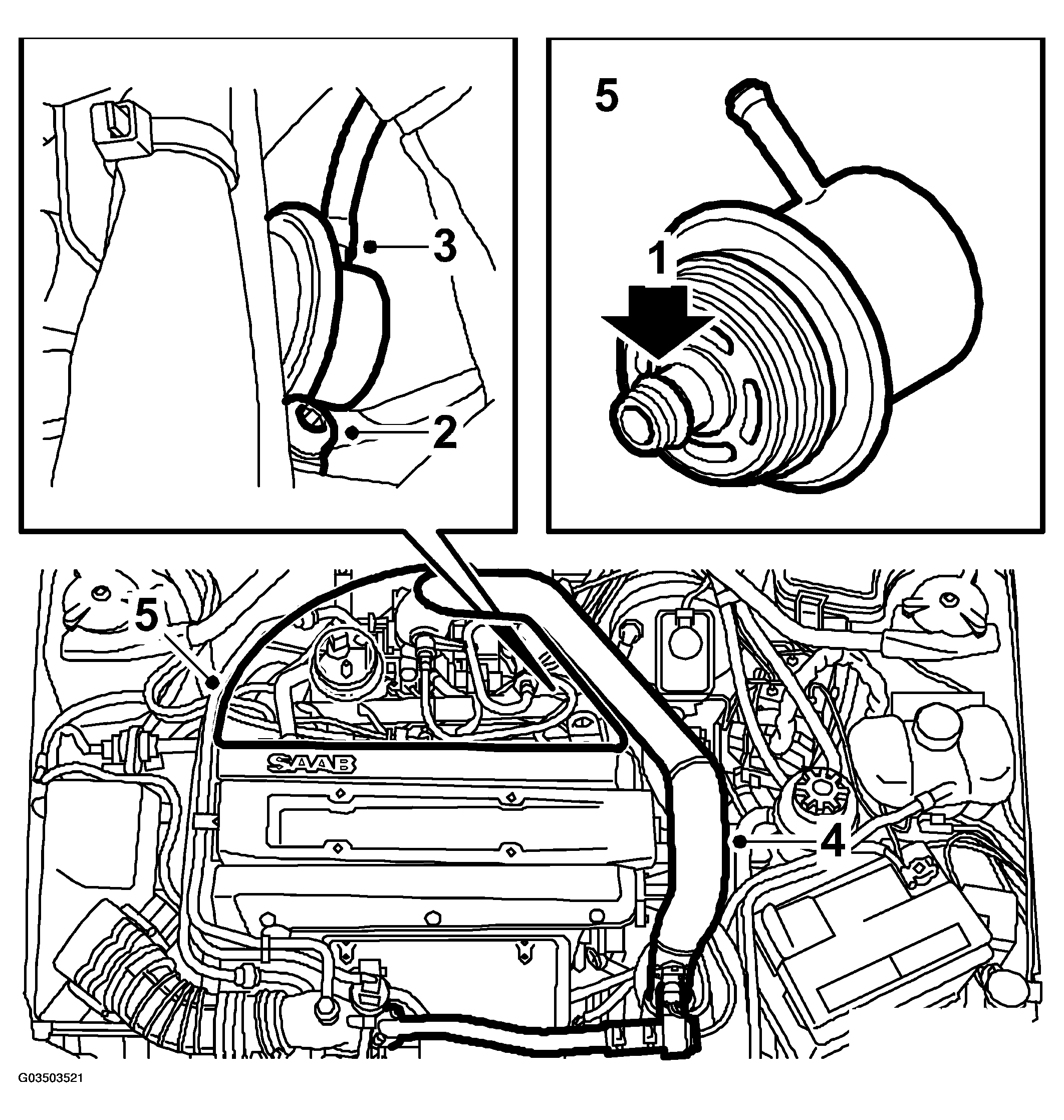

- Lubricate the fuel pressure regulator O-ring with acid-free vaseline, part no. 30 06 665.
- Fit the regulator to the fuel rail and tighten the clamp.
- Fit the regulator vacuum hose.
- Fit the charge air pipe with connector and hose.
Man: Connect the venturi hose to the charge air pipe.
- Start the engine and check for leaks.
- Fit the top engine cover.
