Power Brake Booster: Installation
WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

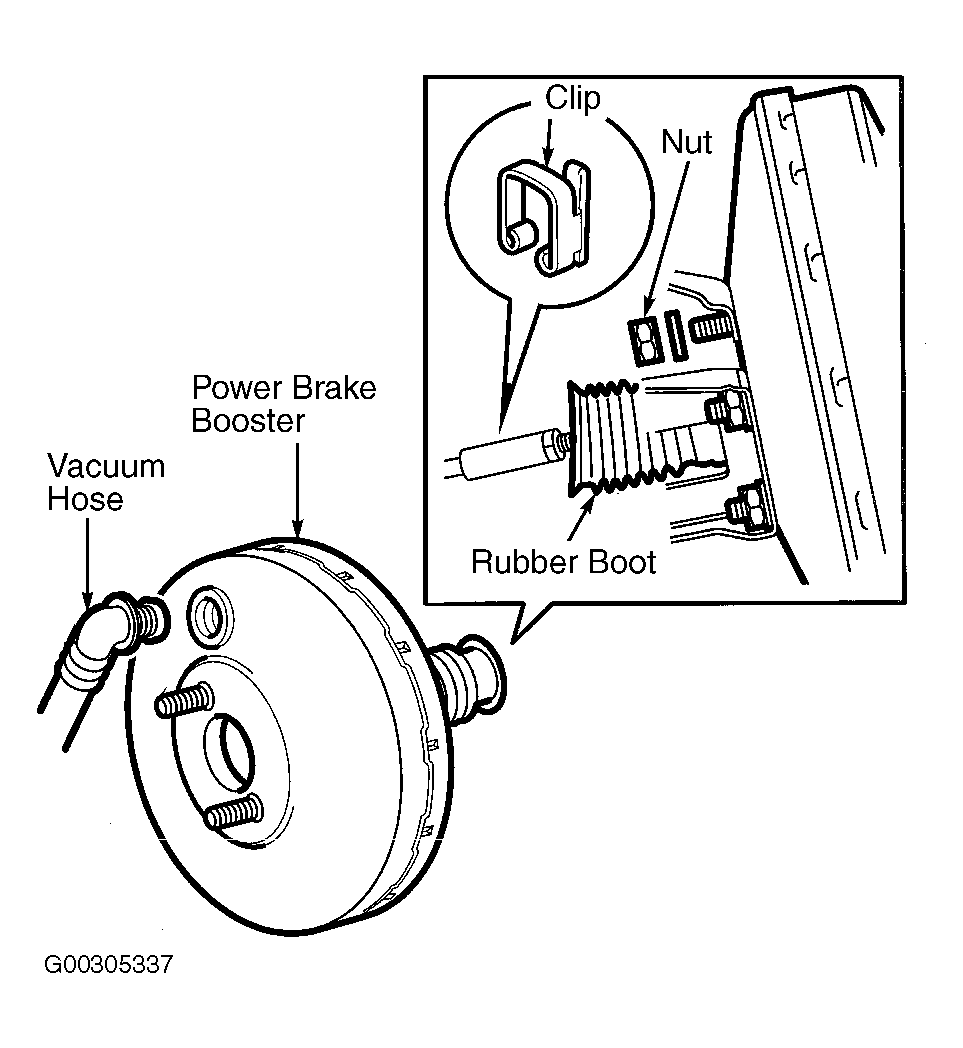

- Place the brake booster unit into the bracket and tighten the 4 retaining nuts. See Figure .
- Install the clip on the pushrod and the rubber boot to the bulkhead partition.

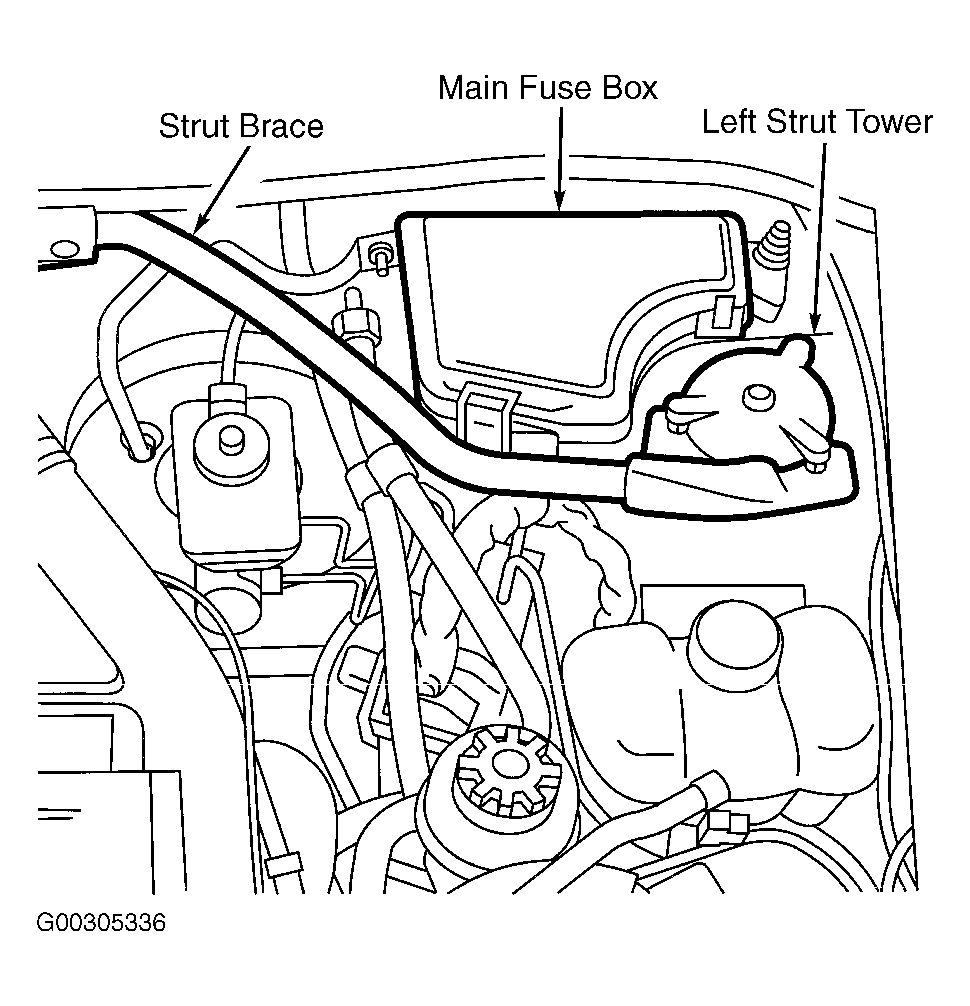

- Install the main fuse box in place. See Figure .
- Install the vacuum hose.
- Install the master cylinder. See MASTER CYLINDER .
- Install the brace between the MacPherson struts.
- Bleed the brake system. See BRAKE SYSTEM under BLEEDING.
