Parking Brake Lever: Removal

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the car.
  2. Remove the return springs from the levers on the right and left side.
  3. Press out the rear locating sleeve from the holders on the right and left sides.
  4. Press out the front locating sleeve from the holder on the right side.
  5. Remove the cable from the levers.
  6. Remove the nuts from the heat shield plate in front of the tank. See Fig 1 .
  7. Remove the adjusting nut from the pull rod and move aside the cable adjuster. Measure the thread length on the pull rod.
  8. Remove the rubber boot.
  9. Lower the car and remove the driver's front seat and the center console. See FRONT SEAT  & CENTER CONSOLE  .
  10. Remove the 2 retaining screws for the parking brake lever as well as the cable terminal for the parking brake switch. See Fig 2 . Lift out the parking brake.

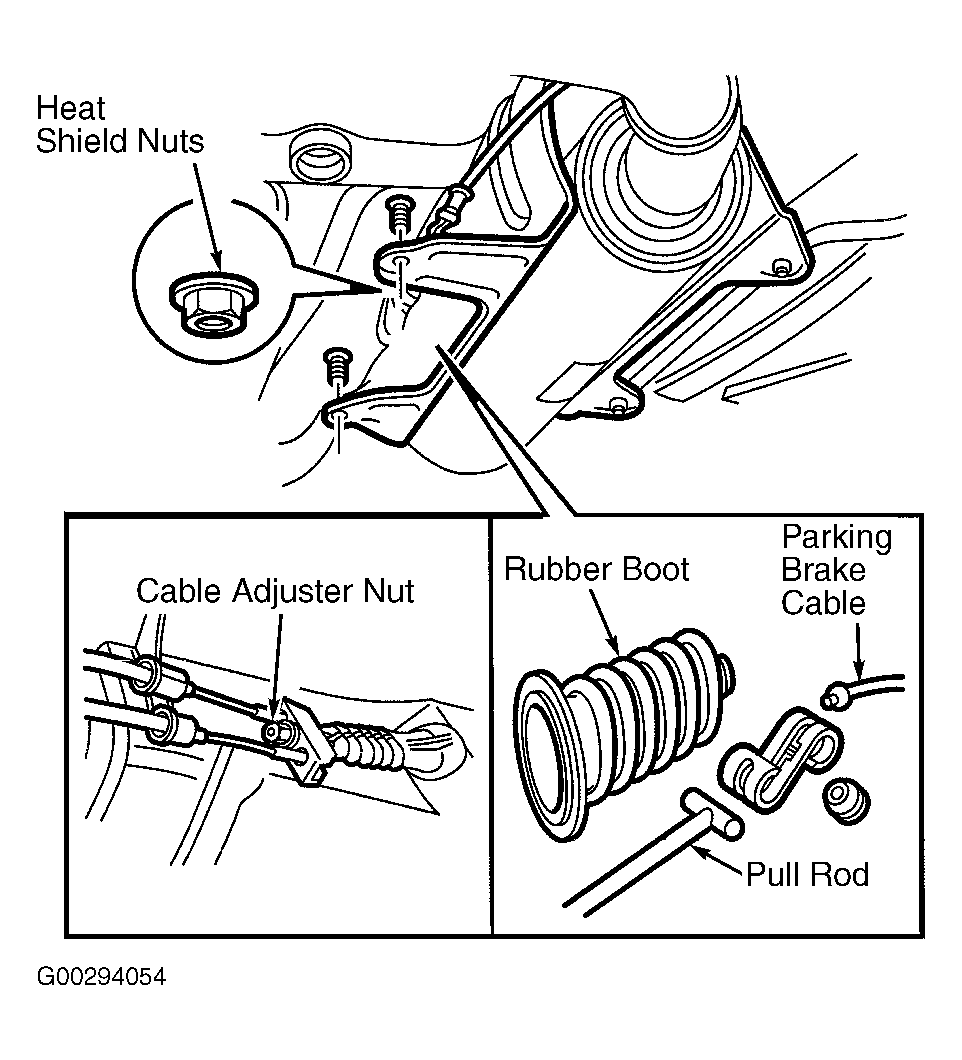

Fig 1: Identifying Parking Brake Lever Components
G00294054Courtesy of SAAB-SCANIA OF AMERICA, INC.

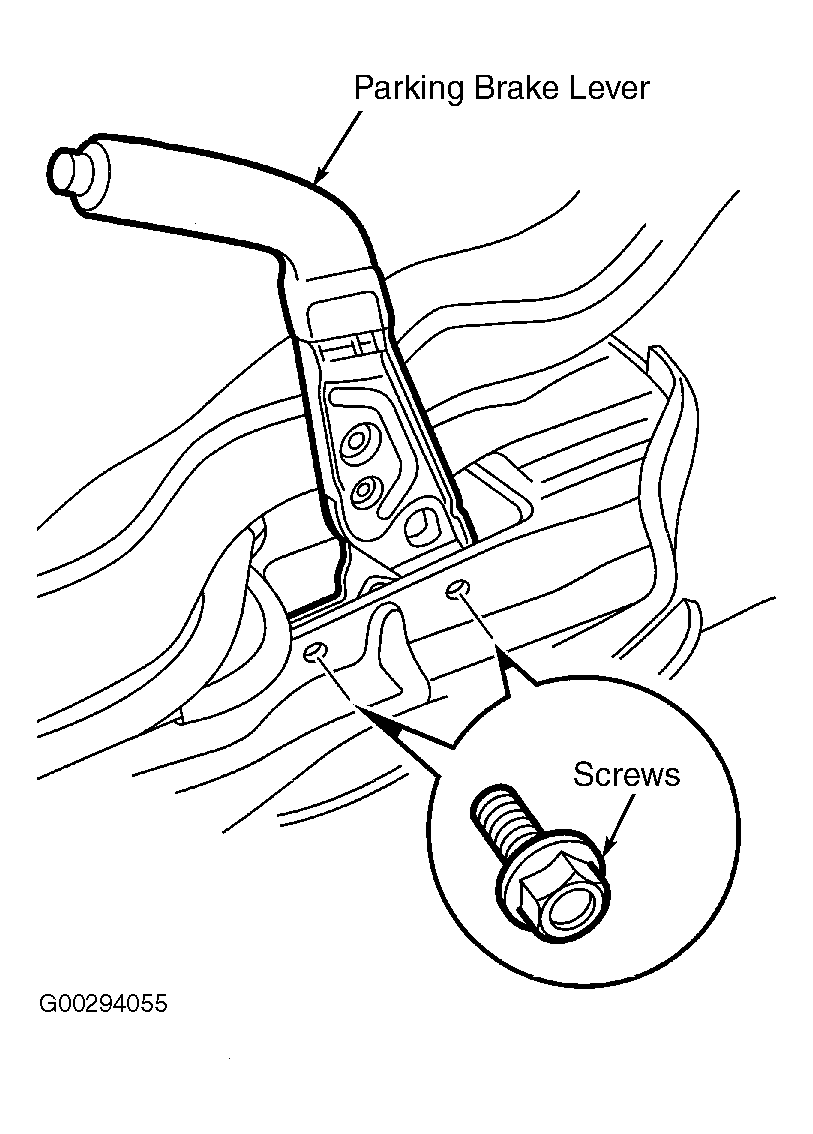

Fig 2: Removing Parking Brake Lever
G00294055Courtesy of SAAB-SCANIA OF AMERICA, INC.
